Schneider Electric

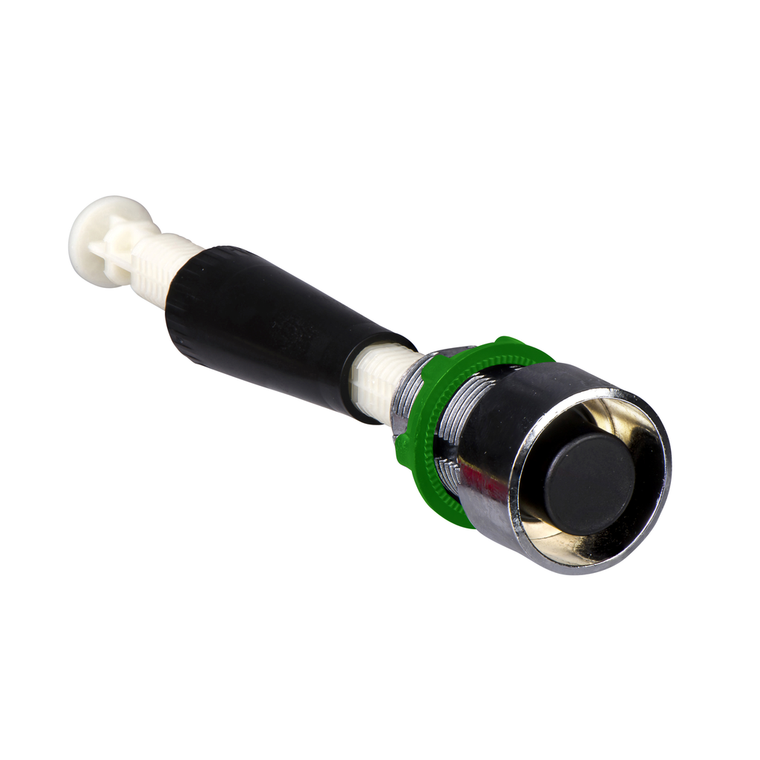

Schneider Electric XB4BA942 Reset Xb4B Pushbutton

SKU:

XB4BA942

UPC:

3389110102161

MPN:

Condition:

New

Activating Distance:

130-257 mm

Shape Of Signaling Unit Head:

round

Range Of Product:

Harmony XB4

Ambient Air Temperature For Storage:

-40-70 °C

Standards:

EN/IEC 60947-5-5 || UL 508 || EN/IEC 60947-5-4 || JIS C8201-5-1 || EN/IEC 60947-1 || CSA C22.2 No 14 || EN/IEC 60947-5-1 || JIS C8201-1

Ik Degree Of Protection:

IK03 IEC 50102

Ambient Air Temperature For Operation:

-40-70 °C

Protective Treatment:

TH

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Net Weight:

0.071 kg

Bezel Material:

chromium plated metal

Circularity Profile:

ENVEOLI1808008EN

Mounting Diameter:

22 mm

Warranty:

18 months

Environmental Disclosure:

ENVPEP1808008EN

Operator Profile:

red flush, unmarked

Operating Travel:

14 mm

Product Or Component Type:

manual overload reset push-button

Resistance To High Pressure Washer:

7000000 Pa 55 °C 0.1 m

Device Short Name:

XB4

Product Certifications:

CSA || DNV || LROS (Lloyds register of shipping) || UL Listed || BV || GL

California Proposition 65:

WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Sustainable Offer Status:

Green Premium product

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Mercury Free:

Yes

Electrical Shock Protection Class:

class I IEC 60536

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Toxic Heavy Metal Free:

Yes

Mechanical Durability:

5000000 cycles

Ip Degree Of Protection:

IP66 IEC 60529

Nema Degree Of Protection:

NEMA 13 || NEMA 4X

Fixing Collar Material:

zamak

Reach Free Of Svhc:

Yes

Rohs Exemption Information:

Yes

China Rohs Regulation:

X

Head Type:

standard
