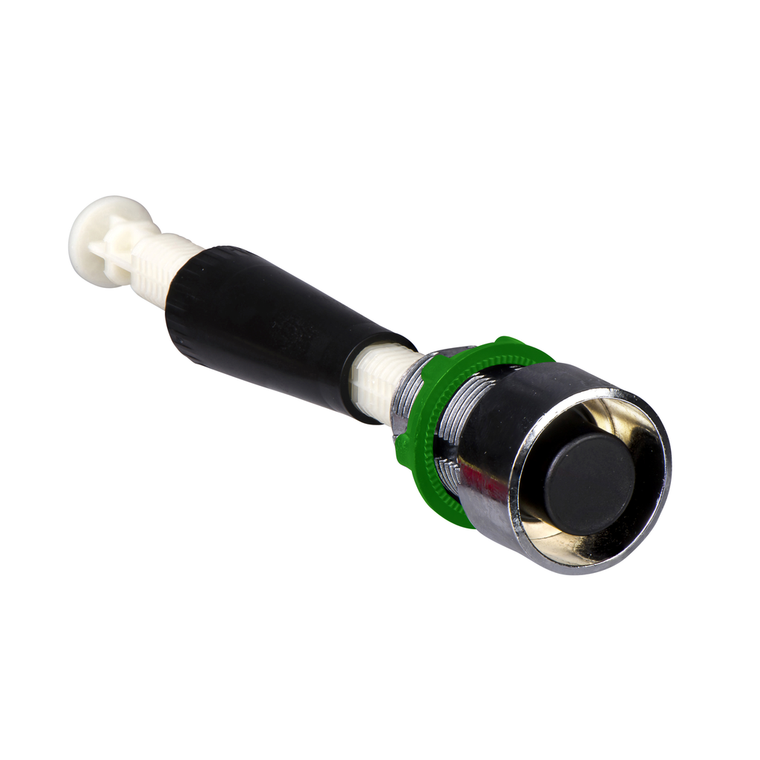

Schneider Electric XB4BA962 Reset Xb4B Pushbutton

(No reviews yet) Write a Review

Write a Review

Schneider Electric XB4BA962 Reset Xb4B Pushbutton

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

XB4BA962

UPC:

3389110102208

MPN:

Condition:

New

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Shape Of Signaling Unit Head:

round

Head Type:

standard

Circularity Profile:

ENVEOLI1808008EN

Ip Degree Of Protection:

IP66 IEC 60529

China Rohs Regulation:

X

Sustainable Offer Status:

Green Premium product

Operating Travel:

14 mm

Environmental Disclosure:

ENVPEP1808008EN

Range Of Product:

Harmony XB4

Protective Treatment:

TH

Rohs Exemption Information:

Yes

Ik Degree Of Protection:

IK03 IEC 50102

Device Short Name:

XB4

Product Or Component Type:

manual overload reset push-button

Product Certifications:

BV || LROS (Lloyds register of shipping) || GL || DNV || CSA || UL Listed

Reach Free Of Svhc:

Yes

Activating Distance:

130-257 mm

Standards:

UL 508 || EN/IEC 60947-5-5 || JIS C8201-5-1 || EN/IEC 60947-1 || EN/IEC 60947-5-4 || EN/IEC 60947-5-1 || CSA C22.2 No 14 || JIS C8201-1

Ambient Air Temperature For Storage:

-40-70 °C

Ambient Air Temperature For Operation:

-40-70 °C

Toxic Heavy Metal Free:

Yes

Operator Profile:

blue flush, unmarked

California Proposition 65:

WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Warranty:

18 months

Mercury Free:

Yes

Mechanical Durability:

5000000 cycles

Electrical Shock Protection Class:

class I IEC 60536

Fixing Collar Material:

zamak

Bezel Material:

chromium plated metal

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Nema Degree Of Protection:

NEMA 13 || NEMA 4X

Resistance To High Pressure Washer:

7000000 Pa 55 °C 0.1 m

Net Weight:

0.071 kg

Mounting Diameter:

22 mm
