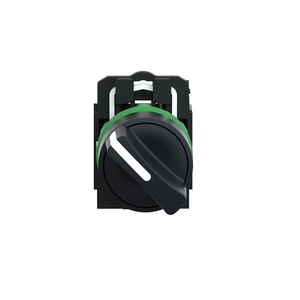

Schneider Electric XB4BD21 Selector Switch

Schneider Electric XB4BD21 Selector Switch

Schneider Electric
SKU:
XB4BD21
|
UPC:
3389110887075
$51.00
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description
Harmony 22 mm modular push buttons, selector switches, pilot lights are designed for industry. This range combines simplicity of setup, flexibility and a robust construction. An ingenious locking system consisting of a snap fit head and body that can be tightened with a single screw but still ensuring an easy and yet secure mounting. Harmony XB4/ZB4 are 22 mm chromium plated metal modular push buttons, selector switches and pilot lights connecting to fully metal mounting collar. The operators can be purchased as complete operators or various modules that can be assembled to meet the user’s specific requirement. Harmony XB5/ZB5 are 22 mm plastic modular push buttons, selector switches, pilot lights. The operator can have a round and square plastic bezel. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments. The contacts can be used for low load electrical contact and high power applications. Shake proof connection screws make periodic retightening unnecessary. A complete set of accessories to provide a solution for applications where exposure to high pressure cleaning, dust and extreme temperatures is an everyday occurrence. These harmony 22mm push buttons are used by machine manufacturers (automotive, textiles, timber) and control system panel builders. Certified and approved for meeting requirements throughout all continents: EN/IEC, UL, NEMA, CSA, CCC, Gost, JIS and many more. They have UL and CE markings and have ratings up to IP66 and IP69K.
Additional Information
Terminals Description Iso N°1:
(13-14)NO
California Proposition 65:
WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Product Or Component Type:
selector switch
China Rohs Regulation:
X
Sustainable Offer Status:
Green Premium product
Vibration Resistance:
5 gn 2-500 Hz)IEC 60068-2-6
Standards:
CSA C22.2 No 14 || IEC 60947-5-1 || JIS C8201-5-1 || IEC 60947-1 || IEC 60947-5-4 || IEC 60947-5-5 || UL 508 || JIS C8201-1
Contacts Material:
silver alloy (Ag/Ni)
Width:
30 mm
Product Certifications:
LROS (Lloyds register of shipping) || BV || UL || GL || CSA || DNV
Operator Position Information:
2 positions 90°
Depth:
68 mm
Device Presentation:
complete product
Fixing Collar Material:
zamak
Mechanical Durability:
1000000 cycles
[Ith] Conventional Free Air Thermal Current:
10 A IEC 60947-5-1
[Uimp] Rated Impulse Withstand Voltage:
6 kV IEC 60947-1
Electrical Durability:
1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.2
Contact Operation:
slow-break
Reach Free Of Svhc:
Yes
Electrical Reliability:
λ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4 || λ < 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4
Ambient Air Temperature For Operation:
-40-70 °C
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Sale Per Indivisible Quantity:
1
Positive Opening:
without
Head Type:
standard
[Ui] Rated Insulation Voltage:
600 V 3)IEC 60947-1
Rohs Exemption Information:
Yes
Shock Resistance:
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Nema Degree Of Protection:
NEMA 13 || NEMA 4X
Circularity Profile:
ENVEOLI1808008EN
Mercury Free:
Yes
Tightening Torque:
0.8-1.2 N.m IEC 60947-1
[Ie] Rated Operational Current:
3 A 240 V, AC-15, A600 IEC 60947-5-1 || 6 A 120 V, AC-15, A600 IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
Range Of Product:
Harmony XB4
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Type Of Operator:
stay put
Resistance To High Pressure Washer:
7000000 Pa 55 °C 0.1 m
Bezel Material:
chromium plated metal
Environmental Disclosure:
ENVPEP1808008EN
Warranty:
18 months
Toxic Heavy Metal Free:
Yes
Shape Of Screw Head:
cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm
Overvoltage Category:
class I IEC 60536
Net Weight:
0.095 kg
Protective Treatment:
TH
Height:
47 mm
Contacts Type And Composition:
1 NO
Connections - Terminals:
screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1
Mounting Diameter:
22.5 mm
Contacts Usage:
standard contacts
Shape Of Signaling Unit Head:
round
Ambient Air Temperature For Storage:
-40-70 °C
Torque Value:
0.14 N.m NO changing electrical state
Device Short Name:
XB4
Short-Circuit Protection:
10 A cartridge fuse gG IEC 60947-5-1
Ip Degree Of Protection:
IP69 || IP69K || IP67 IEC 60529
Operator Profile:
black standard handle
