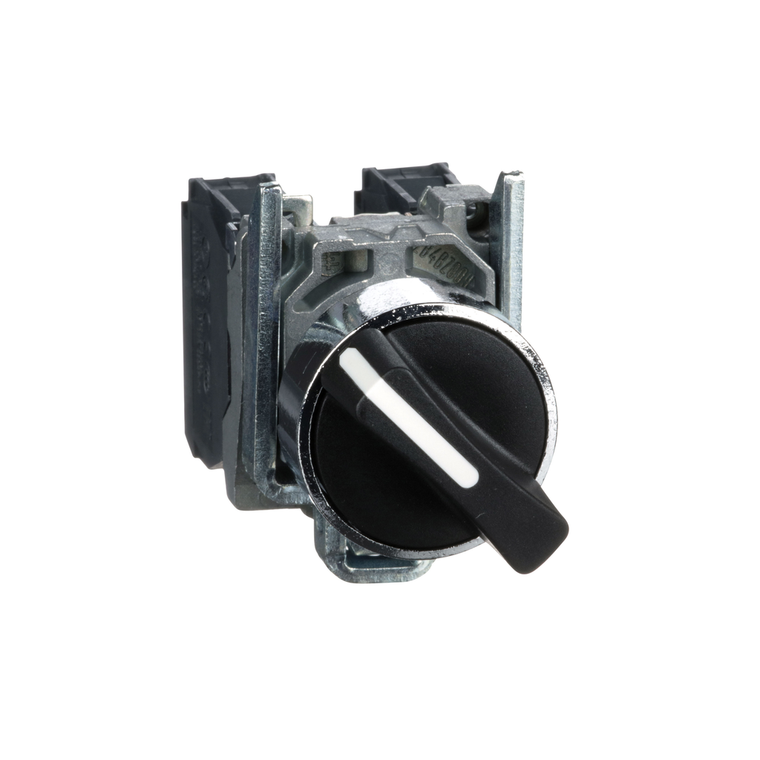

Schneider Electric XB4BD25 Selector Switch
Schneider Electric
$49.98
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Harmony 22 mm modular push buttons, selector switches, pilot lights are designed for industry. This range combines simplicity of setup, flexibility and a robust construction. An ingenious locking system consisting of a snap fit head and body that can be tightened with a single screw but still ensuring an easy and yet secure mounting. Harmony XB4/ZB4 are 22 mm chromium plated metal modular push buttons, selector switches and pilot lights connecting to fully metal mounting collar. The operators can be purchased as complete operators or various modules that can be assembled to meet the user’s specific requirement. Harmony XB5/ZB5 are 22 mm plastic modular push buttons, selector switches, pilot lights. The operator can have a round and square plastic bezel. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments. The contacts can be used for low load electrical contact and high power applications. Shake proof connection screws make periodic retightening unnecessary. A complete set of accessories to provide a solution for applications where exposure to high pressure cleaning, dust and extreme temperatures is an everyday occurrence. These harmony 22mm push buttons are used by machine manufacturers (automotive, textiles, timber) and control system panel builders. Certified and approved for meeting requirements throughout all continents: EN/IEC, UL, NEMA, CSA, CCC, Gost, JIS and many more. They have UL and CE markings and have ratings up to IP66 and IP69K.
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Net Weight:
- 0.105 kg
- Range Of Product:
- Harmony XB4
- Sustainable Offer Status:
- Green Premium product
- Contacts Usage:
- standard contacts
- Bezel Material:
- chromium plated metal
- Depth:
- 68 mm
- Width:
- 30 mm
- Mercury Free:
- Yes
- Connections - Terminals:
- screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1
- Environmental Disclosure:
- ENVPEP1808008EN
- Shape Of Screw Head:
- cross Philips no 1 || cross pozidriv No 1 || slotted flat à 4 mm || slotted flat à 5.5 mm
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Contact Operation:
- slow-break
- Protective Treatment:
- TH
- Mounting Diameter:
- 22 mm
- Height:
- 47 mm
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- [Ith] Conventional Free Air Thermal Current:
- 10 A IEC 60947-5-1
- Device Short Name:
- XB4
- China Rohs Regulation:
- X
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Product Or Component Type:
- selector switch
- Reach Free Of Svhc:
- Yes
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Head Type:
- standard
- Toxic Heavy Metal Free:
- Yes
- Mechanical Durability:
- 1000000 cycles
- [Uimp] Rated Impulse Withstand Voltage:
- 6 kV IEC 60947-1
- [Ui] Rated Insulation Voltage:
- 600 V 3)IEC 60947-1
- Fixing Collar Material:
- zamak
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Rohs Exemption Information:
- Yes
- Operator Position Information:
- 2 positions 90°
- Product Certifications:
- DNV || LROS (Lloyds register of shipping) || CSA || GL || UL || BV
- Tightening Torque:
- 0.8-1.2 N.m IEC 60947-1
- Type Of Operator:
- stay put
- Ip Degree Of Protection:
- IP69 || IP69K || IP67 IEC 60529
- Device Presentation:
- complete product
- Terminals Description Iso N°1:
- (13-14)NO || (21-22)NC
- Overvoltage Category:
- class I IEC 60536
- Torque Value:
- 0.14 N.m NO changing electrical state
- Positive Opening:
- with IEC 60947-5-1 appendix K
- Standards:
- IEC 60947-5-5 || JIS C8201-5-1 || UL 508 || IEC 60947-5-4 || IEC 60947-1 || CSA C22.2 No 14 || IEC 60947-5-1 || JIS C8201-1
- Operator Profile:
- black standard handle
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Contacts Material:
- silver alloy (Ag/Ni)
- Contacts Type And Composition:
- 1 NO + 1 NC
- Electrical Durability:
- 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.2
- Warranty:
- 18 months
- Ambient Air Temperature For Storage:
- -40-70 °C
- Short-Circuit Protection:
- 10 A cartridge fuse gG IEC 60947-5-1
- [Ie] Rated Operational Current:
- 3 A 240 V, AC-15, A600 IEC 60947-5-1 || 6 A 120 V, AC-15, A600 IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
- Electrical Reliability:
- λ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4 || λ < 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4
- Ambient Air Temperature For Operation:
- -40-70 °C
- Circularity Profile:
- ENVEOLI1808008EN
- Sale Per Indivisible Quantity:
- 1
- Shape Of Signaling Unit Head:
- round
