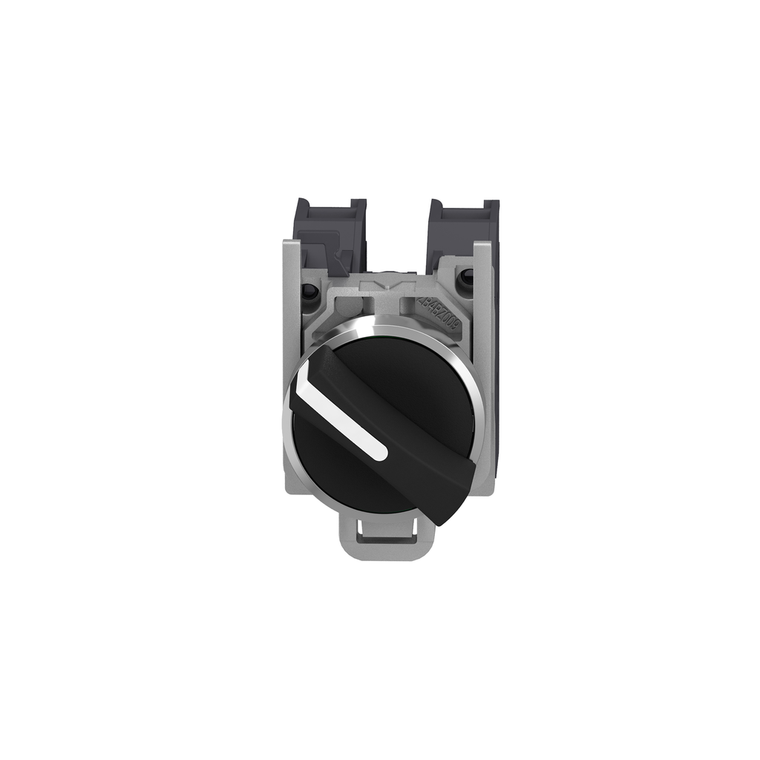

Schneider Electric XB4BD25GEX Aex Selector Switch 2 Pos. Stay Put

Schneider Electric XB4BD25GEX Aex Selector Switch 2 Pos. Stay Put

Schneider Electric
SKU:
XB4BD25GEX
|
UPC:
3606489485719
Availability:
Contact us to confirm availability and lead times.
$175.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
This product is part of the Harmony XB4 - ATEX D range, an offer of Ø 22mm metal pushbuttons, switches and pilot lights for explosive atmosphere. This complete selector switch comes with a black standard handle. This offer is specially designed for explosive atmosphere. It is designed for used in dust zone 21-22 and gas zone 1-2. It has 2 operating positions and operates with a stay-put mechanism. It has 1 NO and 1 NC contact with slow-break operation. This metal selector switch comes with chromium plated metal bezel. This offer is specially designed for applications in Oil and Gas industry as well as Food and beverage, car gas stations etc. It is an IP65 rated product and comes with INERIS 04ATEX9004U certification. It is easily installed into a standard 22mm diameter panel cut-outs and connected to control circuits with screw-clamp connections. The Harmony XB4 range offers innovative features for simple and efficient use. The Harmony XB4 - ATEX is the most comprehensive explosive Atmospheres range covering most applications.
Additional Information
Sustainable Offer Status:
Green Premium product
Mercury Free:
Yes
Mounting Diameter:
22 mm
Mechanical Durability:
5000000 cycles
Ambient Air Temperature For Operation:
-20-75 °C
California Proposition 65:
WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Depth:
85 mm
Ip Degree Of Protection:
IP65 IEC 60529
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Embedding Depth:
58 mm
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Environmental Disclosure:
ENVPEP1808008EN
Type Of Operator:
stay put
Contact Operation:
slow-break
Shape Of Signaling Unit Head:
round
Net Weight:
0.115 kg
Circularity Profile:
ENVEOLI1808008EN
Contacts Type And Composition:
1 NO + 1 NC
Height:
30 mm
Contacts Usage:
standard contacts
China Rohs Regulation:
X
Marking:
II 2 GD || Ex tb IIIC Db || Ex db eb IIC Gb
Positive Opening:
with
Reach Free Of Svhc:
Yes
Product Or Component Type:
complete selector switch
Product Certifications:
INERIS 04ATEX9004U
Standards:
IEC 60079-0:2009 || EN/IEC 60079-1:2009 || IEC 60079-7:2009 || IEC 60079-31:2009 || UL 60079-0 || UL 60079-1 || UL 60079-31 || ANSI/ISA 12.12.01 || CSA C22.2 No 213
[Ie] Rated Operational Current:
1.9 A 380 V, AC, A600 IEC 60947-5-1 || 3 A 240 V, AC, A600 IEC 60947-5-1 || 6 A 120 V, AC, A600 IEC 60947-5-1 || 0.27 A 250 V, DC, Q300 IEC 60947-5-1 || 0.55 A 125 V, DC, Q300 IEC 60947-5-1 || 2.87 A 24 V, DC, Q300 IEC 60947-5-1
Fixing Collar Material:
zamak
Rohs Exemption Information:
Yes
Range Of Product:
Harmony XB4
[Ui] Rated Insulation Voltage:
415 V
Bezel Material:
chromium plated metal
[Ith] Conventional Free Air Thermal Current:
10 A IEC 60947-5-1
Operator Position Information:
2 positions 90°
Toxic Heavy Metal Free:
Yes
Gas Zone:
zone 1 - 2
Tightening Torque:
0.8-1.2 N.m IEC 60947-1
Sale Per Indivisible Quantity:
1
Dust Zone:
zone 21 - 22
Device Mounting:
fixing hole 22.5 mm +/- 0.2 mm IEC 60947-1
Operator Profile:
black standard handle
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Protective Treatment:
TH
Fixing Center:
>= 30 x 40 mm support panel) 1-6 mm
Ambient Air Temperature For Storage:
-40-70 °C
Device Short Name:
XB4
Connections - Terminals:
screw clamp terminals, 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, 1 x 2.5 mm² without cable end IEC 60947-1
Width:
46.2 mm
