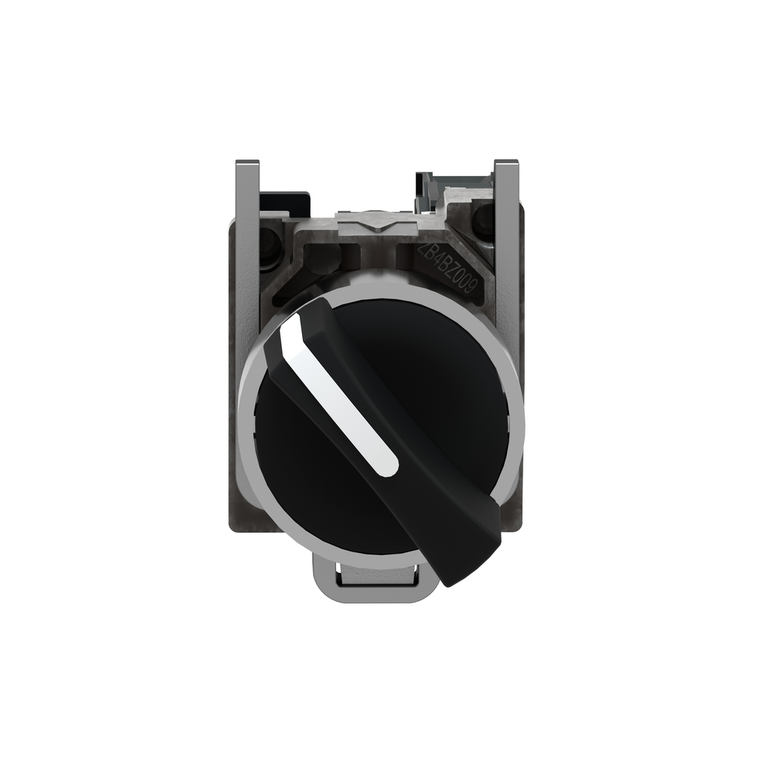

Schneider Electric XB4BD41 Selector Switch

(No reviews yet) Write a Review

Write a Review

Schneider Electric XB4BD41 Selector Switch

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

XB4BD41

UPC:

3389118124714

MPN:

Condition:

New

Net Weight:

0.105 kg

Head Type:

standard

Connections - Terminals:

screw clamp terminals, <= 2 x 1.5 mm² with cable end EN/IEC 60947-1 || screw clamp terminals, >= 1 x 0.22 mm² without cable end EN/IEC 60947-1

Shock Resistance:

30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Reach Free Of Svhc:

Yes

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Terminals Description Iso N°1:

(13-14)NO

[Ui] Rated Insulation Voltage:

600 V 3)EN 60947-1

Shape Of Signaling Unit Head:

round

Environmental Disclosure:

ENVPEP1808008EN

Product Certifications:

DNV || BV || GL || LROS (Lloyds register of shipping) || CSA || UL

Mounting Diameter:

22 mm

Electrical Reliability:

λ < 10exp(-6) 5 V 1 mA in clean environment EN/IEC 60947-5-4 || λ < 10exp(-8) 17 V 5 mA in clean environment EN/IEC 60947-5-4

Mercury Free:

Yes

Range Of Product:

Harmony XB4

Resistance To High Pressure Washer:

7000000 Pa 55 °C 0.1 m

Warranty:

18 months

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

California Proposition 65:

WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Tightening Torque:

0.8-1.2 N.m EN 60947-1

Width:

30 mm

Contact Operation:

slow-break

Ip Degree Of Protection:

IP69 || IP69K || IP67 IEC 60529

Depth:

68 mm

Overvoltage Category:

class I IEC 60536

Vibration Resistance:

5 gn 2-500 Hz)IEC 60068-2-6

Contacts Type And Composition:

1 NO

Type Of Operator:

right to left spring return

Positive Opening:

without

Rohs Exemption Information:

Yes

Operator Position Information:

2 positions 90°

Short-Circuit Protection:

10 A cartridge fuse gG EN/IEC 60947-5-1

Sustainable Offer Status:

Green Premium product

Bezel Material:

chromium plated metal

Protective Treatment:

TH

China Rohs Regulation:

X

Device Presentation:

complete product

Torque Value:

0.14 N.m NO changing electrical state

Electrical Durability:

1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.2

Fixing Collar Material:

zamak

Ambient Air Temperature For Storage:

-40-70 °C

Nema Degree Of Protection:

NEMA 13 || NEMA 4X

Device Short Name:

XB4

Product Or Component Type:

selector switch

[Uimp] Rated Impulse Withstand Voltage:

6 kV EN 60947-1

[Ie] Rated Operational Current:

3 A 240 V, AC-15, A600 EN/IEC 60947-5-1 || 6 A 120 V, AC-15, A600 EN/IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 EN/IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 EN

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Sale Per Indivisible Quantity:

1

Operator Profile:

black standard handle

Contacts Material:

silver alloy (Ag/Ni)

Contacts Usage:

standard contacts

Mechanical Durability:

1000000 cycles

Standards:

EN/IEC 60947-1 || CSA C22.2 No 14 || EN/IEC 60947-5-1 || UL 508 || EN/IEC 60947-5-4 || JIS C8201-5-1 || EN/IEC 60947-5-5 || JIS C8201-1

Height:

47 mm

Circularity Profile:

ENVEOLI1808008EN

Toxic Heavy Metal Free:

Yes

[Ith] Conventional Free Air Thermal Current:

10 A EN/IEC 60947-5-1

Shape Of Screw Head:

cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm

Ambient Air Temperature For Operation:

-40-70 °C
