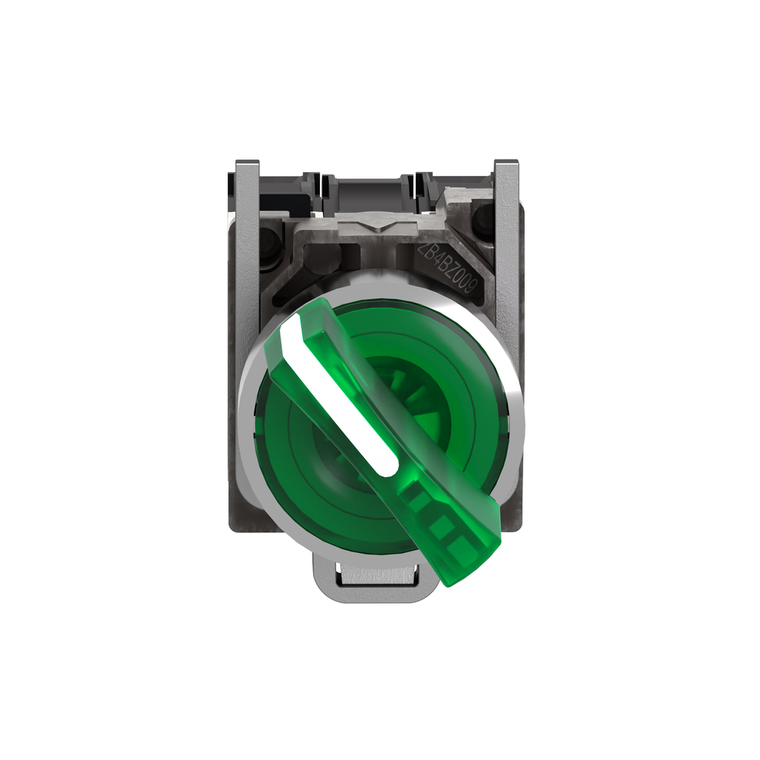

Schneider Electric XB4BK123B5 Selector Pushbotton Head

(No reviews yet) Write a Review

Write a Review

Schneider Electric XB4BK123B5 Selector Pushbotton Head

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

XB4BK123B5

UPC:

3389110892192

MPN:

Condition:

New

[Us] Rated Supply Voltage:

24 V AC/DC 50/60 Hz

Height:

47 mm

Current Consumption:

18 mA

Shock Resistance:

30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Supply Voltage Limits:

19.2-30 V DC || 21.6-26.4 V AC

Type Of Operator:

stay put

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Ambient Air Temperature For Storage:

-40-70 °C

Operator Profile:

green standard handle

Contacts Usage:

standard contacts

Electrical Shock Protection Class:

class I IEC 60536

Shape Of Signaling Unit Head:

round

Net Weight:

0.111 kg

Rohs Exemption Information:

Yes

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Ik Degree Of Protection:

IK04 IEC 50102

Nema Degree Of Protection:

NEMA 13 || NEMA 4X

Range Of Product:

Harmony XB4

Connections - Terminals:

screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1

Product Or Component Type:

illuminated selector switch

China Rohs Regulation:

X

Warranty:

18 months

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Resistance To Electrostatic Discharge:

6 kV on contact (on metal parts) IEC 61000-4-2 || 8 kV in free air (in insulating parts) IEC 61000-4-2

[Ui] Rated Insulation Voltage:

600 V 3)IEC 60947-1

Protective Treatment:

TH

Light Source:

universal LED

Electrical Durability:

1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.2

Signalling Type:

steady

Environmental Disclosure:

ENVPEP1808008EN

Device Short Name:

XB4

Product Certifications:

DNV || LROS (Lloyds register of shipping) || GL || BV || CSA || UL

Contact Operation:

slow-break

Device Presentation:

complete product

Resistance To Fast Transients:

2 kV IEC 61000-4-4

Terminals Description Iso N°1:

(13-14)NO || (21-22)NC

Contacts Material:

silver alloy (Ag/Ni)

[Ith] Conventional Free Air Thermal Current:

10 A IEC 60947-5-1

[Uimp] Rated Impulse Withstand Voltage:

6 kV IEC 60947-1

Mounting Diameter:

22 mm

Resistance To High Pressure Washer:

7000000 Pa 55 °C 0.1 m

Ip Degree Of Protection:

IP66 IEC 60529 || IP67 || IP69 || IP69K

Ambient Air Temperature For Operation:

-40-70 °C

Contacts Type And Composition:

1 NO + 1 NC

Surge Withstand:

1 kV IEC 61000-4-5

Service Life:

100000 h at rated voltage and 25 °C

Bulb Base:

integral LED

Important Message:

A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks

Width:

30 mm

Standards:

IEC 60947-5-4 || IEC 60947-1 || UL 508 || IEC 60947-5-1 || CSA C22.2 No 14 || IEC 60947-5-5 || JIS C8201-5-1 || JIS C8201-1

Tightening Torque:

0.8-1.2 N.m IEC 60947-1

Resistance To Electromagnetic Fields:

10 V/m IEC 61000-4-3

Shape Of Screw Head:

cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm

Depth:

68 mm

Head Type:

standard

Electrical Reliability:

λ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4 || λ < 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4

Short-Circuit Protection:

10 A cartridge fuse gG IEC 60947-5-1

Sale Per Indivisible Quantity:

1

Vibration Resistance:

5 gn 2-500 Hz)IEC 60068-2-6

Bezel Material:

chromium plated metal

Sustainable Offer Status:

Green Premium product

Fixing Collar Material:

zamak

Positive Opening:

with IEC 60947-5-1 appendix K

Mechanical Durability:

1000000 cycles

Electromagnetic Emission:

class B IEC 55011

Operator Position Information:

2 positions 90°

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Operating Torque:

0.14 N.m NO changing electrical state

Circularity Profile:

ENVEOLI1808008EN

[Ie] Rated Operational Current:

3 A 240 V, AC-15, A600 IEC 60947-5-1 || 6 A 120 V, AC-15, A600 IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 IEC 60947-5-1

Mercury Free:

Yes
