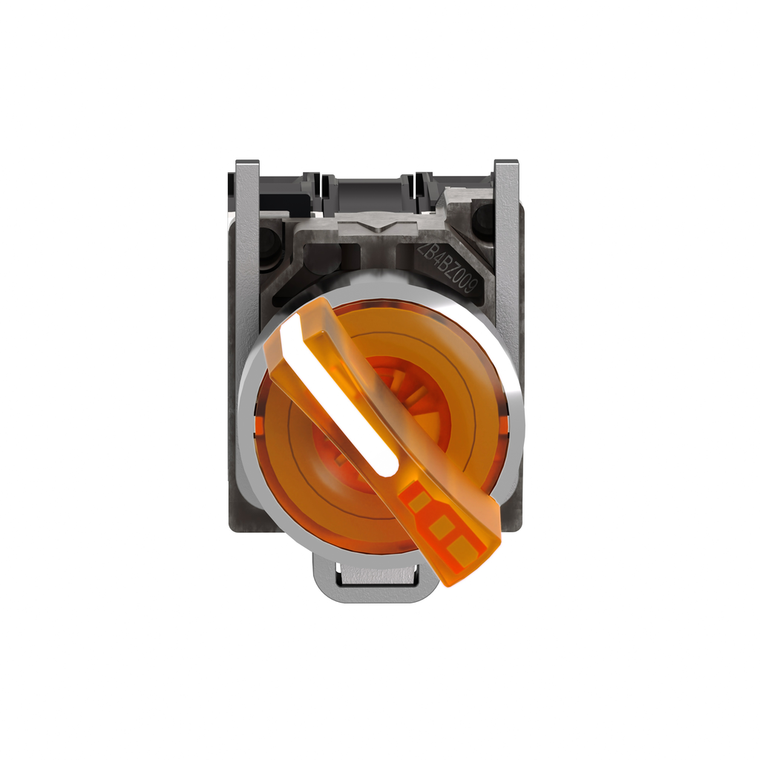

Schneider Electric XB4BK125G5 Selector Pushbotton Head

(No reviews yet) Write a Review

Write a Review

Schneider Electric XB4BK125G5 Selector Pushbotton Head

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

XB4BK125G5

UPC:

3389110892246

MPN:

Condition:

New

Bulb Base:

integral LED

Head Type:

standard

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Electromagnetic Emission:

class B IEC 55011

Shape Of Screw Head:

cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm

Connections - Terminals:

screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1

Sustainable Offer Status:

Green Premium product

Resistance To Electromagnetic Fields:

10 V/m IEC 61000-4-3

Positive Opening:

with IEC 60947-5-1 appendix K

Warranty:

18 months

[Ui] Rated Insulation Voltage:

600 V 3)IEC 60947-1

[Uimp] Rated Impulse Withstand Voltage:

6 kV IEC 60947-1

Circularity Profile:

ENVEOLI1808008EN

Rohs Exemption Information:

Yes

Ik Degree Of Protection:

IK04 IEC 50102

Electrical Shock Protection Class:

class I IEC 60536

Height:

47 mm

Contacts Material:

silver alloy (Ag/Ni)

Contacts Usage:

standard contacts

Contact Operation:

slow-break

[Ith] Conventional Free Air Thermal Current:

10 A IEC 60947-5-1

Sale Per Indivisible Quantity:

1

Important Message:

A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks

Shape Of Signaling Unit Head:

round

Mounting Diameter:

22 mm

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Ambient Air Temperature For Storage:

-40-70 °C

Resistance To Electrostatic Discharge:

6 kV on contact (on metal parts) IEC 61000-4-2 || 8 kV in free air (in insulating parts) IEC 61000-4-2

Short-Circuit Protection:

10 A cartridge fuse gG IEC 60947-5-1

Nema Degree Of Protection:

NEMA 13 || NEMA 4X

Contacts Type And Composition:

1 NO + 1 NC

Type Of Operator:

stay put

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Product Certifications:

DNV || GL || LROS (Lloyds register of shipping) || UL || CSA || BV

Supply Voltage Limits:

100-132 V AC

Light Source:

universal LED

Resistance To High Pressure Washer:

7000000 Pa 55 °C 0.1 m

Surge Withstand:

1 kV IEC 61000-4-5

Width:

30 mm

Environmental Disclosure:

ENVPEP1808008EN

Protective Treatment:

TH

Electrical Reliability:

λ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4 || λ < 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4

Tightening Torque:

0.8-1.2 N.m IEC 60947-1

Resistance To Fast Transients:

2 kV IEC 61000-4-4

China Rohs Regulation:

X

Product Or Component Type:

illuminated selector switch

Operator Position Information:

2 positions 90°

Current Consumption:

14 mA

Signalling Type:

steady

[Us] Rated Supply Voltage:

110...120 V AC 50/60 Hz

[Ie] Rated Operational Current:

3 A 240 V, AC-15, A600 IEC 60947-5-1 || 6 A 120 V, AC-15, A600 IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 IEC 60947-5-1

Operator Profile:

orange standard handle

Device Short Name:

XB4

Ip Degree Of Protection:

IP66 IEC 60529 || IP67 || IP69 || IP69K

Range Of Product:

Harmony XB4

Mechanical Durability:

1000000 cycles

Bezel Material:

chromium plated metal

Service Life:

100000 h at rated voltage and 25 °C

Vibration Resistance:

5 gn 2-500 Hz)IEC 60068-2-6

Terminals Description Iso N°1:

(21-22)NC || (13-14)NO

Mercury Free:

Yes

Electrical Durability:

1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.2

Shock Resistance:

30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Depth:

68 mm

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Fixing Collar Material:

zamak

Operating Torque:

0.14 N.m NO changing electrical state

Standards:

JIS C8201-5-1 || UL 508 || IEC 60947-1 || CSA C22.2 No 14 || IEC 60947-5-4 || IEC 60947-5-1 || IEC 60947-5-5 || JIS C8201-1

Net Weight:

0.111 kg

Device Presentation:

complete product

Ambient Air Temperature For Operation:

-40-70 °C
