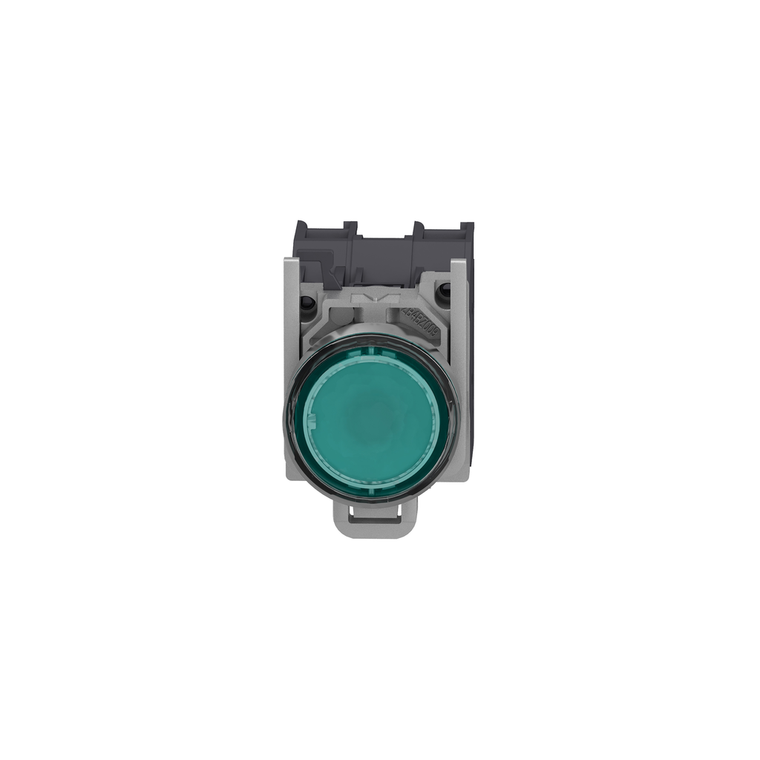

Schneider Electric XB4BP383BM5GEX Aex Illum. Pb Green 24 240V With Boot
Schneider Electric
$240.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric XB4BP383BM5GEX Aex Illum. Pb Green 24 240V With Boot
This product is part of the Harmony XB4 - ATEX D range, an offer of Ø 22mm metal pushbuttons, switches and pilot lights for explosive atmosphere. This green pushbutton has a circular head shape with a booted, clear silicon flush push and is supplied with an integral LED. This offer is specially designed for explosive atmosphere. It is designed for used in dust zone 21-22 and gas zone 1-2. This illuminated pushbutton with integral LED provides an ergonomic and visual interface for controlling machines. It comes with 1 NO contact with slow-break operation and operates with a spring return mechanism. This pushbutton has a 24V to 254V AC/DC rating. It has a chromium plated metal bezal and has a 22mm diameter head. This offer is specially designed for applications in Oil and Gas industry as well as Food and beverage, car gas stations etc. It is an IP65 rated product and comes with INERIS 04ATEX9004U certification. It is easily installed into a standard 22mm diameter panel cut-outs and connected to control circuits with screw-clamp connections. The Harmony XB4 range offers innovative features for simple and efficient use. The Harmony XB4 - ATEX is the most comprehensive explosive Atmospheres range covering most applications.
- Tightening Torque:
- 0.8-1.2 N.m IEC 60947-1
- Mercury Free:
- Yes
- Ambient Air Temperature For Operation:
- -20-75 °C
- [Ie] Rated Operational Current:
- 1.9 A 380 V, AC, A600 IEC 60947-5-1 || 3 A 240 V, AC, A600 IEC 60947-5-1 || 6 A 120 V, AC, A600 IEC 60947-5-1 || 0.27 A 250 V, DC, Q300 IEC 60947-5-1 || 0.55 A 125 V, DC, Q300 IEC 60947-5-1 || 2.87 A 24 V, DC, Q300 IEC 60947-5-1
- Positive Opening:
- without
- Environmental Disclosure:
- ENVPEP1808008EN
- Dust Zone:
- zone 21 - 22
- Overvoltage Category:
- I IEC 60536
- Operator Additional Information:
- booted (clear silicon)
- Mechanical Durability:
- 5000000 cycles
- China Rohs Regulation:
- X
- Circularity Profile:
- ENVEOLI1808008EN
- Sale Per Indivisible Quantity:
- 1
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Signalling Type:
- steady
- Range Of Product:
- Harmony XB4
- Shape Of Signaling Unit Head:
- round
- Rohs Exemption Information:
- Yes
- Protective Treatment:
- TH
- Marking:
- Ex db eb mb IIC Gb || II 2 GD || Ex tb IIIC Db
- Contacts Type And Composition:
- 1 NO
- Embedding Depth:
- 58 mm
- Standards:
- IEC 60079-0:2009 || IEC 60079-7:2009 || EN/IEC 60079-18:2009 || IEC 60079-31:2009 || UL 60079-0 || UL 60079-18 || UL 60079-31 || ANSI/ISA 12.12.01 || CSA C22.2 No 213
- Device Short Name:
- XB4
- Product Certifications:
- INERIS 04ATEX9004U
- Bezel Material:
- chromium plated metal
- [Ith] Conventional Free Air Thermal Current:
- 10 A IEC 60947-5-1
- Sustainable Offer Status:
- Green Premium product
- Fixing Collar Material:
- zamak
- Width:
- 46.2 mm
- Toxic Heavy Metal Free:
- Yes
- Operating Travel:
- 1.657 mm engagement point) || 4.622 mm changing state point) || 4.452 mm total travel)
- [Ui] Rated Insulation Voltage:
- 415 V
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Ip Degree Of Protection:
- IP66 IEC 60529
- Light Source:
- integral LED
- Depth:
- 72 mm
- Operator Profile:
- green flush
- [Us] Rated Supply Voltage:
- 24...254 V AC/DC
- Service Life:
- 100000 h
- Ambient Air Temperature For Storage:
- -40-70 °C
- Gas Zone:
- zone 1 - 2
- Device Mounting:
- fixing hole 22.5 mm +/- 0.2 mm IEC 60947-1
- Net Weight:
- 0.108 kg
- Current Consumption:
- 2...10 mA
- Operating Force:
- 3.962 N
- Connections - Terminals:
- screw clamp terminals, 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, 1 x 2.5 mm² without cable end IEC 60947-1
- Mounting Diameter:
- 22 mm
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Height:
- 30 mm
- Reach Free Of Svhc:
- Yes
- Contact Operation:
- slow-break
- Product Or Component Type:
- complete illuminated push-button
- Type Of Operator:
- spring return
- Fixing Center:
- >= 30 x 40 mm support panel) 1-6 mm
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
