Schneider Electric XB4BP42GEX Aex Pushbutton Red With Boot

Schneider Electric XB4BP42GEX Aex Pushbutton Red With Boot

Schneider Electric
SKU:
XB4BP42GEX
|
UPC:
3.60649E+12
Availability:
Contact us to confirm availability and lead times.
$192.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description

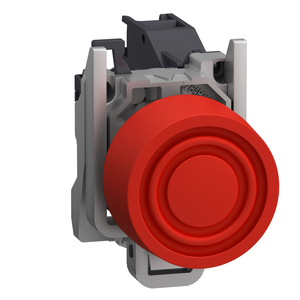

This product is part of the Harmony XB4 - ATEX D range, an offer of Ø 22mm metal pushbuttons, switches and pilot lights for explosive atmosphere. This red pushbutton has a circular head shape with a booted, clear silicon flush push. This offer is specially designed for explosive atmosphere. It is designed for used in dust zone 21-22 and gas zone 1-2. This pushbutton with booted clear silicon provides an ergonomic and visual interface for controlling machines. It comes with 1 NC contact with slow-break operation and operates with a spring return mechanism. It has silver alloy contact material. It has a chromium plated metal bezal and has a 22mm diameter head. This offer is specially designed for applications in Oil and Gas industry as well as Food and beverage, car gas stations etc. It is an IP65 rated product and comes with INERIS 04ATEX9004U certification. It is easily installed into a standard 22mm diameter panel cut-outs and connected to control circuits with screw-clamp connections. The Harmony XB4 range offers innovative features for simple and efficient use. The Harmony XB4 - ATEX is the most comprehensive explosive Atmospheres range covering most applications.
Additional Information
Protective Treatment:
TH
Embedding Depth:
58 mm
Fixing Collar Material:
zamak
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Sale Per Indivisible Quantity:
1
Product Certifications:
INERIS 04ATEX9004U
Range Of Product:
Harmony XB4
Depth:
72 mm
Tightening Torque:
0.8-1.2 N.m IEC 60947-1
Marking:
Ex db eb IIC Gb || II 2 GD || Ex tb IIIC Db
China Rohs Regulation:
X
Product Or Component Type:
complete push-button
Ip Degree Of Protection:
IP66 IEC 60529
Standards:
IEC 60079-0:2009 || EN/IEC 60079-1:2009 || IEC 60079-7:2009 || IEC 60079-31:2009 || UL 60079-0 || UL 60079-1 || UL 60079-31 || ANSI/ISA 12.12.01 || CSA C22.2 No 213
[Ui] Rated Insulation Voltage:
415 V
Operator Profile:
red projecting
Rohs Exemption Information:
Yes
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
[Ie] Rated Operational Current:
1.9 A 380 V, AC, A600 IEC 60947-5-1 || 3 A 240 V, AC, A600 IEC 60947-5-1 || 6 A 120 V, AC, A600 IEC 60947-5-1 || 0.27 A 250 V, DC, Q300 IEC 60947-5-1 || 0.55 A 125 V, DC, Q300 IEC 60947-5-1 || 2.87 A 24 V, DC, Q300 IEC 60947-5-1
Toxic Heavy Metal Free:
Yes
Mercury Free:
Yes
Device Mounting:
fixing hole 22.5 mm +/- 0.2 mm IEC 60947-1
Environmental Disclosure:
ENVPEP1808008EN
Operator Additional Information:
booted (clear silicon)
Mechanical Durability:
5000000 cycles
Contact Operation:
slow-break
Height:
30 mm
[Ith] Conventional Free Air Thermal Current:
10 A IEC 60947-5-1
Gas Zone:
zone 1 - 2
Reach Free Of Svhc:
Yes
Operating Force:
2.873 N
Fixing Center:
>= 30 x 40 mm support panel) 1-6 mm
Type Of Operator:
spring return
Device Short Name:
XB4
Dust Zone:
zone 21 - 22
California Proposition 65:
WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Mounting Diameter:
22 mm
Sustainable Offer Status:
Green Premium product
Net Weight:
0.109 kg
Shape Of Signaling Unit Head:
round
Circularity Profile:
ENVEOLI1808008EN
Ambient Air Temperature For Operation:
-20-75 °C
Width:
46.2 mm
Bezel Material:
chromium plated metal
Positive Opening:
with
Ambient Air Temperature For Storage:
-40-70 °C
Operating Travel:
1.688 mm engagement point) || 3.271 mm changing state point) || 4.424 mm total travel)
Connections - Terminals:
screw clamp terminals, 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, 1 x 2.5 mm² without cable end IEC 60947-1
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Contacts Type And Composition:
1 NC
