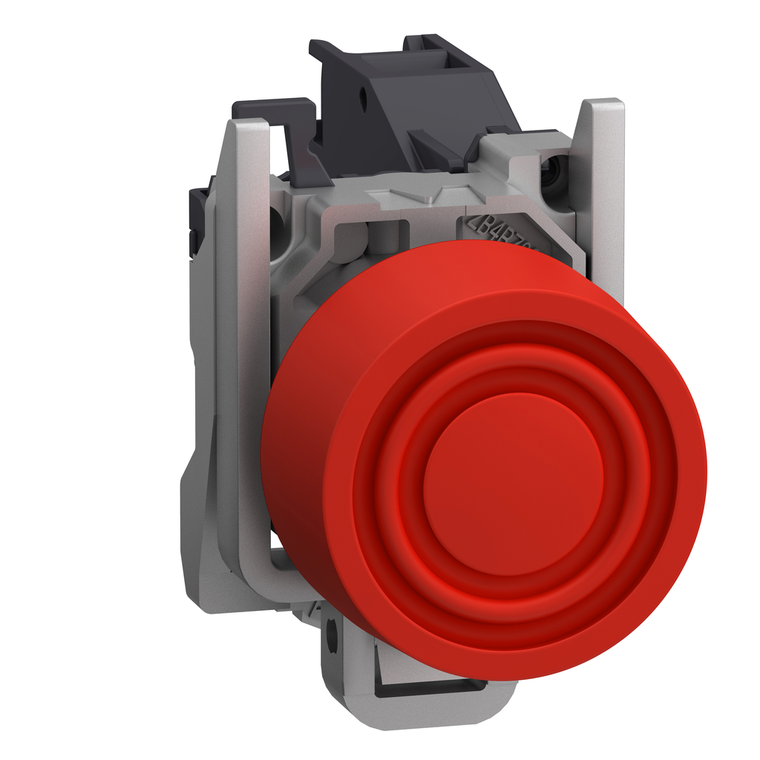

Schneider Electric XB4BPS42GEX Aex Pushbutton Red With Integrated Boot
Schneider Electric
$192.00
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This product is part of the Harmony XB4 - ATEX D range, an offer of Ø 22mm metal pushbuttons, switches and pilot lights for explosive atmosphere. This red pushbutton has a circular head shape with a booted, clear silicon flush push. This offer is specially designed for explosive atmosphere. It is designed for used in dust zone 21-22 and gas zone 1-2. This pushbutton with booted clear silicon provides an ergonomic and visual interface for controlling machines. It comes with 1 NC contact with slow-break operation and operates with a spring return mechanism. It has silver alloy contact material. It has a chromium plated metal bezal and has a 22mm diameter head. This offer is specially designed for applications in Oil and Gas industry as well as Food and beverage, car gas stations etc. It is an IP65 rated product and comes with INERIS 04ATEX9004U certification. It is easily installed into a standard 22mm diameter panel cut-outs and connected to control circuits with screw-clamp connections. The Harmony XB4 range offers innovative features for simple and efficient use. The Harmony XB4 - ATEX is the most comprehensive explosive Atmospheres range covering most applications.
- Mechanical Durability:
- 5000000 cycles
- Embedding Depth:
- 58 mm
- Height:
- 30 mm
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Reach Free Of Svhc:
- Yes
- Environmental Disclosure:
- ENVPEP1808008EN
- Type Of Operator:
- spring return
- Connections - Terminals:
- screw clamp terminals, 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, 1 x 2.5 mm² without cable end IEC 60947-1
- Sale Per Indivisible Quantity:
- 1
- Mercury Free:
- Yes
- Gas Zone:
- zone 1 - 2
- Ambient Air Temperature For Storage:
- -40-70 °C
- Device Short Name:
- XB4
- Tightening Torque:
- 0.8-1.2 N.m IEC 60947-1
- Net Weight:
- 0.081 kg
- [Ui] Rated Insulation Voltage:
- 415 V
- China Rohs Regulation:
- X
- Width:
- 46.2 mm
- Toxic Heavy Metal Free:
- Yes
- Operating Force:
- 2.873 N
- Operating Travel:
- 1.688 mm engagement point) || 3.271 mm changing state point) || 4.424 mm total travel)
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Fixing Collar Material:
- zamak
- Range Of Product:
- Harmony XB4
- Product Certifications:
- INERIS 04ATEX9004U
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Depth:
- 72 mm
- Ip Degree Of Protection:
- IP66 IEC 60529
- Standards:
- IEC 60079-0:2009 || EN/IEC 60079-1:2009 || IEC 60079-7:2009 || IEC 60079-31:2009 || UL 60079-0 || UL 60079-1 || UL 60079-31 || ANSI/ISA 12.12.01 || CSA C22.2 No 213
- Dust Zone:
- zone 21 - 22
- Rohs Exemption Information:
- Yes
- Fixing Center:
- >= 30 x 40 mm support panel) 1-6 mm
- Contacts Type And Composition:
- 1 NC
- Shape Of Signaling Unit Head:
- round
- [Ith] Conventional Free Air Thermal Current:
- 10 A IEC 60947-5-1
- Mounting Diameter:
- 22 mm
- Positive Opening:
- with
- Marking:
- Ex tb IIIC Db || Ex db eb IIC Gb || II 2 GD
- Operator Profile:
- red projecting
- Bezel Material:
- chromium plated metal
- Device Mounting:
- fixing hole 22.5 mm +/- 0.2 mm IEC 60947-1
- Operator Additional Information:
- booted (coloured silicon)
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Circularity Profile:
- ENVEOLI1808008EN
- [Ie] Rated Operational Current:
- 1.9 A 380 V, AC, A600 IEC 60947-5-1 || 3 A 240 V, AC, A600 IEC 60947-5-1 || 6 A 120 V, AC, A600 IEC 60947-5-1 || 0.27 A 250 V, DC, Q300 IEC 60947-5-1 || 0.55 A 125 V, DC, Q300 IEC 60947-5-1 || 2.87 A 24 V, DC, Q300 IEC 60947-5-1
- Sustainable Offer Status:
- Green Premium product
- Ambient Air Temperature For Operation:
- -20-75 °C
- Protective Treatment:
- TH
- Contact Operation:
- slow-break
- Product Or Component Type:
- complete push-button
