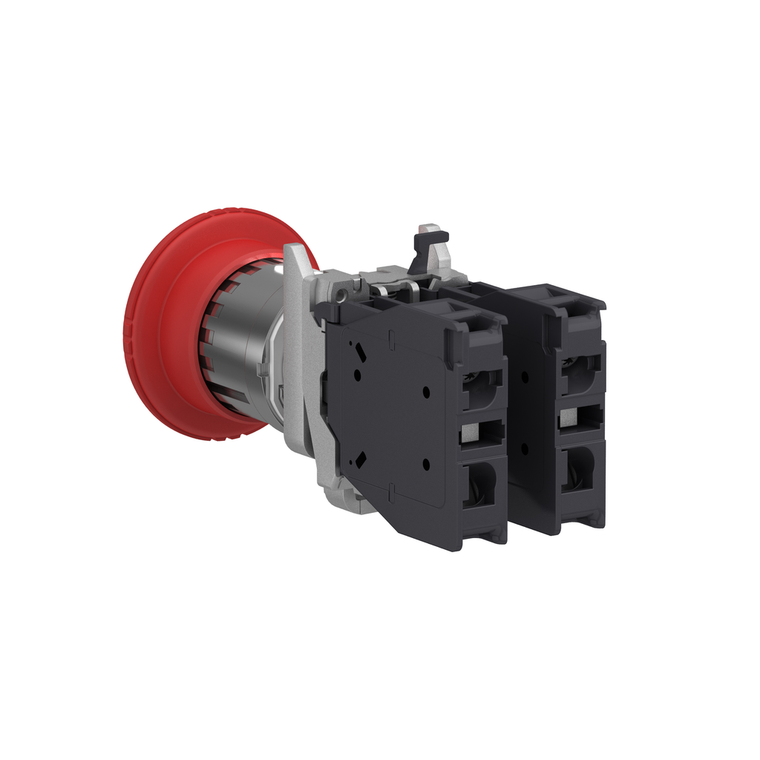

Schneider Electric XB4BS8445GEX Aex Emergency Stop Turn To Release

Schneider Electric XB4BS8445GEX Aex Emergency Stop Turn To Release

Schneider Electric
SKU:
XB4BS8445GEX
|
UPC:
3606489486037
Availability:
Contact us to confirm availability and lead times.
$280.50
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
XB4/ZB4 22mm push buttons are for industrial applications. XB4/ZB4 operators have chromium plated metal bezels that connect to a fully metal mounting collar. Operator is a red turn to release emergency push button. The operator has one normally open and one normally closed contact. Contacts have UL A600, UL Q300, IEC AC15 and IEC DC13 contact ratings. Contacts have screw clamp terminals. Push button has no marking. Push button is 1.18 inches tall, 1.82 inches wide and 4.70 inches deep. Push button weighs 0.31 lbs. Operator is NEMA 4, 4X and 13 rated. Also reated for IEC zone 21-22 dust zones and IEC zone 1-2 gas zones. Push button UL listed and CSA certified. It is an IP65 rated product and comes with INERIS 04ATEX9004U certification. It is easily installed into a standard 22mm diameter panel cut-outs and connected to control circuits with screw-clamp connections. The Harmony XB4 range offers innovative features for simple and efficient use. The Harmony XB4 - ATEX is the most comprehensive explosive Atmospheres range covering most applications.
Additional Information
Connections - Terminals:
screw clamp terminals, 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, 1 x 2.5 mm² without cable end IEC 60947-1
Type Of Operator:
trigger action and mechanical latching
Embedding Depth:
58 mm
Product Certifications:
INERIS 04ATEX9004U
Width:
46.2 mm
Ambient Air Temperature For Operation:
-20-65 °C
Positive Opening:
with IEC 60947-5-1 appendix K
Depth:
119.5 mm
Circularity Profile:
ENVEOLI1808008EN
[Ie] Rated Operational Current:
1.9 A 380 V, AC, A600 IEC 60947-5-1 || 3 A 240 V, AC, A600 IEC 60947-5-1 || 6 A 120 V, AC, A600 IEC 60947-5-1 || 0.27 A 250 V, DC, Q300 IEC 60947-5-1 || 0.55 A 125 V, DC, Q300 IEC 60947-5-1 || 2.87 A 24 V, DC, Q300 IEC 60947-5-1
Shape Of Signaling Unit Head:
round
Mechanical Durability:
5000000 cycles
Operator Profile:
red mushroom Ø 40 mm
Reset:
turn to release
Sale Per Indivisible Quantity:
1
Mercury Free:
Yes
Contact Operation:
slow-break
Contacts Type And Composition:
1 NO + 1 NC
Device Short Name:
XB4
Gas Zone:
zone 1 - 2
Fixing Collar Material:
zamak
Mounting Diameter:
22 mm
Fixing Center:
>= 30 x 40 mm support panel) 1-6 mm
Marking:
Ex tb IIIC Db || Ex db eb IIC Gb || II 2 GD
Tightening Torque:
0.8-1.2 N.m IEC 60947-1
Contacts Usage:
standard
Protective Treatment:
TH
Ambient Air Temperature For Storage:
-40-70 °C
Standards:
IEC 60079-0:2009 || EN/IEC 60079-1:2009 || IEC 60079-7:2009 || IEC 60079-31:2009 || UL 60079-0 || UL 60079-1 || UL 60079-31 || ANSI/ISA 12.12.01 || CSA C22.2 No 213
Toxic Heavy Metal Free:
Yes
Ip Degree Of Protection:
IP65 IEC 60529
Sustainable Offer Status:
Green Premium product
Device Mounting:
fixing hole 22.5 mm +/- 0.2 mm IEC 60947-1
Product Or Component Type:
complete emergency stop push-button
[Ui] Rated Insulation Voltage:
415 V
Net Weight:
0.141 kg
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Dust Zone:
zone 21 - 22
Bezel Material:
chromium plated metal
China Rohs Regulation:
X
Reach Free Of Svhc:
Yes
[Ith] Conventional Free Air Thermal Current:
10 A IEC 60947-5-1
Height:
30 mm
Rohs Exemption Information:
Yes
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
California Proposition 65:
WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Environmental Disclosure:
ENVPEP1808008EN
Range Of Product:
Harmony XB4
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
