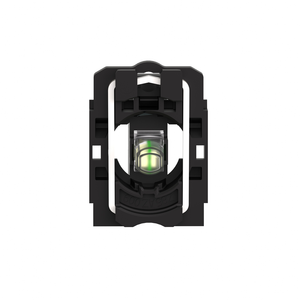

Schneider Electric XB4BVB4 24 V Led Pilot Light Body
Schneider Electric
$72.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric XB4BVB4 24 V Led Pilot Light Body
This Harmony XB4 plain lens modular red pilot light is supplied with 24V AC/DC, uses a universal LED. It has a metal bezel. This pilot light, designed to last without maintenance for a bright indication of process and machine operations, is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance thanks to a bright and long lasting LED illumination. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments. The contacts can be used for low load electrical contact and high power applications. Shake proof connection screws make periodic retightening unnecessary. A complete set of accessories to provide a solution for applications where exposure to high pressure cleaning, dust and extreme temperatures is an everyday occurrence. These harmony 22mm push buttons are used by machine manufacturers (automotive, textiles, timber) and control system panel builders. Certified and approved for meeting requirements throughout all continents: EN/IEC, UL, NEMA, CSA, CCC, Gost, JIS and many more. They have UL and CE markings and have ratings up to IP66 and IP69K.
- Electromagnetic Emission:
- class B IEC 55011
- Warranty:
- 18 months
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Ik Degree Of Protection:
- IK06 IEC 50102
- Environmental Disclosure:
- ENVPEP2308026EN
- Bezel Material:
- chromium plated metal
- Important Message:
- Viktig information: en förändring i utseendet kan observeras på produkten, men detta påverkar inte dess användning i termer av funktion och säkerhet. Detta gör den kompatibel med våra Universal LED-block
- Terminals Description Iso N°1:
- (X1-X2)PL
- Rohs Exemption Information:
- Yes
- Supply Voltage Limits:
- 19.2-30 V DC || 21.6-26.4 V AC
- Protective Treatment:
- TH
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Device Short Name:
- XB4
- Height:
- 47 mm
- Ambient Air Temperature For Storage:
- -40-70 °C
- Light Source Colour:
- red
- Bulb Base:
- integral LED
- Sale Per Indivisible Quantity:
- 1
- Mercury Free:
- Yes
- Operator Additional Information:
- with plain lens
- Service Life:
- 100000 h at rated voltage and 25 °C
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Light Source:
- universal LED
- Sustainable Offer Status:
- Green Premium product
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67 || IP69 || IP69K
- Device Presentation:
- complete product
- Connections - Terminals:
- screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1
- Surge Withstand:
- 1 kV IEC 61000-4-5
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- China Rohs Regulation:
- X
- Product Or Component Type:
- pilot light
- Vibration Resistance:
- 5 gn 12-500 Hz)IEC 60068-2-6
- Electrical Shock Protection Class:
- class I IEC 60536
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Product Certifications:
- CSA || UL Listed
- Net Weight:
- 0.08 kg
- Cap/Operator Or Lens Colour:
- red
- Range Of Product:
- Harmony XB4
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Depth:
- 54 mm
- Standards:
- IEC 60947-5-5 || IEC 60947-5-4 || JIS C8201-5-1 || IEC 60947-5-1 || IEC 60947-1 || CSA C22.2 No 14 || UL 508 || JIS C8201-1
- Shape Of Signaling Unit Head:
- round
- Mounting Diameter:
- 22.5 mm
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Resistance To Fast Transients:
- 2 kV IEC 61000-4-4
- Resistance To Electromagnetic Fields:
- 10 V/m IEC 61000-4-3
- Width:
- 30 mm
- Signalling Type:
- steady
- Circularity Profile:
- ENVEOLI2308026EN
- Ambient Air Temperature For Operation:
- -40-70 °C
- Current Consumption:
- 18 mA
- [Uimp] Rated Impulse Withstand Voltage:
- 4 kV IEC 60947-1
- Fixing Collar Material:
- zamak
- [Ui] Rated Insulation Voltage:
- 250 V 3)IEC 60947-1
- [Us] Rated Supply Voltage:
- 24 V AC/DC 50/60 Hz
- Head Type:
- standard
- Resistance To Electrostatic Discharge:
- 6 kV on contact (on metal parts) IEC 61000-4-2 || 8 kV in free air (in insulating parts) IEC 61000-4-2
