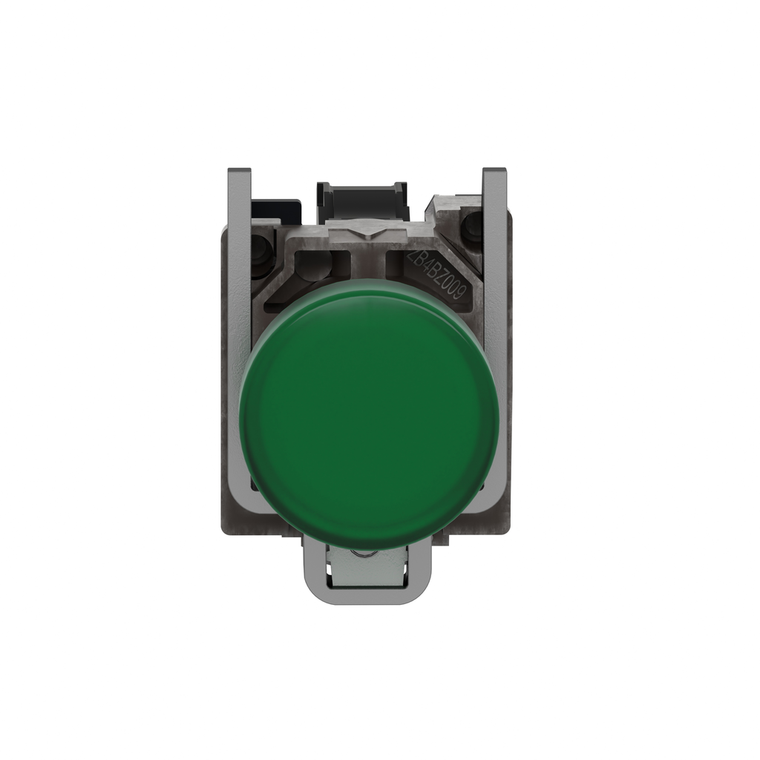

Schneider Electric XB4BVM3 Pilot Light
This Harmony XB4 plain lens modular green pilot light is supplied with 230V to 240V AC, uses a universal LED. It has a metal bezel. This pilot light, designed to last without maintenance for a bright indication of process and machine operations, is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance thanks to a bright and long lasting LED illumination. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments.
- Mounting Diameter:
- 22 mm
- Bulb Base:
- integral LED
- Depth:
- 54 mm
- Product Or Component Type:
- pilot light
- Electromagnetic Emission:
- class B IEC 55011
- Vibration Resistance:
- 5 gn 12-500 Hz)IEC 60068-2-6
- China Rohs Regulation:
- X
- Ik Degree Of Protection:
- IK06 IEC 50102
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67 || IP69 || IP69K
- Range Of Product:
- Harmony XB4
- Light Source Colour:
- green
- Resistance To Fast Transients:
- 2 kV IEC 61000-4-4
- Ambient Air Temperature For Operation:
- -40-70 °C
- Terminals Description Iso N°1:
- (X1-X2)PL
- Important Message:
- A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
- Operator Additional Information:
- with plain lens
- Resistance To Electrostatic Discharge:
- 6 kV on contact (on metal parts) IEC 61000-4-2 || 8 kV in free air (in insulating parts) IEC 61000-4-2
- Signalling Type:
- steady
- Fixing Collar Material:
- zamak
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Warranty:
- 18 months
- Head Type:
- standard
- Environmental Disclosure:
- ENVPEP2308026EN
- Light Source:
- universal LED
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Bezel Material:
- chromium plated metal
- Width:
- 30 mm
- Surge Withstand:
- 1 kV IEC 61000-4-5
- Standards:
- JIS C8201-5-1 || CSA C22.2 No 14 || IEC 60947-5-5 || IEC 60947-5-1 || UL 508 || IEC 60947-5-4 || IEC 60947-1 || JIS C8201-1
- Net Weight:
- 0.08 kg
- Device Presentation:
- complete product
- Electrical Shock Protection Class:
- class I IEC 60536
- Circularity Profile:
- ENVEOLI2308026EN
- Product Certifications:
- CSA || UL Listed
- Rohs Exemption Information:
- Yes
- Sale Per Indivisible Quantity:
- 1
- Current Consumption:
- 14 mA
- Service Life:
- 100000 h at rated voltage and 25 °C
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Height:
- 47 mm
- Ambient Air Temperature For Storage:
- -40-70 °C
- Connections - Terminals:
- screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1
- [Us] Rated Supply Voltage:
- 230...240 V AC 50/60 Hz
- Protective Treatment:
- TH
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Mercury Free:
- Yes
- Sustainable Offer Status:
- Green Premium product
- Cap/Operator Or Lens Colour:
- green
- Device Short Name:
- XB4
- Shape Of Signaling Unit Head:
- round
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- [Ui] Rated Insulation Voltage:
- 250 V 3)IEC 60947-1
- [Uimp] Rated Impulse Withstand Voltage:
- 4 kV IEC 60947-1
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Resistance To Electromagnetic Fields:
- 10 V/m IEC 61000-4-3
- Supply Voltage Limits:
- 195-264 V AC
