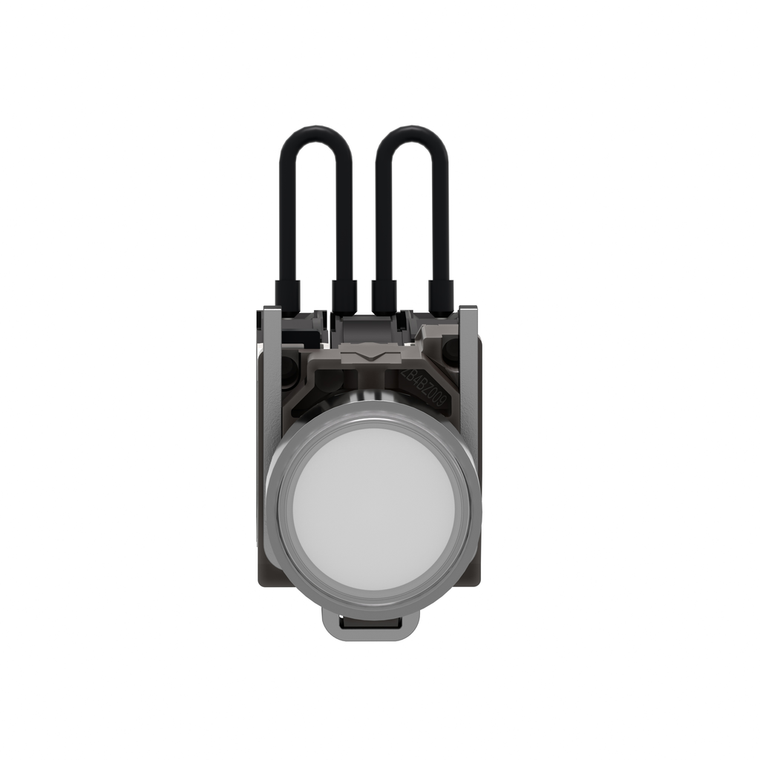

Schneider Electric XB4BW21G5 Metal Push-To-Test Pilot Light 110 120V

(No reviews yet) Write a Review

Write a Review

Schneider Electric XB4BW21G5 Metal Push-To-Test Pilot Light 110 120V

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

XB4BW21G5

UPC:

3606489420628

MPN:

Condition:

New

Product Or Component Type:

push-to-test pilot light

Height:

42 mm

Ik Degree Of Protection:

IK05 IEC 50102

Fixing Collar Material:

metal

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Depth:

55 mm

Connections - Terminals:

screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60068-2-27 || screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60068-2-27

Ambient Air Temperature For Operation:

-40-70 °C

[Ui] Rated Insulation Voltage:

600 V 3)IEC 60947-1

Surge Withstand:

1 kV

Overvoltage Category:

class II IEC 60536

Signalling Type:

steady

Current Consumption:

14 mA

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Mercury Free:

Yes

Light Source:

universal LED

Width:

30 mm

Nema Degree Of Protection:

NEMA 13 IEC 60529 || NEMA 4X

China Rohs Regulation:

X

Resistance To High Pressure Washer:

7000000 Pa 55 °C 0.1 m

[Uimp] Rated Impulse Withstand Voltage:

6 kV IEC 60947-1

Mounting Diameter:

22 mm

Ambient Air Temperature For Storage:

-40-70 °C

Service Life:

1.5 year(s)

Product Certifications:

DNV || LROS (Lloyds register of shipping) || GL || UL Listed || CSA || BV

Range Of Product:

Harmony XB4

Protective Treatment:

TH

Important Message:

A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks

Net Weight:

0.09 kg

Ip Degree Of Protection:

IP66 IEC 60536 || IP67 || IP69 || IP69K

Bezel Material:

metal

Vibration Resistance:

5 gn 12-500 Hz)IEC 60068-2-6

Embedding Depth:

43 mm

Rohs Exemption Information:

Yes

[Us] Rated Supply Voltage:

110...120 V AC/DC 50/60 Hz

Cap/Operator Or Lens Colour:

white

Standards:

CSA C22.2 No 14 || IEC 60947-1 || IEC 60947-5-1 || IEC 60947-5-4 || GB 14048.5 || JIS C8201-5-1 || UL 508 || JIS C8201-1

Device Short Name:

XB4

Tightening Torque:

0.8-1.2 N.m IEC 60947-1

Shock Resistance:

30 gn 18 ms) half sine wave acceleration IEC 60068-2-6 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-6

Shape Of Signaling Unit Head:

round

Light Source Colour:

white

Sale Per Indivisible Quantity:

1

Eu Rohs Directive:

Compliant with Exemptions
