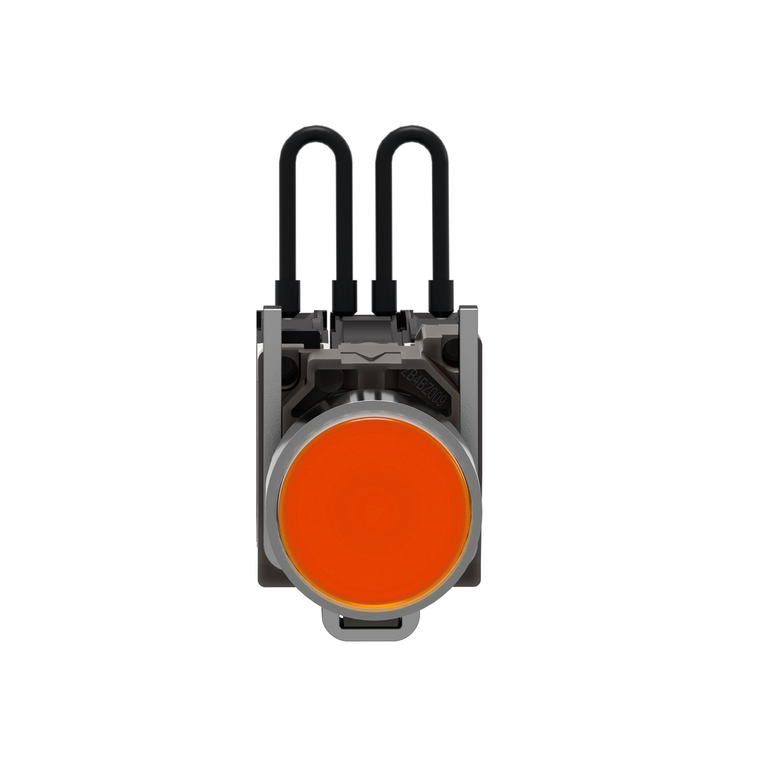

Schneider Electric XB4BW25G5 Metal Push-To-Test Pilot Light 110 120V

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric XB4BW25G5 Metal Push-To-Test Pilot Light 110 120V

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

XB4BW25G5

UPC:

3606489420659

MPN:

Condition:

New

Range Of Product:

Harmony XB4

[Us] Rated Supply Voltage:

110...120 V AC 50/60 Hz

[Uimp] Rated Impulse Withstand Voltage:

6 kV IEC 60947-1

Signalling Type:

steady

Sale Per Indivisible Quantity:

1

Embedding Depth:

43 mm

Product Or Component Type:

push-to-test pilot light

Shock Resistance:

30 gn 18 ms) half sine wave acceleration IEC 60068-2-6 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-6

Vibration Resistance:

5 gn 12-500 Hz)IEC 60068-2-6

Tightening Torque:

0.8-1.2 N.m IEC 60947-1

Device Short Name:

XB4

Ambient Air Temperature For Storage:

-40-70 °C

Service Life:

1.5 year(s)

Eu Rohs Directive:

Compliant with Exemptions

Connections - Terminals:

screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60068-2-27 || screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60068-2-27

Ip Degree Of Protection:

IP66 IEC 60536 || IP67 || IP69 || IP69K

Ambient Air Temperature For Operation:

-40-70 °C

Nema Degree Of Protection:

NEMA 13 IEC 60529 || NEMA 4X

Bezel Material:

metal

China Rohs Regulation:

X

Mounting Diameter:

22 mm

Ik Degree Of Protection:

IK05 IEC 50102

[Ui] Rated Insulation Voltage:

600 V 3)IEC 60947-1

Fixing Collar Material:

metal

Height:

42 mm

Protective Treatment:

TH

Shape Of Signaling Unit Head:

round

Width:

30 mm

Product Certifications:

DNV || LROS (Lloyds register of shipping) || UL Listed || GL || CSA || BV

Surge Withstand:

1 kV

Depth:

55 mm

Light Source Colour:

orange

Overvoltage Category:

class II IEC 60536

Cap/Operator Or Lens Colour:

orange

Current Consumption:

14 mA

Rohs Exemption Information:

Yes

Important Message:

A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks

Standards:

CSA C22.2 No 14 || IEC 60947-1 || IEC 60947-5-1 || IEC 60947-5-4 || GB 14048.5 || JIS C8201-5-1 || UL 508 || JIS C8201-1

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Light Source:

universal LED

Mercury Free:

Yes

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Resistance To High Pressure Washer:

7000000 Pa 55 °C 0.1 m

Net Weight:

0.09 kg
