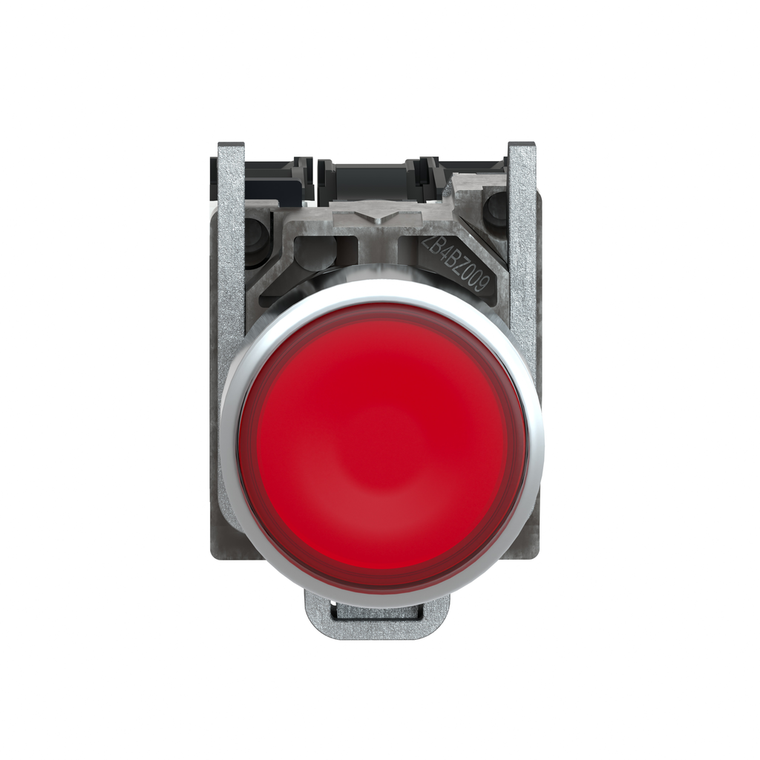

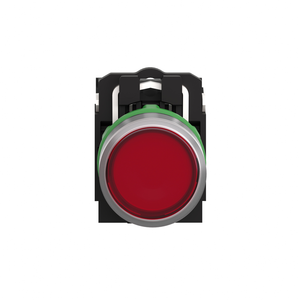

Schneider Electric XB4BW3465 Illuminated Pushbutton

(No reviews yet) Write a Review

Write a Review

Schneider Electric XB4BW3465 Illuminated Pushbutton

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

XB4BW3465

UPC:

3389110887310

MPN:

Condition:

New

Ambient Air Temperature For Storage:

-40-70 °C

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Electrical Shock Protection Class:

class I IEC 60536

Light Block Supply:

direct <2.4 W

Operator Additional Information:

with plain lens

Contacts Material:

silver alloy (Ag/Ni)

Vibration Resistance:

5 gn 2-500 Hz)IEC 60068-2-6

Fixing Collar Material:

zamak

Rohs Exemption Information:

Yes

Device Short Name:

XB4

Warranty:

18 months

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Operating Force:

3.5 N NC changing electrical state || 3.8 N

Head Type:

standard

Type Of Operator:

spring return

Shock Resistance:

30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Contact Operation:

slow-break

Bulb Base:

BA 9s

[Us] Rated Supply Voltage:

<= 250 V

Light Source:

bulb not included

Contacts Type And Composition:

1 NO + 1 NC

Terminals Description Iso N°1:

(21-22)NC || (13-14)NO

Nema Degree Of Protection:

NEMA 13 || NEMA 4X

[Ie] Rated Operational Current:

3 A 240 V, AC-15, A600 IEC 60947-5-1 || 6 A 120 V, AC-15, A600 IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 IEC 60947-5-1

Operating Travel:

1.5 mm NC changing electrical state) || 2.6 mm NO changing electrical state) || 4.3 mm total travel)

Net Weight:

0.097 kg

Connections - Terminals:

screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1

Depth:

57 mm

[Uimp] Rated Impulse Withstand Voltage:

6 kV IEC 60947-1

Range Of Product:

Harmony XB4

Ik Degree Of Protection:

IK06 IEC 50102

Tightening Torque:

0.8-1.2 N.m IEC 60947-1

Standards:

IEC 60947-5-5 || CSA C22.2 No 14 || IEC 60947-5-1 || JIS C8201-5-1 || IEC 60947-5-4 || UL 508 || IEC 60947-1 || JIS C8201-1

[Ith] Conventional Free Air Thermal Current:

10 A IEC 60947-5-1

Circularity Profile:

ENVEOLI1808008EN

Shape Of Screw Head:

cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm

Mechanical Durability:

10000000 cycles

Ambient Air Temperature For Operation:

-40-55 °C

Sale Per Indivisible Quantity:

1

Signalling Type:

steady

[Ui] Rated Insulation Voltage:

600 V 3)IEC 60947-1

Operator Profile:

red flush

Resistance To High Pressure Washer:

7000000 Pa 55 °C 0.1 m

China Rohs Regulation:

X

Sustainable Offer Status:

Green Premium product

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Device Presentation:

complete product

Bezel Material:

chromium plated metal

Width:

30 mm

Mounting Diameter:

22 mm

Height:

47 mm

Ip Degree Of Protection:

IP66 IEC 60529 || IP67 || IP69 || IP69K

Protective Treatment:

TH

Product Certifications:

UL Listed || GL || CSA || LROS (Lloyds register of shipping) || DNV || BV

Environmental Disclosure:

ENVPEP1808008EN

Electrical Durability:

1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, DC-13,

Positive Opening:

with IEC 60947-5-1 appendix K

Shape Of Signaling Unit Head:

round

Contacts Usage:

standard contacts

Product Or Component Type:

illuminated push-button

Electrical Reliability:

λ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4 || λ < 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4

Short-Circuit Protection:

10 A cartridge fuse gG IEC 60947-5-1

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Mercury Free:

Yes
