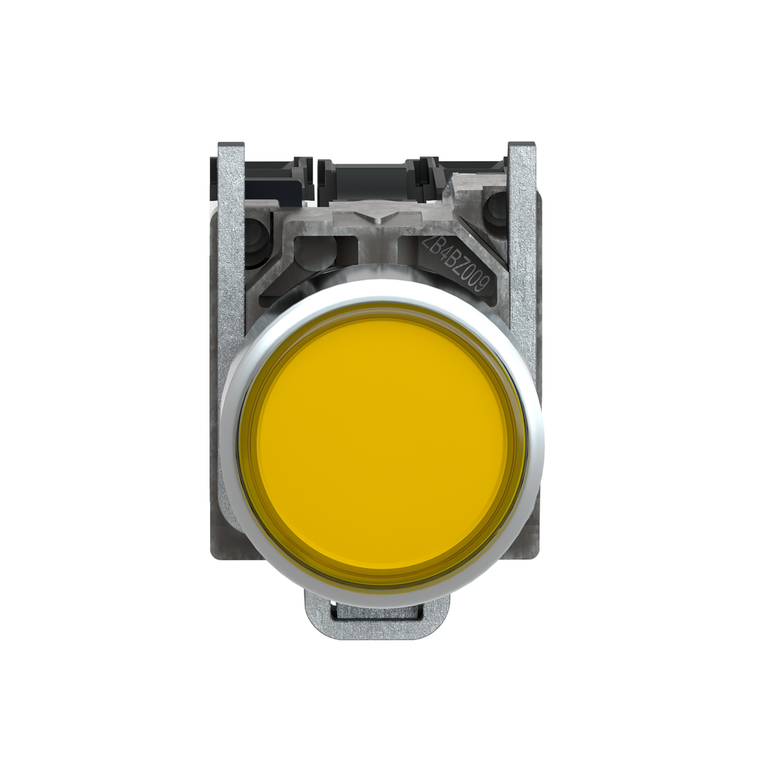

Schneider Electric XB4BW3565 Illuminated Pushbutton

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

XB4BW3565

UPC:

3389110887327

MPN:

Condition:

New

Mounting Diameter:

22 mm

[Ith] Conventional Free Air Thermal Current:

10 A IEC 60947-5-1

Electrical Durability:

1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, DC-13,

Mercury Free:

Yes

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Product Certifications:

UL Listed || CSA || DNV || LROS (Lloyds register of shipping) || BV || GL

Light Source:

bulb not included

Connections - Terminals:

screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1

Circularity Profile:

ENVEOLI1808008EN

Depth:

101 mm

Bulb Base:

BA 9s

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Vibration Resistance:

5 gn 2-500 Hz)IEC 60068-2-6

Range Of Product:

Harmony XB4

Electrical Shock Protection Class:

class I IEC 60536

Width:

30 mm

Head Type:

standard

Product Or Component Type:

illuminated push-button

Ik Degree Of Protection:

IK06 IEC 50102

[Ie] Rated Operational Current:

3 A 240 V, AC-15, A600 IEC 60947-5-1 || 6 A 120 V, AC-15, A600 IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 IEC 60947-5-1

Device Presentation:

complete product

Positive Opening:

with IEC 60947-5-1 appendix K

Operator Profile:

orange flush

[Ui] Rated Insulation Voltage:

600 V 3)IEC 60947-1

Contacts Usage:

standard contacts

Light Block Supply:

direct <2.4 W

Operator Additional Information:

with plain lens

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Shape Of Screw Head:

cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm

Standards:

IEC 60947-1 || CSA C22.2 No 14 || JIS C8201-5-1 || IEC 60947-5-1 || UL 508 || IEC 60947-5-4 || IEC 60947-5-5 || JIS C8201-1

Device Short Name:

XB4

Electrical Reliability:

λ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4 || λ < 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4

Rohs Exemption Information:

Yes

Ambient Air Temperature For Operation:

-40-55 °C

Sale Per Indivisible Quantity:

1

Resistance To High Pressure Washer:

7000000 Pa 55 °C 0.1 m

Shape Of Signaling Unit Head:

round

Nema Degree Of Protection:

NEMA 13 || NEMA 4X

Bezel Material:

chromium plated metal

Mechanical Durability:

10000000 cycles

Protective Treatment:

TH

Height:

47 mm

Ambient Air Temperature For Storage:

-40-70 °C

Signalling Type:

steady

Type Of Operator:

spring return

Short-Circuit Protection:

10 A cartridge fuse gG IEC 60947-5-1

Sustainable Offer Status:

Green Premium product

Contacts Material:

silver alloy (Ag/Ni)

Tightening Torque:

0.8-1.2 N.m IEC 60947-1

[Uimp] Rated Impulse Withstand Voltage:

6 kV IEC 60947-1

Warranty:

18 months

China Rohs Regulation:

X

Contacts Type And Composition:

1 NO + 1 NC

Ip Degree Of Protection:

IP66 IEC 60529 || IP67 || IP69 || IP69K

Net Weight:

0.097 kg

Operating Force:

3.5 N NC changing electrical state || 3.8 N

Shock Resistance:

30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Environmental Disclosure:

ENVPEP1808008EN

[Us] Rated Supply Voltage:

<= 250 V

Contact Operation:

slow-break

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Fixing Collar Material:

zamak

Terminals Description Iso N°1:

(21-22)NC || (13-14)NO

Operating Travel:

1.5 mm NC changing electrical state) || 2.6 mm NO changing electrical state) || 4.3 mm total travel)
