Schneider Electric XB4BW73731G5 Complete Metal Double Headed Pushbuttons
Schneider Electric
$95.55
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies

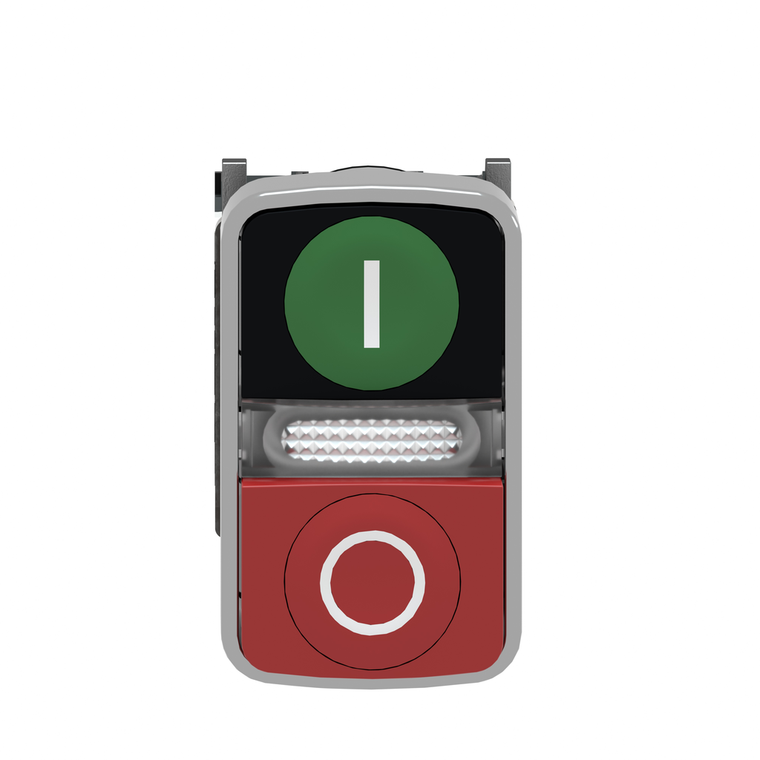

This Harmony XB4 illuminated double head has 1 green, 1 red button and 1 central white pilot light, operates with a spring return / impulse mechanism. It has a metal bezel. It is marked with "I" and "O" symbols. This double-head button provides a complete 2 button interface to your machines with a single panel cut-out. It is easily installed into a standard 22mm diameter cut-outs and connected with simple screw-clamp connections. Its schematic is clearly distinguishable thanks to illuminated clear colors and markings, minimizing errors during initial wiring and later maintenance operations. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66/IP67/IP69/IP69K and IP69K, making it ideal for operation in harsh environments.
- Mechanical Durability:
- 1000000 cycles
- Contact Operation:
- slow-break
- [Ie] Rated Operational Current:
- 3 A 240 V, AC-15, A600 IEC 60947-5-1 || 6 A 120 V, AC-15, A600 IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
- Signalling Type:
- steady
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Bezel Material:
- chromium plated metal
- China Rohs Regulation:
- X
- Ambient Air Temperature For Operation:
- -40-70 °C
- Head Type:
- standard
- Resistance To Electromagnetic Fields:
- 10 V/m IEC 61000-4-3
- Type Of Operator:
- spring return
- Electrical Shock Protection Class:
- class I IEC 60536
- Resistance To Fast Transients:
- 2 kV IEC 61000-4-4
- Warranty:
- 18 months
- Shape Of Screw Head:
- cross JIS No 1 || cross Philips no 1 || cross pozidriv No 1 || slotted flat à 4 mm || slotted flat à 5.5 mm
- Fixing Collar Material:
- zamak
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP69K IEC 60529 || IP69 IEC 60529
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Mounting Diameter:
- 22 mm
- Connections - Terminals:
- screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1
- Mercury Free:
- Yes
- Light Source:
- protected LED
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Tightening Torque:
- 0.8-1.2 N.m IEC 60947-1
- Contacts Usage:
- standard contacts
- Short-Circuit Protection:
- 10 A cartridge fuse gG IEC 60947-5-1
- Circularity Profile:
- ENVEOLI1808008EN
- Net Weight:
- 0.13 kg
- [Us] Rated Supply Voltage:
- 110...120 V AC 50/60 Hz
- Product Certifications:
- GL || BV || DNV || LROS (Lloyds register of shipping) || UL Listed || CSA
- Product Or Component Type:
- illuminated double-headed push-button
- Service Life:
- 100000 h at rated voltage and 25 °C
- Compatibility Code:
- XB4
- Bulb Base:
- integral LED
- Resistance To Electrostatic Discharge:
- 6 kV on contact (on metal parts) IEC 61000-4-2 || 8 kV in free air (in insulating parts) IEC 61000-4-2
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Operators Description:
- green ''I'' - red ''O''
- [Ith] Conventional Free Air Thermal Current:
- 10 A IEC 60947-5-1
- Protective Treatment:
- TH
- Device Short Name:
- XB4
- Electromagnetic Emission:
- class B IEC 55011
- Range Of Product:
- Harmony XB4
- Standards:
- IEC 60947-5-5 || CSA C22.2 No 14 || IEC 60947-5-1 || UL 508 || IEC 60947-1 || IEC 60947-5-4 || JIS C8201-5-1 || JIS C8201-1
- Contacts Type And Composition:
- 1 NO + 1 NC
- Operator Profile:
- green flush, I white) || red projecting, O white)
- Shape Of Signaling Unit Head:
- rectangular
- Electrical Reliability:
- λ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4 || λ < 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4
- [Ui] Rated Insulation Voltage:
- 600 V 3)IEC 60947-1
- Operating Travel:
- 1.5 mm NC changing electrical state) || 2.6 mm NO changing electrical state) || 4.3 mm total travel)
- Device Presentation:
- complete product
- [Uimp] Rated Impulse Withstand Voltage:
- 6 kV IEC 60947-1
- Light Source Colour:
- white
- Ambient Air Temperature For Storage:
- -40-70 °C
- Important Message:
- A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
- Operating Force:
- 3.5 N NC changing electrical state || 3.8 N NO changing electrical state
- Electrical Durability:
- 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, DC-13,
- Sustainable Offer Status:
- Green Premium product
- Environmental Disclosure:
- ENVPEP1808008EN
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Ik Degree Of Protection:
- IK06 IEC 50102
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Rohs Exemption Information:
- Yes
- Surge Withstand:
- 1 kV IEC 61000-4-5
- Colour Of Marking:
- white marking when green, red or black caps || black marking when white caps
- Positive Opening:
- with IEC 60947-5-1 appendix K
- Contacts Material:
- silver alloy (Ag/Ni)
- Current Consumption:
- 14 mA
- Operator Profile:
- 1 flush - 1 projecting push-buttons - 1 central pilot light
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
