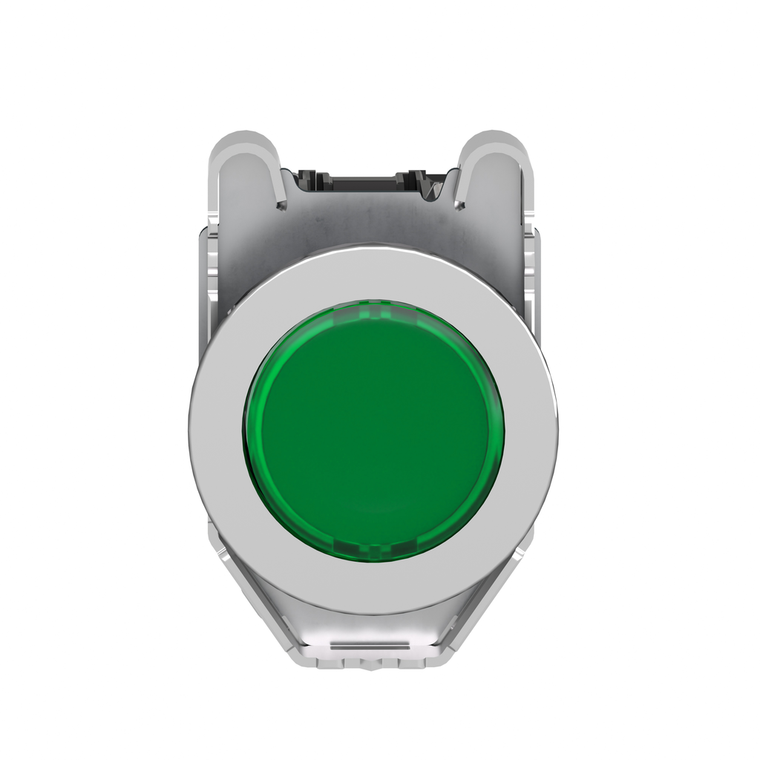

Schneider Electric XB4FW33B5 Flush Caps Ill Pb Gr Led 24V 1No 1Nc

(No reviews yet) Write a Review

Write a Review

Schneider Electric XB4FW33B5 Flush Caps Ill Pb Gr Led 24V 1No 1Nc

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

XB4FW33B5

UPC:

3606489580667

MPN:

Condition:

New

Ambient Air Temperature For Operation:

-40-70 °C

Resistance To Electrostatic Discharge:

6 kV on contact (on metal parts) IEC 61000-4-2 || 8 kV in free air (in insulating parts) IEC 61000-4-2

Device Short Name:

XB4F

Resistance To Electromagnetic Fields:

10 V/m IEC 61000-4-3

Shape Of Signaling Unit Head:

round

Operator Additional Information:

with plain lens

Short-Circuit Protection:

10 A cartridge fuse gG IEC 60947-5-1

Bulb Base:

integral LED

Ik Degree Of Protection:

IK06 IEC 50102

Electromagnetic Emission:

class B IEC 55011

Head Type:

built-in-flush

China Rohs Regulation:

X

Width:

36.6 mm

Current Consumption:

18 mA

Resistance To Fast Transients:

2 kV IEC 61000-4-4

Signalling Type:

steady

Contacts Usage:

standard contacts

Height:

47 mm

Product Or Component Type:

illuminated push-button

Electrical Reliability:

λ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4 || λ < 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4

Rohs Exemption Information:

Yes

Contacts Type And Composition:

1 NO + 1 NC

Surge Withstand:

1 kV IEC 61000-4-5

Resistance To High Pressure Washer:

7000000 Pa 55 °C 0.1 m

Sale Per Indivisible Quantity:

1

Sustainable Offer Status:

Green Premium product

Standards:

CSA C22.2 No 14 || IEC 60947-5-1 || IEC 60947-5-4 || UL 508 || IEC 60947-1 || JIS C8201-5-1 || CE || JIS C8201-1

Device Presentation:

complete product

Mercury Free:

Yes

Bezel Material:

chromium plated metal

Operator Profile:

green flush

Circularity Profile:

ENVEOLI1808008EN

Shape Of Screw Head:

cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Fixing Collar Material:

zamak

Operating Force:

3.5 N NC changing electrical state || 3.8 N

[Ith] Conventional Free Air Thermal Current:

10 A IEC 60947-5-1

Fixing Mode:

by screws 0.8 N.m

Contacts Material:

silver alloy (Ag/Ni)

Electrical Shock Protection Class:

class I IEC 60536

Ip Degree Of Protection:

IP66 IEC 60529 || IP67 IEC 60529 || IP69 IEC 60529 || IP69K ISO 20653 || Type 13 UL 50 E || Type 12 UL 50 E || Type 4 UL 50 E || Type 4X UL 50 E

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Product Certifications:

UL Listed || CSA || CCC || EAC

Electrical Durability:

1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, DC-13,

Tightening Torque:

0.8-1.2 N.m IEC 60947-1

[Ie] Rated Operational Current:

3 A 240 V, AC-15, A600 IEC 60947-5-1 || 6 A 120 V, AC-15, A600 IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 IEC 60947-5-1

[Uimp] Rated Impulse Withstand Voltage:

6 kV IEC 60947-1

Important Message:

Viktig information: en förändring i utseendet kan observeras på produkten, men detta påverkar inte dess användning i termer av funktion och säkerhet. Detta gör den kompatibel med våra Universal LED-block

[Ui] Rated Insulation Voltage:

600 V 3)IEC 60947-1

Net Weight:

0.132 kg

Environmental Disclosure:

ENVPEP1808008EN

Type Of Operator:

spring return

Range Of Product:

Harmony XB4

Light Source:

universal LED

Contact Operation:

slow-break

Service Life:

100000 h at rated voltage and 25 °C

Operating Travel:

1.5 mm NC changing electrical state) || 2.6 mm NO changing electrical state) || 4.3 mm total travel)

Warranty:

18 months

Positive Opening:

with IEC 60947-5-1 appendix K

Supply Voltage Limits:

19.2-30 V DC || 21.6-26.4 V AC

Terminals Description Iso N°1:

(21-22)NC || (13-14)NO

Depth:

55 mm

Mechanical Durability:

10000000 cycles

Device Mounting:

built-in

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Connections - Terminals:

screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1

Ambient Air Temperature For Storage:

-40-70 °C

Vibration Resistance:

5 gn 10-500 Hz)IEC 60068-2-6 || 2 mm peak to peak 2-10 Hz)IEC 60068-2-6

[Us] Rated Supply Voltage:

24 V AC/DC 50/60 Hz

Mounting Diameter:

30.5 mm

Protective Treatment:

TH

Shock Resistance:

30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 || 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27
