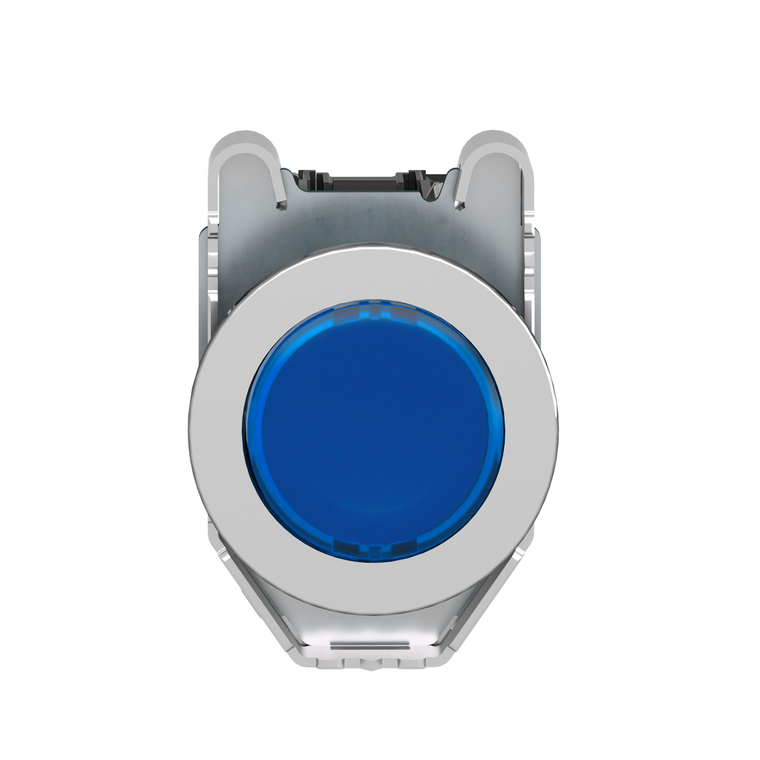

Schneider Electric XB4FW36B5 Flush Caps Ill Pb Bl Led 24V 1No 1Nc

Schneider Electric XB4FW36B5 Flush Caps Ill Pb Bl Led 24V 1No 1Nc

Schneider Electric
SKU:
XB4FW36B5
|
UPC:
3606489580759
$119.30
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
This flush mounted illuminated pushbutton is a part of the Harmony XB4 metallic range and is a complete product. It has a mounting diameter of 30.5 mm. The rated supply voltage is 24 V AC/DC. Customized marking option through web customization tool in Schneider Electric website is available. The flush mount design of this pushbutton addresses the market demands for ergonomic and aesthetics. It has a plain lens and the source of light is a universal LED. The contact type is 1NO and 1NC slow break and the connection terminal is screw clamp. The operator mechanism is spring return. The shape of the head is round and blue. The bezel is chromium plated and the fixing collar is zamak. The weight of this pushbutton is 132 grams, height is 47 mm, and width is 36.6 mm. The simplicity of installation, flexibility, and robustness makes it suitable for the majority of industrial segments and applications. With IP66, 67, 69, and 69K, type 12, 13, 4, and 4X, IK06, protection against solid objects, dust, water, and high impact is achieved. It is certified with EN/IEC, CE marking, UL, CSA, CCC, EAC, JIS, NEMA, and marine approvals. To name a few, flush mounted metal circular blanking plug, metal ring, spacer, protective washer, and flush mounting kit are some of the dedicated accessories to be ordered separately, available to facilitate the installation. The packaging includes 1 unit of this pushbutton. It can be easily installed to a panel cut out with the help of a cross head screwdriver. Contacts and heads are designed to prevent vibration, helping to ensure secure mounting and wiring. It is eco-friendly and complies with directives such as RoHS, WEEE, etc. related to environmental protection.
Additional Information
Ik Degree Of Protection:
IK06 IEC 50102
China Rohs Regulation:
X
Electrical Reliability:
λ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4 || λ < 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4
Device Short Name:
XB4F
Operating Travel:
1.5 mm NC changing electrical state) || 2.6 mm NO changing electrical state) || 4.3 mm total travel)
Range Of Product:
Harmony XB4
Terminals Description Iso N°1:
(13-14)NO || (21-22)NC
Mounting Diameter:
30.5 mm
Resistance To Electrostatic Discharge:
6 kV on contact (on metal parts) IEC 61000-4-2 || 8 kV in free air (in insulating parts) IEC 61000-4-2
Contacts Usage:
standard contacts
Ambient Air Temperature For Operation:
-40-70 °C
Head Type:
built-in-flush
Resistance To Electromagnetic Fields:
10 V/m IEC 61000-4-3
Contacts Material:
silver alloy (Ag/Ni)
Bezel Material:
chromium plated metal
Environmental Disclosure:
ENVPEP1808008EN
Fixing Collar Material:
zamak
[Ie] Rated Operational Current:
3 A 240 V, AC-15, A600 IEC 60947-5-1 || 6 A 120 V, AC-15, A600 IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
Surge Withstand:
1 kV IEC 61000-4-5
Service Life:
100000 h at rated voltage and 25 °C
Electrical Shock Protection Class:
class I IEC 60536
Circularity Profile:
ENVEOLI1808008EN
Contact Operation:
slow-break
Mechanical Durability:
10000000 cycles
Height:
47 mm
Connections - Terminals:
screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1
Standards:
CSA C22.2 No 14 || IEC 60947-5-1 || IEC 60947-5-4 || UL 508 || IEC 60947-1 || JIS C8201-5-1 || CE || JIS C8201-1
[Ith] Conventional Free Air Thermal Current:
10 A IEC 60947-5-1
Warranty:
18 months
Vibration Resistance:
5 gn 10-500 Hz)IEC 60068-2-6 || 2 mm peak to peak 2-10 Hz)IEC 60068-2-6
Sustainable Offer Status:
Green Premium product
[Ui] Rated Insulation Voltage:
600 V 3)IEC 60947-1
Shock Resistance:
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 || 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27
Net Weight:
0.132 kg
Ip Degree Of Protection:
IP66 IEC 60529 || IP67 IEC 60529 || IP69 IEC 60529 || IP69K ISO 20653 || Type 13 UL 50 E || Type 12 UL 50 E || Type 4 UL 50 E || Type 4X UL 50 E
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Operating Force:
3.5 N NC changing electrical state || 3.8 N
Supply Voltage Limits:
19.2-30 V DC || 21.6-26.4 V AC
Light Source:
universal LED
Bulb Base:
integral LED
Contacts Type And Composition:
1 NO + 1 NC
Rohs Exemption Information:
Yes
Operator Additional Information:
with plain lens
Tightening Torque:
0.8-1.2 N.m IEC 60947-1
Signalling Type:
steady
Width:
36.6 mm
[Uimp] Rated Impulse Withstand Voltage:
6 kV IEC 60947-1
Current Consumption:
18 mA
Important Message:
Viktig information: en förändring i utseendet kan observeras på produkten, men detta påverkar inte dess användning i termer av funktion och säkerhet. Detta gör den kompatibel med våra Universal LED-block
Ambient Air Temperature For Storage:
-40-70 °C
Positive Opening:
with IEC 60947-5-1 appendix K
Sale Per Indivisible Quantity:
1
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Fixing Mode:
by screws 0.8 N.m
Operator Profile:
blue flush
Device Mounting:
built-in
Device Presentation:
complete product
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Electrical Durability:
1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, DC-13,
Electromagnetic Emission:
class B IEC 55011
Resistance To Fast Transients:
2 kV IEC 61000-4-4
Short-Circuit Protection:
10 A cartridge fuse gG IEC 60947-5-1
Product Certifications:
UL Listed || CSA || CCC || EAC
Shape Of Screw Head:
cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm
Resistance To High Pressure Washer:
7000000 Pa 55 °C 0.1 m
Mercury Free:
Yes
Depth:
55 mm
Protective Treatment:
TH
[Us] Rated Supply Voltage:
24 V AC/DC 50/60 Hz
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Product Or Component Type:
illuminated push-button
Shape Of Signaling Unit Head:
round
Type Of Operator:
spring return
Catalog:
View
Datasheet:
View
