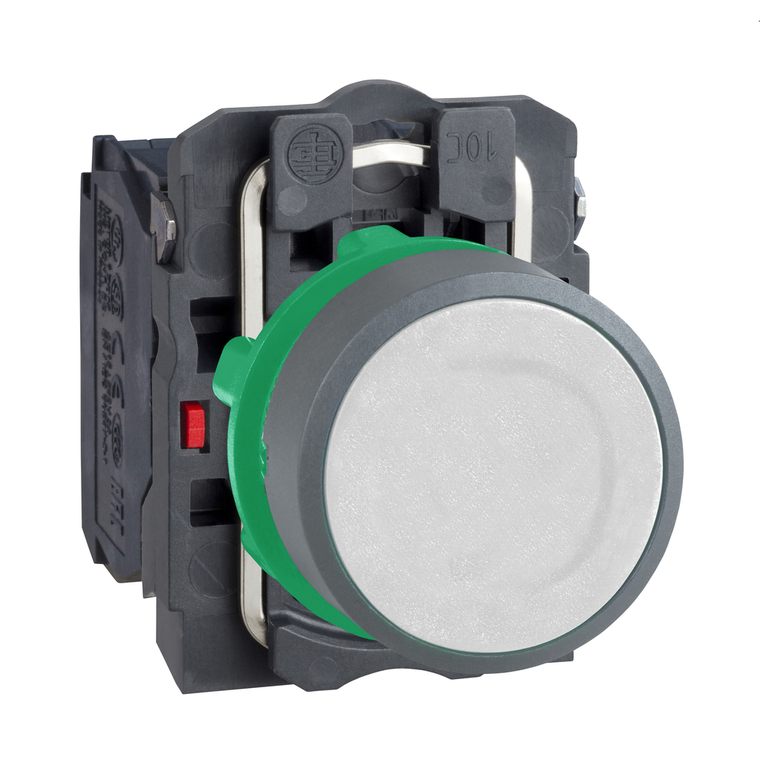

Schneider Electric XB5AA15C0 Pushbutton
Schneider Electric
$31.20
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This push-button provides an ergonomic interface for controlling your machines. It is easily installed into a standard 22mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. Its schematic is clearly distinguishable thanks to clear colors, minimizing errors during initial wiring and later maintenance operations. It is imapct, dust, water and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments.
- Product Or Component Type:
- push-button
- Electrical Reliability:
- λ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4 || λ < 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4
- Operating Force:
- 3.5 N NC changing electrical state || 3.8 N NO changing electrical state
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67
- Depth:
- 52 mm
- Mounting Diameter:
- 22 mm
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Connections - Terminals:
- screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1
- Ambient Air Temperature For Operation:
- -40-70 °C
- [Uimp] Rated Impulse Withstand Voltage:
- 6 kV IEC 60947-1
- Mercury Free:
- Yes
- Ik Degree Of Protection:
- IK03 IEC 50102
- Short-Circuit Protection:
- 10 A cartridge fuse gG IEC 60947-5-1
- Customizable:
- 1
- Operator Profile:
- white flush, unmarked
- Contacts Usage:
- standard contacts
- Compatibility Code:
- XB5
- Protective Treatment:
- TH
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Height:
- 42 mm
- Customizable:
- no
- Device Presentation:
- complete product
- Reach Free Of Svhc:
- Yes
- Fixing Collar Material:
- plastic
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Tightening Torque:
- 0.8-1.2 N.m IEC 60947-1
- Range Of Product:
- Harmony XB5
- Ambient Air Temperature For Storage:
- -40-70 °C
- Electrical Durability:
- 1000000 cycles AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles DC-13, 0.2
- Overvoltage Category:
- class II IEC 60536
- Contacts Type And Composition:
- 1 NO + 1 NC
- Sale Per Indivisible Quantity:
- 1
- Width:
- 30 mm
- [Ui] Rated Insulation Voltage:
- 600 V 3)IEC 60947-1
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 || 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27
- Toxic Heavy Metal Free:
- Yes
- Head Type:
- standard
- Device Short Name:
- XB5
- Bezel Material:
- plastic colour plated grey
- Mechanical Durability:
- 10000000 cycles
- China Rohs Regulation:
- X
- Contact Operation:
- slow-break
- Terminals Description Iso N°1:
- (21-22)NC || (13-14)NO
- Shape Of Signaling Unit Head:
- round
- Shape Of Screw Head:
- cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm
- Contacts Material:
- silver alloy (Ag/Ni)
- Product Certifications:
- BV || DNV || LROS (Lloyds register of shipping) || GL || UL Listed || CSA
- [Ie] Rated Operational Current:
- 3 A 240 V, AC-15, A600 IEC 60947-5-1 || 6 A 120 V, AC-15, A600 IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
- Standards:
- UL 508 || IEC 60947-1 || IEC 60947-5-1 || CSA C22.2 No 14 || JIS C8201-5-1 || IEC 60947-5-4 || JIS C8201-1
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6 || 2 mm peak to peak 2-10 Hz)IEC 60068-2-6
- Rohs Exemption Information:
- Yes
- Gcr Bridge:
- XB5AACUST05
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- [Ith] Conventional Free Air Thermal Current:
- 10 A IEC 60947-5-1
- Type Of Operator:
- spring return
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Operating Travel:
- 1.5 mm NC changing electrical state) || 2.6 mm NO changing electrical state) || 4.3 mm total travel)
- Positive Opening:
- with IEC 60947-5-1 appendix K
