Schneider Electric XB5AA42 Pushbutton

Schneider Electric XB5AA42 Pushbutton

Schneider Electric
SKU:
XB5AA42
|
UPC:
3389110903423
Availability:
Factory stock
$28.30
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description

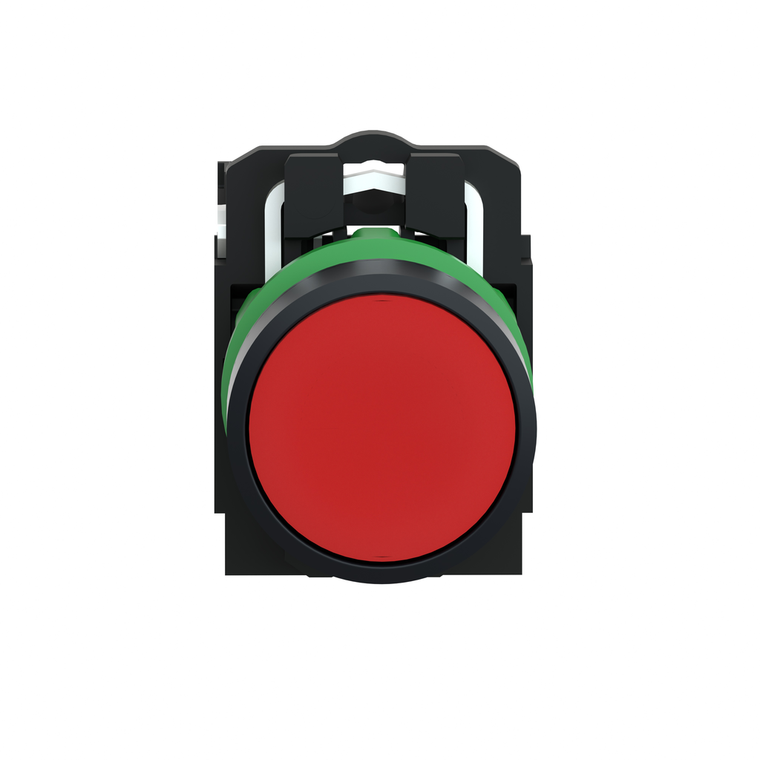

This Harmony XB5, modular red push button operates with a spring return / impulse mechanism and uses screw clamp terminals. This push button provides a simple and robust control to machines and processes. It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. Its schematic is clearly distinguishable visually at a distance thanks to clear colors and markings, minimizing errors during initial wiring and later maintenance operations. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments. Its plastic bezel makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation.
Additional Information
Sustainable Offer Status:
Green Premium product
Resistance To High Pressure Washer:
7000000 Pa 55 °C 0.1 m
Device Presentation:
complete product
Depth:
52 mm
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Head Type:
standard
Net Weight:
0.037 kg
[Ith] Conventional Free Air Thermal Current:
10 A EN/IEC 60947-5-1
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Ambient Air Temperature For Storage:
-40-70 °C
Product Certifications:
UL Listed || BV || GL || CSA || LROS (Lloyds register of shipping) || DNV || RINA
Circularity Profile:
ENVEOLI1710010EN
Type Of Operator:
spring return
Fixing Collar Material:
plastic
Ip Degree Of Protection:
IP66 IEC 60529 || IP67 || IP69 || IP69K
Overvoltage Category:
class II IEC 60536
Mounting Diameter:
22 mm
Contact Operation:
slow-break
Short-Circuit Protection:
10 A cartridge fuse gG EN/IEC 60947-5-1
[Ie] Rated Operational Current:
3 A 240 V, AC-15, A600 EN/IEC 60947-5-1 || 6 A 120 V, AC-15, A600 EN/IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 EN/IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 EN
Positive Opening:
with EN/IEC 60947-5-1 appendix K
Electrical Durability:
1000000 cycles AC-15, 2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles AC-15, 3 A 120 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles AC-15, 4 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles DC
Bezel Material:
plastic || dark grey plastic
Warranty:
18 months
Toxic Heavy Metal Free:
Yes
Gcr Bridge:
XB5AACUST01
Width:
30 mm
Contacts Material:
silver alloy (Ag/Ni)
Operating Force:
3.5 N NC changing electrical state
Height:
42 mm
Standards:
EN/IEC 60947-1 || CSA C22.2 No 14 || JIS C8201-5-1 || UL 508 || EN/IEC 60947-5-1 || EN/IEC 60947-5-4 || JIS C8201-1
Terminals Description Iso N°1:
(21-22)NC
Vibration Resistance:
5 gn 2-500 Hz)IEC 60068-2-6
China Rohs Regulation:
X
Protective Treatment:
TH
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Nema Degree Of Protection:
NEMA 13 || NEMA 4X
Ambient Air Temperature For Operation:
-40-70 °C
Mechanical Durability:
10000000 cycles
Contacts Usage:
standard contacts
Rohs Exemption Information:
Yes
Environmental Disclosure:
ENVPEP1710010EN
Ik Degree Of Protection:
IK03 IEC 50102
Reach Free Of Svhc:
Yes
Mercury Free:
Yes
[Ui] Rated Insulation Voltage:
600 V 3)EN/IEC 60947-1
Shape Of Signaling Unit Head:
round
Tightening Torque:
0.8-1.2 N.m EN 60947-1
Operator Profile:
red flush, unmarked
Connections - Terminals:
screw clamp terminals, <= 2 x 1.5 mm² with cable end EN/IEC 60947-1 || screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end EN/IEC 60947-1
Operating Travel:
1.5 mm NC changing electrical state) || 4.3 mm total travel)
Electrical Reliability:
λ < 10exp(-6) 5 V 1 mA in clean environment EN/IEC 60947-5-4 || λ < 10exp(-8) 17 V 5 mA in clean environment EN/IEC 60947-5-4
Shape Of Screw Head:
cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm
Customizable:
no
Range Of Product:
Harmony XB5
California Proposition 65:
WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Compatibility Code:
XB5
Customizable:
1
Shock Resistance:
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
[Uimp] Rated Impulse Withstand Voltage:
6 kV EN/IEC 60947-1
Sale Per Indivisible Quantity:
1
Contacts Type And Composition:
1 NC
Device Short Name:
XB5
Product Or Component Type:
push-button
Catalog:
View
Datasheet:
View
