Schneider Electric XB5AA4322 Pushbutton

Schneider Electric XB5AA4322 Pushbutton

Schneider Electric
SKU:
XB5AA4322
|
UPC:
3389110903430
$44.70
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description

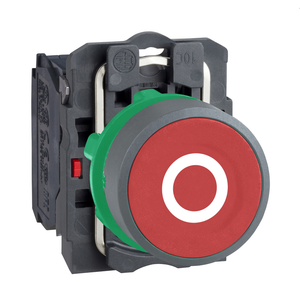

This Harmony XB5, modular red push button operates with a spring return / impulse mechanism and uses screw clamp terminals. It is marked with a "O" symbol. This push button provides a simple and robust control to machines and processes. It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. Its schematic is clearly distinguishable visually at a distance thanks to clear colors and markings, minimizing errors during initial wiring and later maintenance operations. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments. Its plastic bezel makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation.
Additional Information
Mechanical Durability:
10000000 cycles
Circularity Profile:
ENVEOLI1710010EN
Toxic Heavy Metal Free:
Yes
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
[Uimp] Rated Impulse Withstand Voltage:
6 kV IEC 60947-1
[Ith] Conventional Free Air Thermal Current:
10 A IEC 60947-5-1
Operating Force:
3.5 N NC changing electrical state
Operating Travel:
1.5 mm NC changing electrical state) || 4.3 mm total travel)
Vibration Resistance:
5 gn 2-500 Hz)IEC 60068-2-6
Nema Degree Of Protection:
NEMA 13 || NEMA 4X
Height:
42 mm
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Bezel Material:
plastic || dark grey plastic
Overvoltage Category:
class II IEC 60536
Resistance To High Pressure Washer:
7000000 Pa 55 °C 0.1 m
Contacts Type And Composition:
1 NC
Net Weight:
0.037 kg
Shape Of Signaling Unit Head:
round
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Device Presentation:
complete product
Customizable:
no
Reach Free Of Svhc:
Yes
Depth:
52 mm
[Ie] Rated Operational Current:
3 A 240 V, AC-15, A600 IEC 60947-5-1 || 6 A 120 V, AC-15, A600 IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
Operator Profile:
red flush, O white)
Device Short Name:
XB5
Tightening Torque:
0.8-1.2 N.m IEC 60947-1
Sustainable Offer Status:
Green Premium product
Head Type:
standard
Fixing Collar Material:
plastic
China Rohs Regulation:
X
Warranty:
18 months
Compatibility Code:
XB5
Connections - Terminals:
screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1
California Proposition 65:
WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Ik Degree Of Protection:
IK03 IEC 50102
Contacts Usage:
standard contacts
Electrical Durability:
1000000 cycles AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles DC-13, 0.2
Ambient Air Temperature For Operation:
-40-70 °C
Width:
30 mm
Terminals Description Iso N°1:
(21-22)NC
Contacts Material:
silver alloy (Ag/Ni)
Ambient Air Temperature For Storage:
-40-70 °C
Environmental Disclosure:
ENVPEP1710010EN
Contact Operation:
slow-break
Product Certifications:
BV || UL Listed || LROS (Lloyds register of shipping) || CSA || DNV || GL || RINA
Customizable:
0
Rohs Exemption Information:
Yes
Short-Circuit Protection:
10 A cartridge fuse gG IEC 60947-5-1
Ip Degree Of Protection:
IP66 IEC 60529 || IP67 || IP69 || IP69K
Standards:
UL 508 || IEC 60947-5-1 || CSA C22.2 No 14 || IEC 60947-5-4 || JIS C8201-5-1 || IEC 60947-1 || JIS C8201-1
Sale Per Indivisible Quantity:
1
Mounting Diameter:
22 mm
Mercury Free:
Yes
Type Of Operator:
spring return
Shape Of Screw Head:
cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm
Protective Treatment:
TH
Range Of Product:
Harmony XB5
[Ui] Rated Insulation Voltage:
600 V 3)IEC 60947-1
Electrical Reliability:
λ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4 || λ < 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4
Shock Resistance:
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Product Or Component Type:
push-button
Positive Opening:
with IEC 60947-5-1 appendix K
