Schneider Electric XB5AA45C0 Pushbutton
Schneider Electric
$31.20
(No reviews yet)
Write a Review
Write a Review
Schneider Electric

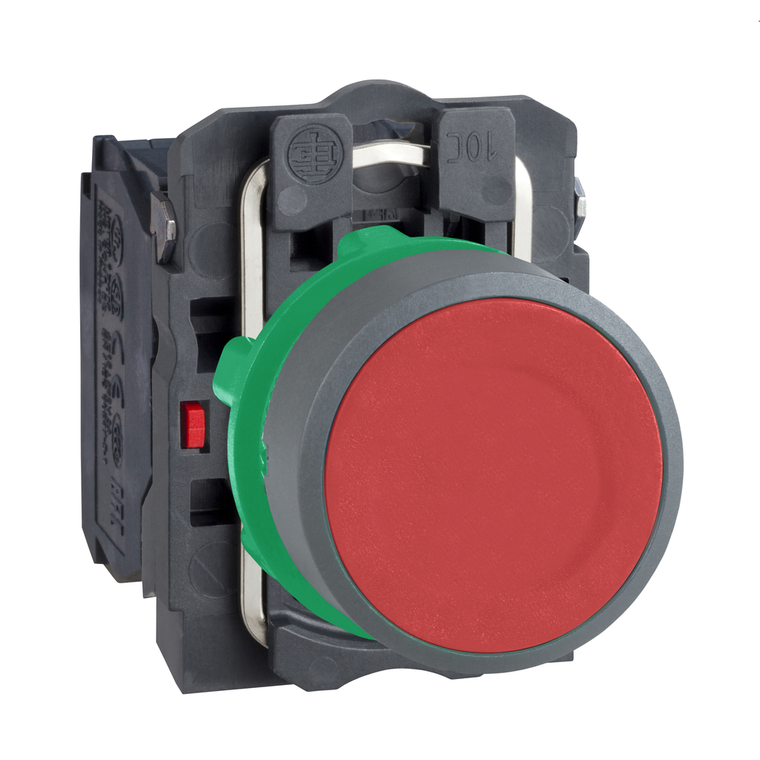

Schneider Electric XB5AA45C0 Pushbutton
This push-button provides a simple and robust control to machines and processes. It is easily installed into a standard 22mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. Its schematic is clearly distinguishable thanks to clear colors, minimizing errors during initial wiring and later maintenance operations. It is imapct, dust, water and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments.
- Contacts Type And Composition:
- 1 NO + 1 NC
- Toxic Heavy Metal Free:
- Yes
- Product Certifications:
- GL || DNV || RINA || LROS (Lloyds register of shipping) || BV || CSA || UL Listed
- Operating Travel:
- 1.5 mm NC changing electrical state) || 2.6 mm NO changing electrical state) || 4.3 mm total travel)
- Customizable:
- no
- Standards:
- IEC 60947-5-4 || IEC 60947-1 || JIS C8201-5-1 || CSA C22.2 No 14 || IEC 60947-5-1 || UL 508 || JIS C8201-1
- Rohs Exemption Information:
- Yes
- Head Type:
- standard
- Range Of Product:
- Harmony XB5
- Reach Free Of Svhc:
- Yes
- Fixing Collar Material:
- plastic
- Operating Force:
- 3.5 N NC changing electrical state || 3.8 N NO changing electrical state
- Height:
- 42 mm
- China Rohs Regulation:
- X
- Tightening Torque:
- 0.8-1.2 N.m IEC 60947-1
- Width:
- 30 mm
- Mounting Diameter:
- 22 mm
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- [Ith] Conventional Free Air Thermal Current:
- 10 A IEC 60947-5-1
- Compatibility Code:
- XB5
- Shape Of Signaling Unit Head:
- round
- Electrical Reliability:
- λ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4 || λ < 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4
- Type Of Operator:
- spring return
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67
- Bezel Material:
- plastic colour plated grey
- Ambient Air Temperature For Storage:
- -40-70 °C
- Terminals Description Iso N°1:
- (21-22)NC || (13-14)NO
- Sale Per Indivisible Quantity:
- 1
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Shape Of Screw Head:
- cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- [Uimp] Rated Impulse Withstand Voltage:
- 6 kV IEC 60947-1
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 || 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27
- [Ie] Rated Operational Current:
- 3 A 240 V, AC-15, A600 IEC 60947-5-1 || 6 A 120 V, AC-15, A600 IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
- Device Short Name:
- XB5
- Contacts Usage:
- standard contacts
- Short-Circuit Protection:
- 10 A cartridge fuse gG IEC 60947-5-1
- Contacts Material:
- silver alloy (Ag/Ni)
- Contact Operation:
- slow-break
- Product Or Component Type:
- push-button
- Gcr Bridge:
- XB5AACUST05
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Mercury Free:
- Yes
- Protective Treatment:
- TH
- Mechanical Durability:
- 10000000 cycles
- Ambient Air Temperature For Operation:
- -40-70 °C
- Operator Profile:
- red flush, unmarked
- Depth:
- 52 mm
- Overvoltage Category:
- class II IEC 60536
- Electrical Durability:
- 1000000 cycles AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles DC-13, 0.2
- Positive Opening:
- with IEC 60947-5-1 appendix K
- Device Presentation:
- complete product
- Customizable:
- 1
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6 || 2 mm peak to peak 2-10 Hz)IEC 60068-2-6
- Connections - Terminals:
- screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1
- Ik Degree Of Protection:
- IK03 IEC 50102
- [Ui] Rated Insulation Voltage:
- 600 V 3)IEC 60947-1
