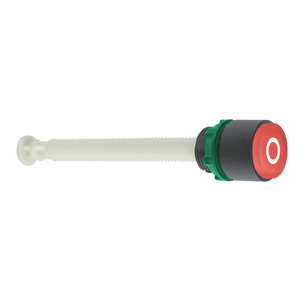

Schneider Electric XB5AA86102 Reset Xb5A Pushbutton

Schneider Electric XB5AA86102 Reset Xb5A Pushbutton

Schneider Electric
SKU:
XB5AA86102
|
UPC:
3389110102475
Availability:
Contact us to confirm availability and lead times.
$45.50
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
This Schneider Electric Harmony XB5 flush manual overload reset pushbutton is blue. The actuation distance is from 17 to 120 mm. It has a round shape and a plastic bezel. It is marked with "R" symbol. This complete manual overload reset pushbutton provides an ergonomic interface for controlling your machines thanks to its flush push head. It provides a robust and precise control when it is required to reset your machines and processes. It is easily installed into a standard 22mm diameter panel cut-outs. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Plastic bezel. Ideal for applications requiring good resistance to chemical agents and/or double electrical insulation. Simple modular design facilitates post installation servicing, modification and adaption of machines by non-specialists. Designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. High performance, International standards & certifications ( Marine certification, IP66 IP67 IP69 IP69K, Type 4X). Wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product. Clear and resilient symbol marking on the button.
Additional Information
Toxic Heavy Metal Free:
Yes
Rohs Exemption Information:
Yes
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Environmental Disclosure:
ENVPEP1710010EN
Nema Degree Of Protection:
NEMA 4X
Activating Distance:
17-120 mm
Device Presentation:
complete product
Device Short Name:
XB5
Standards:
EN/IEC 60947-1
Operating Travel:
10 mm
Fixing Collar Material:
plastic
Height:
29 mm
Protective Treatment:
TH
Ambient Air Temperature For Operation:
-40-70 °C
China Rohs Regulation:
X
Net Weight:
0.027 kg
Sustainable Offer Status:
Green Premium product
Mercury Free:
Yes
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Head Type:
standard
Mounting Diameter:
22 mm
Bezel Material:
dark grey plastic
Circularity Profile:
ENVEOLI1710010EN
California Proposition 65:
WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Shape Of Signaling Unit Head:
round
Electrical Shock Protection Class:
class II IEC 60536
Product Or Component Type:
manual overload reset push-button
Depth:
120 mm
Resistance To High Pressure Washer:
7000000 Pa 55 °C 0.1 m
Range Of Product:
Harmony XB5
Operator Profile:
blue flush, R white)
Ambient Air Temperature For Storage:
-40-70 °C
Warranty:
18 months
Ik Degree Of Protection:
IK03 IEC 50102
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Reach Free Of Svhc:
Yes
Width:
29 mm
Product Certifications:
UL Listed
Ip Degree Of Protection:
IP66 IEC 60529
Datasheet:
View
