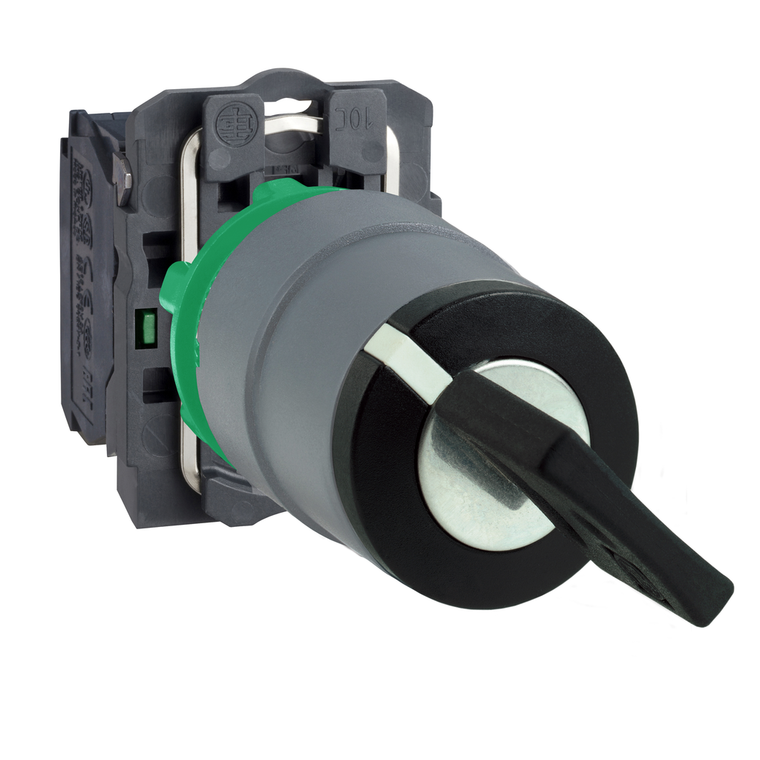

Schneider Electric XB5AD21C0 Selector Switch

Schneider Electric XB5AD21C0 Selector Switch

Schneider Electric
SKU:
XB5AD21C0
|
UPC:
3606489758097
$31.84
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description
This selector switch provides a versatile interface for controlling your machines. It is easily installed into standard 22mm diameter cut-outs and connected to your control circuits with simple screw-clamp connections. It provides an effective manner to set your machine in various operating modes. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP69, making it ideal for operation in harsh environments.
Additional Information
Connections - Terminals:
screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1
Shape Of Screw Head:
cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm
Electrical Reliability:
λ < 10exp(-6) 5 V, 1 mA in clean environment IEC 60947-5-4 || λ < 10exp(-8) 17 V, 5 mA in clean environment IEC 60947-5-4
Protective Treatment:
TH
Head Type:
standard
Mounting Diameter:
22 mm
[Uimp] Rated Impulse Withstand Voltage:
6 kV IEC 60947-1
Depth:
70 mm
Operator Profile:
black standard handle
Mercury Free:
Yes
Terminals Description Iso N°1:
(13-14)NO
Positive Opening:
without
Type Of Operator:
stay put
Torque Value:
0.14 N.m NO changing electrical state
Rohs Exemption Information:
Yes
Resistance To High Pressure Washer:
7000000 Pa 55 °C 0.1 m
[Ui] Rated Insulation Voltage:
600 V 3)IEC 60947-1
Ik Degree Of Protection:
IK04 IEC 50102
Device Short Name:
XB5
Electrical Durability:
1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, DC-13,
Contacts Usage:
standard contacts
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Electrical Shock Protection Class:
class II IEC 60536
Net Weight:
0.043 kg
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Vibration Resistance:
5 gn 2-500 Hz)IEC 60068-2-6
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Product Certifications:
UL || DNV || GL || BV || CSA || LROS (Lloyds register of shipping)
Tightening Torque:
0.8-1.2 N.m IEC 60947-1
Reach Free Of Svhc:
Yes
Ip Degree Of Protection:
IP67 IEC 60529
Range Of Product:
Harmony XB5
Operator Position Information:
2 positions 90°
Contact Operation:
slow-break
Width:
30 mm
[Ith] Conventional Free Air Thermal Current:
10 A IEC 60947-5-1
Ambient Air Temperature For Storage:
-40-70 °C
Toxic Heavy Metal Free:
Yes
Contacts Material:
silver alloy (Ag/Ni)
Short-Circuit Protection:
10 A cartridge fuse gG IEC 60947-5-1
Device Presentation:
complete product
Product Or Component Type:
selector switch
California Proposition 65:
WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
China Rohs Regulation:
X
Standards:
IEC 60947-1 || IEC 60947-5-4 || IEC 60947-5-1 || JIS C8201-5-1 || UL 508 || CSA C22.2 No 14 || JIS C8201-1
Mechanical Durability:
1000000 cycles
Bezel Material:
plastic colour plated grey
[Ie] Rated Operational Current:
3 A 240 V, AC-15, A600 IEC 60947-5-1 || 6 A 120 V, AC-15, A600 IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
Nema Degree Of Protection:
NEMA 13 || NEMA 4X
Sale Per Indivisible Quantity:
1
Shock Resistance:
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Height:
42 mm
Ambient Air Temperature For Operation:
-40-70 °C
Contacts Type And Composition:
1 NO
Shape Of Signaling Unit Head:
round
