Schneider Electric XB5AD41C0 Selector Switch
Schneider Electric
$29.66
(No reviews yet)
Write a Review
Write a Review
Schneider Electric

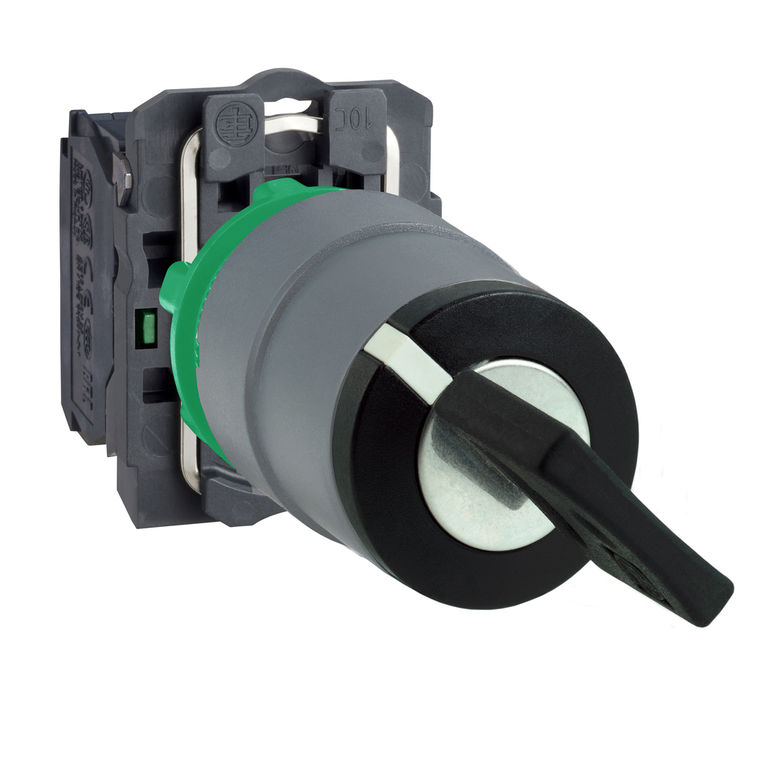

Schneider Electric XB5AD41C0 Selector Switch
This selector switch provides a versatile interface for controlling your machines. It is easily installed into standard 22mm diameter cut-outs and connected to your control circuits with simple screw-clamp connections. It provides an effective manner to set your machine in various operating modes. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP69, making it ideal for operation in harsh environments.
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Reach Free Of Svhc:
- Yes
- [Uimp] Rated Impulse Withstand Voltage:
- 6 kV IEC 60947-1
- Device Short Name:
- XB5
- Height:
- 42 mm
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Bezel Material:
- plastic colour plated grey
- Ambient Air Temperature For Storage:
- -40-70 °C
- Depth:
- 70 mm
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- China Rohs Regulation:
- X
- Mercury Free:
- Yes
- Contacts Usage:
- standard contacts
- Short-Circuit Protection:
- 10 A cartridge fuse gG IEC 60947-5-1
- Standards:
- IEC 60947-5-4 || IEC 60947-1 || JIS C8201-5-1 || UL 508 || IEC 60947-5-1 || CSA C22.2 No 14 || JIS C8201-1
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- [Ui] Rated Insulation Voltage:
- 600 V 3)IEC 60947-1
- Positive Opening:
- without
- Product Or Component Type:
- selector switch
- Ik Degree Of Protection:
- IK04 IEC 50102
- Shape Of Signaling Unit Head:
- round
- Range Of Product:
- Harmony XB5
- Ambient Air Temperature For Operation:
- -40-70 °C
- Type Of Operator:
- right to left spring return
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Toxic Heavy Metal Free:
- Yes
- Operator Position Information:
- 2 positions 90°
- Width:
- 30 mm
- Mechanical Durability:
- 1000000 cycles
- Torque Value:
- 0.14 N.m NO changing electrical state
- [Ie] Rated Operational Current:
- 3 A 240 V, AC-15, A600 IEC 60947-5-1 || 6 A 120 V, AC-15, A600 IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
- Tightening Torque:
- 0.8-1.2 N.m IEC 60947-1
- Rohs Exemption Information:
- Yes
- Device Presentation:
- complete product
- [Ith] Conventional Free Air Thermal Current:
- 10 A IEC 60947-5-1
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Contacts Material:
- silver alloy (Ag/Ni)
- Protective Treatment:
- TH
- Connections - Terminals:
- screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1
- Contact Operation:
- slow-break
- Sale Per Indivisible Quantity:
- 1
- Electrical Shock Protection Class:
- class II IEC 60536
- Product Certifications:
- UL || CSA || BV || GL || LROS (Lloyds register of shipping) || DNV
- Mounting Diameter:
- 22 mm
- Ip Degree Of Protection:
- IP67 IEC 60529
- Shape Of Screw Head:
- cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm
- Electrical Reliability:
- λ < 10exp(-6) 5 V, 1 mA in clean environment IEC 60947-5-4 || λ < 10exp(-8) 17 V, 5 mA in clean environment IEC 60947-5-4
- Net Weight:
- 0.046 kg
- Operator Profile:
- black standard handle
- Electrical Durability:
- 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, DC-13,
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Contacts Type And Composition:
- 1 NO
- Terminals Description Iso N°1:
- (13-14)NO
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Head Type:
- standard
