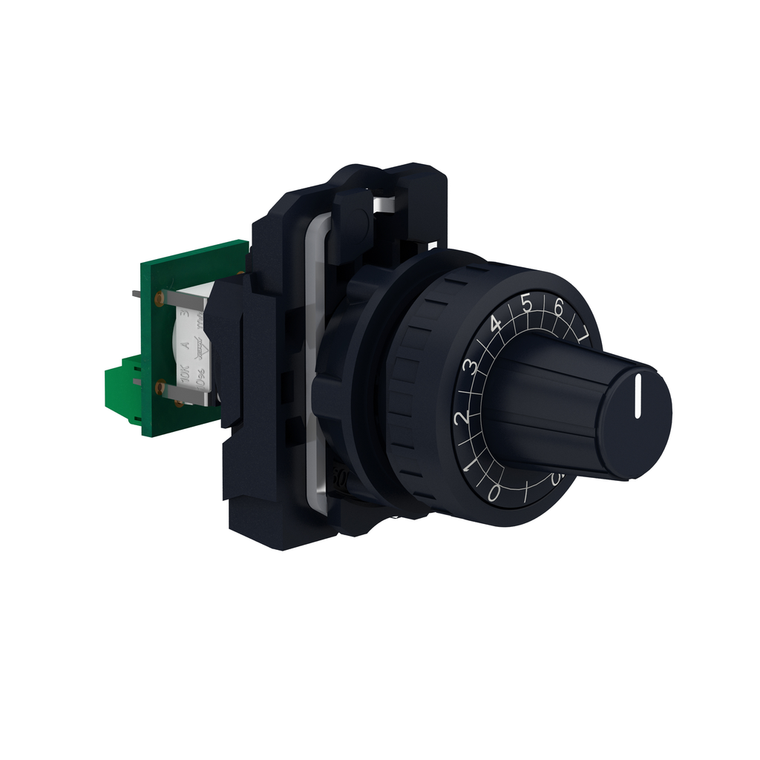

Schneider Electric XB5AD912R10K Head And Potentiometer R10K

(No reviews yet) Write a Review

Write a Review

Schneider Electric XB5AD912R10K Head And Potentiometer R10K

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

XB5AD912R10K

UPC:

3606480985072

MPN:

Condition:

New

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Group Of Product:

potentiometer knurled knob

Mercury Free:

Yes

Cad Overall Width:

30 mm

Resistance To High Pressure Washer:

7000000 Pa 55 °C 0.1 m

Device Short Name:

XB5

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Mechanical Durability:

50000 cycles

Ip Degree Of Protection:

IP66 IEC 60529

Rated Power In W:

1 W 70 °C

Material:

cermet

Shock Resistance:

30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Cad Overall Height:

42 mm

Sustainable Offer Status:

Green Premium product

Electrical Shock Protection Class:

class II IEC 60536

Device Presentation:

complete product

Head Type:

standard

Ambient Air Temperature For Storage:

-40-70 °C

Ambient Air Temperature For Operation:

-40-70 °C

California Proposition 65:

WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr

Product Compatibility:

Ø 6 mm shaft

Protective Treatment:

TH

[Us] Rated Supply Voltage:

<= 42 V DC || <= 30 V AC

Bezel Material:

dark grey plastic

Main Group:

potentiometer

Circularity Profile:

ENVEOLI1710010EN

Shape Of Signaling Unit Head:

round

Potentiometer Characteristic:

linear

Mounting Diameter:

22 mm

Reach Free Of Svhc:

Yes

Environmental Disclosure:

ENVPEP1710010EN

Standards:

CSA C22.2 No 14 || UL 508 || EN/IEC 60947-1

Range Of Product:

Harmony XB5

Nema Degree Of Protection:

NEMA 13 || NEMA 4X

Colour Of Marking:

white

Operator Profile:

knurled knob, with white)

Net Weight:

0.048 kg

Cad Overall Depth:

82 mm

Ohmic Value:

10000 Ohm

Product Certifications:

BV || CSA || UL Listed

Ik Degree Of Protection:

IK03 IEC 50102

Precision Of Internal Conversion Resistor:

-0.1

Rohs Exemption Information:

Yes

Vibration Resistance:

5 gn 2-500 Hz)IEC 60068-2-6

Sale Per Indivisible Quantity:

1

China Rohs Regulation:

X

Product Or Component Type:

potentiometer
