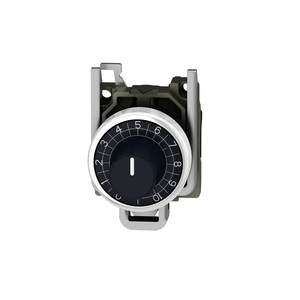

Schneider Electric XB5AD912R1K Head And Potentiometer R1K

Schneider Electric XB5AD912R1K Head And Potentiometer R1K

Schneider Electric
SKU:
XB5AD912R1K
|
UPC:
3606480985058
Availability:
Contact us to confirm availability and lead times.
$52.56
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
This Harmony XB5, 22mm diameter potentiometer has a resistance of 1kΩ and uses screw clamp terminals. This potentiometer provides an external interface for controlling key parameters of automation components like drives and inverters. It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 IP69 IP69K, making it ideal for operation in harsh environments. It is ideal for analog control (like speed control of motor) via the voltage or resistor input of variable speed drives. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery.
Additional Information
Device Presentation:
complete product
Cad Overall Depth:
82 mm
Resistance To High Pressure Washer:
7000000 Pa 55 °C 0.1 m
Cad Overall Height:
42 mm
Rohs Exemption Information:
Yes
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Potentiometer Characteristic:
linear
Cad Overall Width:
30 mm
Main Group:
potentiometer
Nema Degree Of Protection:
NEMA 13 || NEMA 4X
China Rohs Regulation:
X
Mercury Free:
Yes
Sustainable Offer Status:
Green Premium product
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Ohmic Value:
1000 Ohm
Shape Of Signaling Unit Head:
round
Electrical Shock Protection Class:
class II IEC 60536
Product Certifications:
BV || UL Listed || CSA
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Mechanical Durability:
50000 cycles
Reach Free Of Svhc:
Yes
California Proposition 65:
WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
Precision Of Internal Conversion Resistor:
-0.1
Net Weight:
0.048 kg
Protective Treatment:
TH
Product Or Component Type:
potentiometer
Material:
cermet
Vibration Resistance:
5 gn 2-500 Hz)IEC 60068-2-6
Head Type:
standard
Group Of Product:
potentiometer knurled knob
Product Compatibility:
Ø 6 mm shaft
Sale Per Indivisible Quantity:
1
Ambient Air Temperature For Storage:
-40-70 °C
Ip Degree Of Protection:
IP66 IEC 60529
Colour Of Marking:
white
Rated Power In W:
1 W 70 °C
Shock Resistance:
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Ambient Air Temperature For Operation:
-40-70 °C
Range Of Product:
Harmony XB5
Mounting Diameter:
22 mm
Operator Profile:
knurled knob, with white)
Bezel Material:
dark grey plastic
Standards:
UL 508 || CSA C22.2 No 14 || EN/IEC 60947-1
Device Short Name:
XB5
Ik Degree Of Protection:
IK03 IEC 50102
Circularity Profile:
ENVEOLI1710010EN
Environmental Disclosure:
ENVPEP1710010EN
[Us] Rated Supply Voltage:
<= 30 V AC || <= 42 V DC
