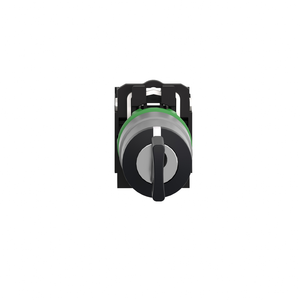

Schneider Electric XB5AG33 Key Selector Switch

(No reviews yet) Write a Review

Write a Review

Schneider Electric XB5AG33 Key Selector Switch

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

XB5AG33

UPC:

3389110903492

MPN:

Condition:

New

Environmental Disclosure:

ENVPEP1710010EN

Resistance To High Pressure Washer:

7000000 Pa 55 °C 0.1 m

Warranty:

18 months

Contacts Type And Composition:

2 NO

[Ui] Rated Insulation Voltage:

600 V 3)IEC 60947-1

Vibration Resistance:

5 gn 2-500 Hz)IEC 60068-2-6

Torque Value:

0.14 N.m NO changing electrical state

Operator Profile:

key switch

Shape Of Screw Head:

cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm

Sale Per Indivisible Quantity:

1

Nema Degree Of Protection:

NEMA 13 || NEMA 4X

Ik Degree Of Protection:

IK04 IEC 50102

Operator Position Information:

3 positions +/- 45°

Ip Degree Of Protection:

IP69 || IP69K || IP66 IEC 60529 || IP67

Net Weight:

0.831 kg

[Ie] Rated Operational Current:

3 A 240 V, AC-15, A600 IEC 60947-5-1 || 6 A 120 V, AC-15, A600 IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 IEC 60947-5-1

Type Of Operator:

stay put

Shock Resistance:

30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Electrical Reliability:

λ < 10exp(-6) 5 V, 1 mA in clean environment IEC 60947-5-4 || λ < 10exp(-8) 17 V, 5 mA in clean environment IEC 60947-5-4

Positive Opening:

without

Mounting Diameter:

22 mm

Depth:

96 mm

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Short-Circuit Protection:

10 A cartridge fuse gG IEC 60947-5-1

Head Type:

standard

Standards:

JIS C8201-5-1 || IEC 60947-5-1 || IEC 60947-5-4 || IEC 60947-1 || CSA C22.2 No 14 || UL 508 || JIS C8201-1

Range Of Product:

Harmony XB5

Device Short Name:

XB5

Contacts Usage:

standard contacts

[Uimp] Rated Impulse Withstand Voltage:

6 kV IEC 60947-1

Shape Of Signaling Unit Head:

round

Contacts Material:

silver alloy (Ag/Ni)

Contact Operation:

slow-break

Product Certifications:

DNV || UL || CSA || LROS (Lloyds register of shipping) || GL || BV

Width:

30 mm

Device Presentation:

complete product

Circularity Profile:

ENVEOLI1710010EN

Height:

42 mm

Mercury Free:

Yes

Key Withdrawal Position:

center

[Ith] Conventional Free Air Thermal Current:

10 A IEC 60947-5-1

Tightening Torque:

0.8-1.2 N.m IEC 60947-1

Sustainable Offer Status:

Green Premium product

Protective Treatment:

TH

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Electrical Shock Protection Class:

class II IEC 60536

Terminals Description Iso N°1:

(13-14)NO

Bezel Material:

dark grey plastic

Ambient Air Temperature For Storage:

-40-70 °C

Ambient Air Temperature For Operation:

-40-70 °C

Type Of Keylock:

key 455

Rohs Exemption Information:

Yes

Product Or Component Type:

selector switch

China Rohs Regulation:

X

Connections - Terminals:

screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Electrical Durability:

1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, DC-13,

Mechanical Durability:

1000000 cycles

Catalog:

View

Datasheet:

View
