Schneider Electric XB5AG41 Key Selector Switch
Schneider Electric
$123.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric

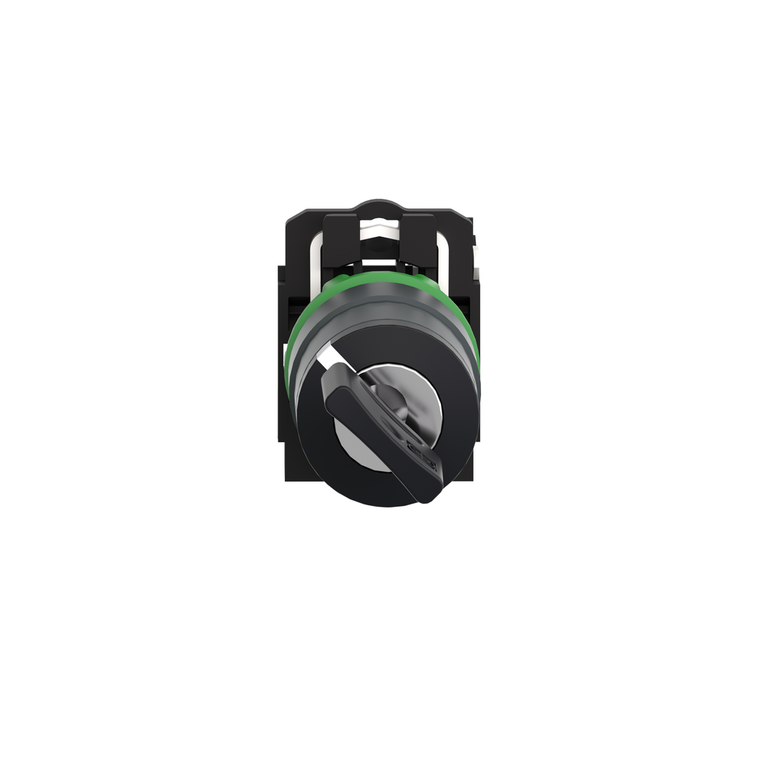

Schneider Electric XB5AG41 Key Selector Switch
This Harmony XB5, modular black key selector switch (key no.455) has 2 positions, operates with a stay-put mechanism with key withdrawal on left and right position and uses screw-clamp terminals. This key selector switch provides a versatile interface for controlling your machines. It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It provides a secure manner for authorized staff to switch between process or machine operating modes. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 and IP69K, making it ideal for operation in harsh environments. Its plastic bezel makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation.
- Mounting Diameter:
- 22 mm
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Head Type:
- standard
- Ik Degree Of Protection:
- IK04 IEC 50102
- Connections - Terminals:
- screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Range Of Product:
- Harmony XB5
- Depth:
- 96 mm
- Standards:
- IEC 60947-5-1 || CSA C22.2 No 14 || UL 508 || IEC 60947-1 || IEC 60947-5-4 || JIS C8201-5-1 || JIS C8201-1
- [Uimp] Rated Impulse Withstand Voltage:
- 6 kV IEC 60947-1
- Device Short Name:
- XB5
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- [Ith] Conventional Free Air Thermal Current:
- 10 A IEC 60947-5-1
- Sustainable Offer Status:
- Green Premium product
- Circularity Profile:
- ENVEOLI1710010EN
- Short-Circuit Protection:
- 10 A cartridge fuse gG IEC 60947-5-1
- Environmental Disclosure:
- ENVPEP1710010EN
- Shape Of Signaling Unit Head:
- round
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Mercury Free:
- Yes
- Torque Value:
- 0.14 N.m NO changing electrical state
- Ip Degree Of Protection:
- IP69 || IP69K || IP66 IEC 60529 || IP67
- Warranty:
- 18 months
- Electrical Reliability:
- λ < 10exp(-6) 5 V, 1 mA in clean environment IEC 60947-5-4 || λ < 10exp(-8) 17 V, 5 mA in clean environment IEC 60947-5-4
- Shape Of Screw Head:
- cross Philips no 1 || cross pozidriv No 1 || slotted flat à 4 mm || slotted flat à 5.5 mm
- Ambient Air Temperature For Storage:
- -40-70 °C
- Electrical Shock Protection Class:
- class II IEC 60536
- Device Presentation:
- complete product
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Type Of Keylock:
- key 455
- Product Or Component Type:
- selector switch
- Protective Treatment:
- TH
- [Ie] Rated Operational Current:
- 3 A 240 V, AC-15, A600 IEC 60947-5-1 || 6 A 120 V, AC-15, A600 IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
- Contacts Type And Composition:
- 1 NO
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Terminals Description Iso N°1:
- (13-14)NO
- Key Withdrawal Position:
- in any position
- Electrical Durability:
- 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, DC-13,
- Contact Operation:
- slow-break
- Operator Profile:
- black key switch
- [Ui] Rated Insulation Voltage:
- 600 V 3)IEC 60947-1
- Operator Position Information:
- 2 positions 90°
- Type Of Operator:
- stay put
- Contacts Material:
- silver alloy (Ag/Ni)
- Bezel Material:
- dark grey plastic
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Ambient Air Temperature For Operation:
- -40-70 °C
- Positive Opening:
- without
- China Rohs Regulation:
- X
- Mechanical Durability:
- 1000000 cycles
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Height:
- 42 mm
- Rohs Exemption Information:
- Yes
- Product Certifications:
- CSA || UL || LROS (Lloyds register of shipping) || BV || GL || DNV
- Sale Per Indivisible Quantity:
- 1
- Width:
- 30 mm
- Tightening Torque:
- 0.8-1.2 N.m IEC 60947-1
- Contacts Usage:
- standard contacts
- Net Weight:
- 0.831 kg
