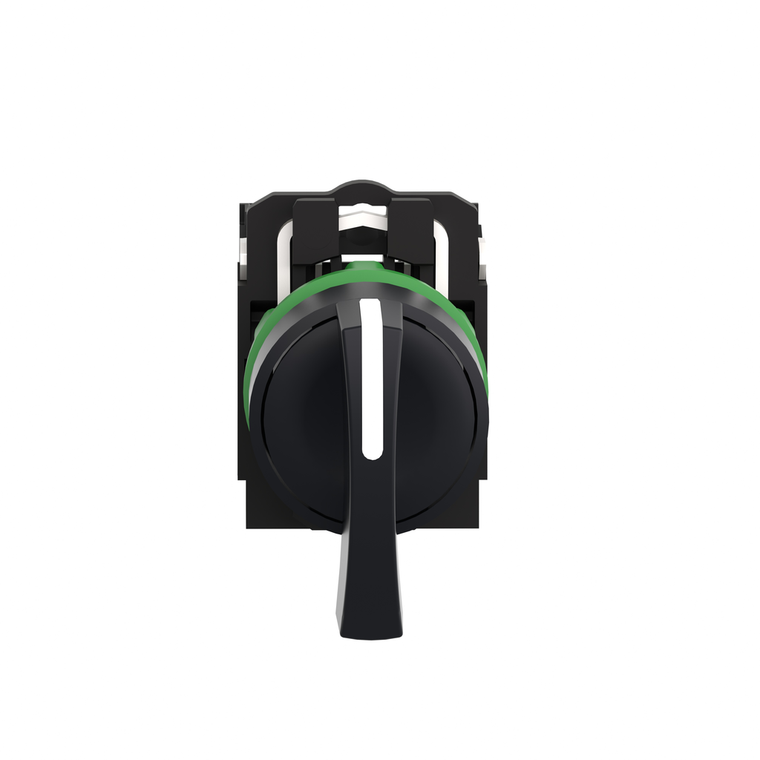

Schneider Electric XB5AJ33 Selector Switch

Schneider Electric XB5AJ33 Selector Switch

Schneider Electric
SKU:
XB5AJ33
|
UPC:
3389110903522
$68.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description

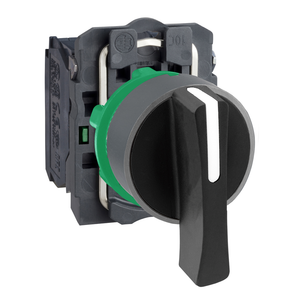

This Harmony XB5, long handle modular black selector switch has 3 positions, operates with a stay-put mechanism and uses screw clamp terminals. This selector switch provides a versatile interface for controlling your machines. It is easily installed into standard 22mm diameter cut-outs and connected to your control circuits with simple screw-clamp connections. It provides an comfortable manner to set your machine in various operating modes. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP69, making it ideal for operation in harsh environments. Its plastic bezel makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation.
Additional Information
Mechanical Durability:
1000000 cycles
Type Of Operator:
stay put
Ik Degree Of Protection:
IK04 IEC 50102
Ambient Air Temperature For Operation:
-40-70 °C
Positive Opening:
without
Vibration Resistance:
5 gn 2-500 Hz)IEC 60068-2-6
[Ui] Rated Insulation Voltage:
600 V 3)IEC 60947-1
Contacts Material:
silver alloy (Ag/Ni)
Shape Of Screw Head:
cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm
Warranty:
18 months
Bezel Material:
dark grey plastic
Net Weight:
0.053 kg
Sustainable Offer Status:
Green Premium product
Contacts Usage:
standard contacts
Electrical Durability:
1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, DC-13,
Circularity Profile:
ENVEOLI1710010EN
Tightening Torque:
0.8-1.2 N.m IEC 60947-1
Sale Per Indivisible Quantity:
1
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Contact Operation:
slow-break
Rohs Exemption Information:
Yes
Standards:
UL 508 || JIS C8201-5-1 || IEC 60947-5-1 || CSA C22.2 No 14 || IEC 60947-1 || IEC 60947-5-4 || JIS C8201-1
Product Or Component Type:
selector switch
Device Presentation:
complete product
Product Certifications:
BV || GL || LROS (Lloyds register of shipping) || UL || DNV || CSA
Mercury Free:
Yes
Torque Value:
0.14 N.m NO changing electrical state
Environmental Disclosure:
ENVPEP1710010EN
Electrical Reliability:
λ < 10exp(-6) 5 V, 1 mA in clean environment IEC 60947-5-4 || λ < 10exp(-8) 17 V, 5 mA in clean environment IEC 60947-5-4
Mounting Diameter:
22 mm
Toxic Heavy Metal Free:
Yes
China Rohs Regulation:
X
Reach Free Of Svhc:
Yes
[Uimp] Rated Impulse Withstand Voltage:
6 kV IEC 60947-1
Contacts Type And Composition:
2 NO
Width:
30 mm
Terminals Description Iso N°1:
(13-14)NO
Head Type:
standard
[Ie] Rated Operational Current:
3 A 240 V, AC-15, A600 IEC 60947-5-1 || 6 A 120 V, AC-15, A600 IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
Shape Of Signaling Unit Head:
round
Height:
48 mm
Resistance To High Pressure Washer:
7000000 Pa 55 °C 0.1 m
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Nema Degree Of Protection:
NEMA 13 || NEMA 4X
Operator Profile:
black long handle
Range Of Product:
Harmony XB5
Operator Position Information:
3 positions +/- 45°
[Ith] Conventional Free Air Thermal Current:
10 A IEC 60947-5-1
Connections - Terminals:
screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1
Protective Treatment:
TH
Depth:
70 mm
Electrical Shock Protection Class:
class II IEC 60536
Ip Degree Of Protection:
IP67 IEC 60529 || IP69 || IP69K
Ambient Air Temperature For Storage:
-40-70 °C
Short-Circuit Protection:
10 A cartridge fuse gG IEC 60947-5-1
Shock Resistance:
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Device Short Name:
XB5
California Proposition 65:
WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Reach Regulation:
Free of Substances of Very High Concern above the threshold
