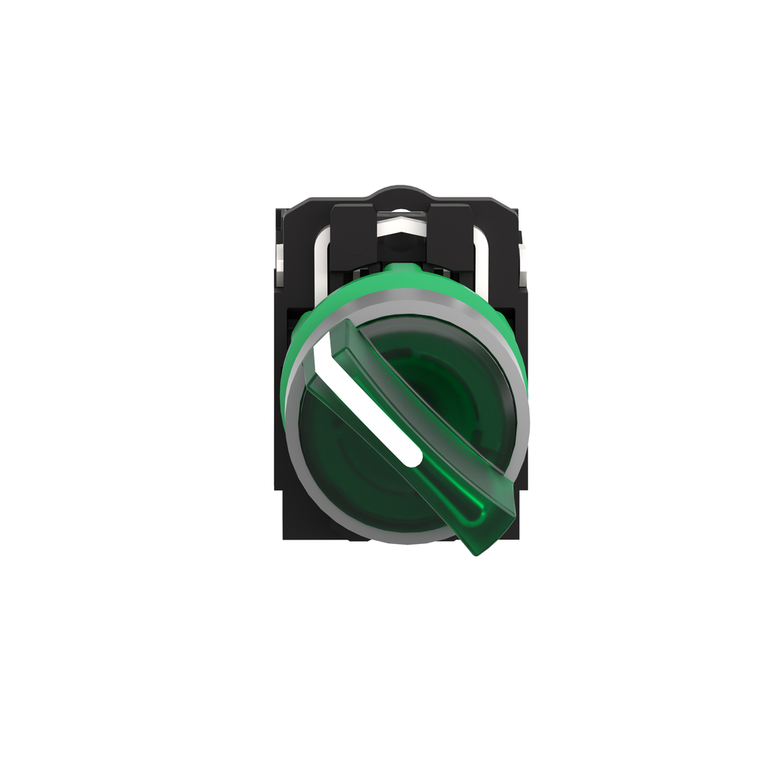

Schneider Electric XB5AK123G5C0 Illuminated Pushbutton

(No reviews yet) Write a Review

Write a Review

Schneider Electric XB5AK123G5C0 Illuminated Pushbutton

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

XB5AK123G5C0

UPC:

3606489758493

MPN:

Condition:

New

Light Source:

universal LED

Resistance To Fast Transients:

2 kV IEC 61000-4-4

Rohs Exemption Information:

Yes

Protective Treatment:

TH

Contacts Type And Composition:

1 NO + 1 NC

Tightening Torque:

0.8-1.2 N.m EN 60947-1

Depth:

70 mm

Signalling Type:

steady

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Mounting Diameter:

22 mm

Mechanical Durability:

1000000 cycles

Resistance To Electrostatic Discharge:

6 kV on contact (on metal parts) IEC 61000-4-2 || 8 kV in free air (in insulating parts) IEC 61000-4-2

Ip Degree Of Protection:

IP66 IEC 60529 || IP67 IEC 60529

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Vibration Resistance:

5 gn 2-500 Hz)IEC 60068-2-6

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Short-Circuit Protection:

10 A cartridge fuse gG EN/IEC 60947-5-1

Surge Withstand:

1 kV IEC 61000-4-5

Connections - Terminals:

screw clamp terminals, <= 2 x 1.5 mm² with cable end EN/IEC 60947-1 || screw clamp terminals, >= 1 x 0.22 mm² without cable end EN/IEC 60947-1

Ambient Air Temperature For Storage:

-40-70 °C

Mercury Free:

Yes

[Ie] Rated Operational Current:

3 A 240 V, AC-15, A600 EN/IEC 60947-5-1 || 6 A 120 V, AC-15, A600 EN/IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 EN/IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 EN

Service Life:

100000 h at rated voltage and 25 °C

China Rohs Regulation:

X

Resistance To High Pressure Washer:

7000000 Pa 55 °C 0.1 m

Device Presentation:

complete product

Nema Degree Of Protection:

NEMA 13 || NEMA 4X

Product Certifications:

BV || CSA || UL || LROS (Lloyds register of shipping) || DNV || GL

Resistance To Electromagnetic Fields:

10 V/m IEC 61000-4-3

Operator Profile:

green standard handle

Contact Operation:

slow-break

Width:

30 mm

Electromagnetic Emission:

class B IEC 55011

Net Weight:

0.516 kg

Bezel Material:

plastic colour plated grey

Positive Opening:

with EN/IEC 60947-5-1 appendix K

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Type Of Operator:

stay put

Height:

42 mm

Operating Torque:

0.14 N.m NO changing electrical state

Operator Position Information:

2 positions 90°

Contacts Usage:

standard contacts

Standards:

EN/IEC 60947-5-1 || CSA C22.2 No 14 || JIS C8201-5-1 || UL 508 || EN/IEC 60947-1 || EN/IEC 60947-5-4 || JIS C8201-1

Important Message:

A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks

Shape Of Signaling Unit Head:

round

Bulb Base:

integral LED

Shape Of Screw Head:

cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm

[Ith] Conventional Free Air Thermal Current:

10 A EN/IEC 60947-5-1

Device Short Name:

XB5

[Uimp] Rated Impulse Withstand Voltage:

6 kV EN 60947-1

[Us] Rated Supply Voltage:

110...120 V AC 50/60 Hz

Electrical Reliability:

λ < 10exp(-6) 5 V 1 mA in clean environment EN/IEC 60947-5-4 || λ < 10exp(-8) 17 V 5 mA in clean environment EN/IEC 60947-5-4

Supply Voltage Limits:

100-132 V AC

[Ui] Rated Insulation Voltage:

600 V 3)EN 60947-1

Head Type:

standard

Range Of Product:

Harmony XB5

Contacts Material:

silver alloy (Ag/Ni)

Terminals Description Iso N°1:

(11-12)NC || (13-14)NO

Current Consumption:

14 mA

Electrical Durability:

1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles

Sale Per Indivisible Quantity:

1

Electrical Shock Protection Class:

class II IEC 60536

Shock Resistance:

30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Ik Degree Of Protection:

IK04 IEC 50102

Ambient Air Temperature For Operation:

-40-70 °C

Product Or Component Type:

illuminated selector switch
