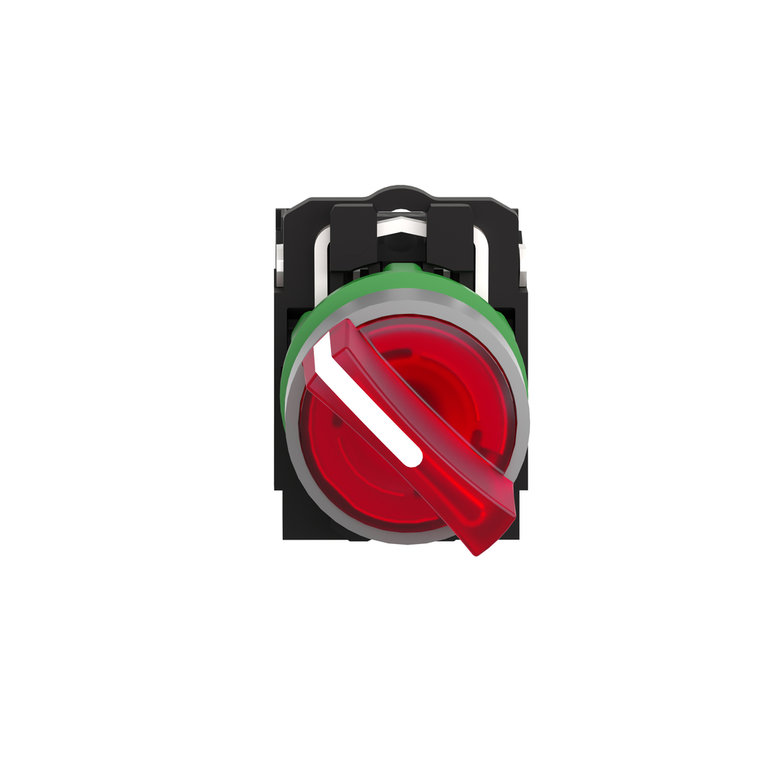

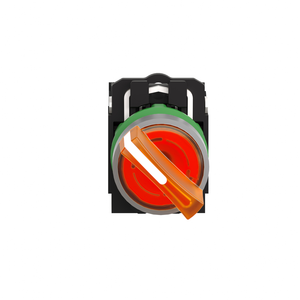

Schneider Electric XB5AK124G5C0 Illuminated Pushbutton

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric XB5AK124G5C0 Illuminated Pushbutton

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

XB5AK124G5C0

UPC:

3606489758554

MPN:

Condition:

New

[Ith] Conventional Free Air Thermal Current:

10 A IEC 60947-5-1

Resistance To High Pressure Washer:

7000000 Pa 55 °C 0.1 m

Operator Profile:

red standard handle

Shape Of Signaling Unit Head:

round

Protective Treatment:

TH

Positive Opening:

with IEC 60947-5-1 appendix K

Operating Torque:

0.14 N.m NO changing electrical state

[Us] Rated Supply Voltage:

110...120 V AC 50/60 Hz

Device Presentation:

complete product

Shock Resistance:

30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Current Consumption:

14 mA

Depth:

70 mm

Electrical Durability:

1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, DC-13,

Ip Degree Of Protection:

IP66 IEC 60529 || IP67 IEC 60529

Rohs Exemption Information:

Yes

Bezel Material:

plastic colour plated grey

Operator Position Information:

2 positions 90°

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Connections - Terminals:

screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1

Terminals Description Iso N°1:

(13-14)NO || (11-12)NC

Resistance To Fast Transients:

2 kV IEC 61000-4-4

[Ui] Rated Insulation Voltage:

600 V 3)IEC 60947-1

Contacts Usage:

standard contacts

Standards:

UL 508 || IEC 60947-1 || IEC 60947-5-4 || CSA C22.2 No 14 || JIS C8201-5-1 || IEC 60947-5-1 || JIS C8201-1

Product Certifications:

GL || LROS (Lloyds register of shipping) || BV || UL || CSA || DNV

Contact Operation:

slow-break

Mechanical Durability:

1000000 cycles

Height:

42 mm

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Range Of Product:

Harmony XB5

Resistance To Electromagnetic Fields:

10 V/m IEC 61000-4-3

Width:

30 mm

Mercury Free:

Yes

Short-Circuit Protection:

10 A cartridge fuse gG IEC 60947-5-1

Vibration Resistance:

5 gn 2-500 Hz)IEC 60068-2-6

China Rohs Regulation:

X

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Electrical Shock Protection Class:

class II IEC 60536

Supply Voltage Limits:

100-132 V AC

Ik Degree Of Protection:

IK04 IEC 50102

Type Of Operator:

stay put

Light Source:

universal LED

Electrical Reliability:

λ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4 || λ < 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4

[Ie] Rated Operational Current:

3 A 240 V, AC-15, A600 IEC 60947-5-1 || 6 A 120 V, AC-15, A600 IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 IEC 60947-5-1

Mounting Diameter:

22 mm

Electromagnetic Emission:

class B IEC 55011

Ambient Air Temperature For Storage:

-40-70 °C

Shape Of Screw Head:

cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm

Head Type:

standard

Ambient Air Temperature For Operation:

-40-70 °C

Product Or Component Type:

illuminated selector switch

Resistance To Electrostatic Discharge:

6 kV on contact (on metal parts) IEC 61000-4-2 || 8 kV in free air (in insulating parts) IEC 61000-4-2

Bulb Base:

integral LED

Net Weight:

0.516 kg

Important Message:

A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks

Tightening Torque:

0.8-1.2 N.m IEC 60947-1

Contacts Material:

silver alloy (Ag/Ni)

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Service Life:

100000 h at rated voltage and 25 °C

Sale Per Indivisible Quantity:

1

Signalling Type:

steady

Contacts Type And Composition:

1 NO + 1 NC

Device Short Name:

XB5

[Uimp] Rated Impulse Withstand Voltage:

6 kV IEC 60947-1

Surge Withstand:

1 kV IEC 61000-4-5

Nema Degree Of Protection:

NEMA 13 || NEMA 4X
