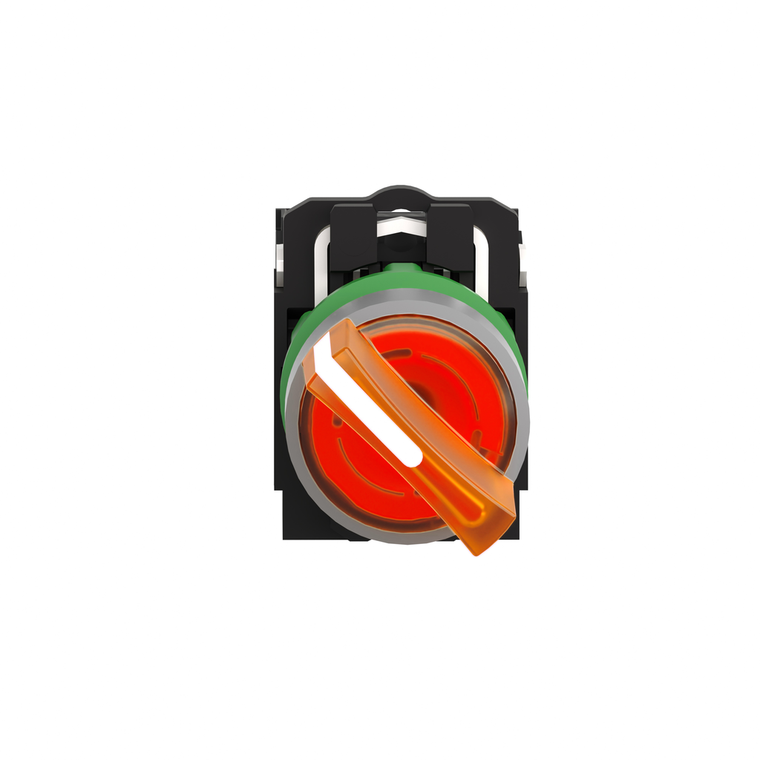

Schneider Electric XB5AK125M5C0 Illuminated Pushbutton

(No reviews yet) Write a Review

Write a Review

Schneider Electric XB5AK125M5C0 Illuminated Pushbutton

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

XB5AK125M5C0

UPC:

3606489758639

MPN:

Condition:

New

Contact Operation:

slow-break

Resistance To Fast Transients:

2 kV IEC 61000-4-4

Protective Treatment:

TH

China Rohs Regulation:

X

Resistance To High Pressure Washer:

7000000 Pa 55 °C 0.1 m

Resistance To Electrostatic Discharge:

6 kV on contact (on metal parts) IEC 61000-4-2 || 8 kV in free air (in insulating parts) IEC 61000-4-2

Short-Circuit Protection:

10 A cartridge fuse gG EN/IEC 60947-5-1

Electrical Durability:

1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Contacts Usage:

standard contacts

Bulb Base:

integral LED

Contacts Type And Composition:

1 NO + 1 NC

Service Life:

100000 h at rated voltage and 25 °C

Bezel Material:

plastic colour plated grey

Sale Per Indivisible Quantity:

1

Ip Degree Of Protection:

IP66 IEC 60529 || IP67 IEC 60529

Ik Degree Of Protection:

IK04 IEC 50102

Range Of Product:

Harmony XB5

Nema Degree Of Protection:

NEMA 13 || NEMA 4X

Rohs Exemption Information:

Yes

Operator Position Information:

2 positions 90°

Depth:

70 mm

Product Certifications:

LROS (Lloyds register of shipping) || UL || CSA || DNV || GL || BV

Operating Torque:

0.14 N.m NO changing electrical state

Height:

42 mm

Connections - Terminals:

screw clamp terminals, <= 2 x 1.5 mm² with cable end EN/IEC 60947-1 || screw clamp terminals, >= 1 x 0.22 mm² without cable end EN/IEC 60947-1

Current Consumption:

14 mA

Important Message:

A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks

Contacts Material:

silver alloy (Ag/Ni)

Type Of Operator:

stay put

Product Or Component Type:

illuminated selector switch

Width:

30 mm

Surge Withstand:

1 kV IEC 61000-4-5

Head Type:

standard

Ambient Air Temperature For Operation:

-40-70 °C

Electrical Shock Protection Class:

class II IEC 60536

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Ambient Air Temperature For Storage:

-40-70 °C

[Uimp] Rated Impulse Withstand Voltage:

6 kV EN 60947-1

Mercury Free:

Yes

[Ui] Rated Insulation Voltage:

600 V 3)EN 60947-1

[Ie] Rated Operational Current:

3 A 240 V, AC-15, A600 EN/IEC 60947-5-1 || 6 A 120 V, AC-15, A600 EN/IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 EN/IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 EN

Electromagnetic Emission:

class B IEC 55011

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Standards:

EN/IEC 60947-5-4 || EN/IEC 60947-5-1 || CSA C22.2 No 14 || JIS C8201-5-1 || EN/IEC 60947-1 || UL 508 || JIS C8201-1

Device Presentation:

complete product

Shape Of Signaling Unit Head:

round

Vibration Resistance:

5 gn 2-500 Hz)IEC 60068-2-6

Mechanical Durability:

1000000 cycles

[Us] Rated Supply Voltage:

230...240 V AC 50/60 Hz

Tightening Torque:

0.8-1.2 N.m EN 60947-1

Operator Profile:

orange standard handle

Terminals Description Iso N°1:

(11-12)NC || (13-14)NO

Device Short Name:

XB5

Shock Resistance:

30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Electrical Reliability:

λ < 10exp(-6) 5 V 1 mA in clean environment EN/IEC 60947-5-4 || λ < 10exp(-8) 17 V 5 mA in clean environment EN/IEC 60947-5-4

Shape Of Screw Head:

cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm

[Ith] Conventional Free Air Thermal Current:

10 A EN/IEC 60947-5-1

Net Weight:

0.516 kg

Light Source:

universal LED

Resistance To Electromagnetic Fields:

10 V/m IEC 61000-4-3

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Signalling Type:

steady

Supply Voltage Limits:

195-264 V AC

Mounting Diameter:

22 mm

Positive Opening:

with EN/IEC 60947-5-1 appendix K
