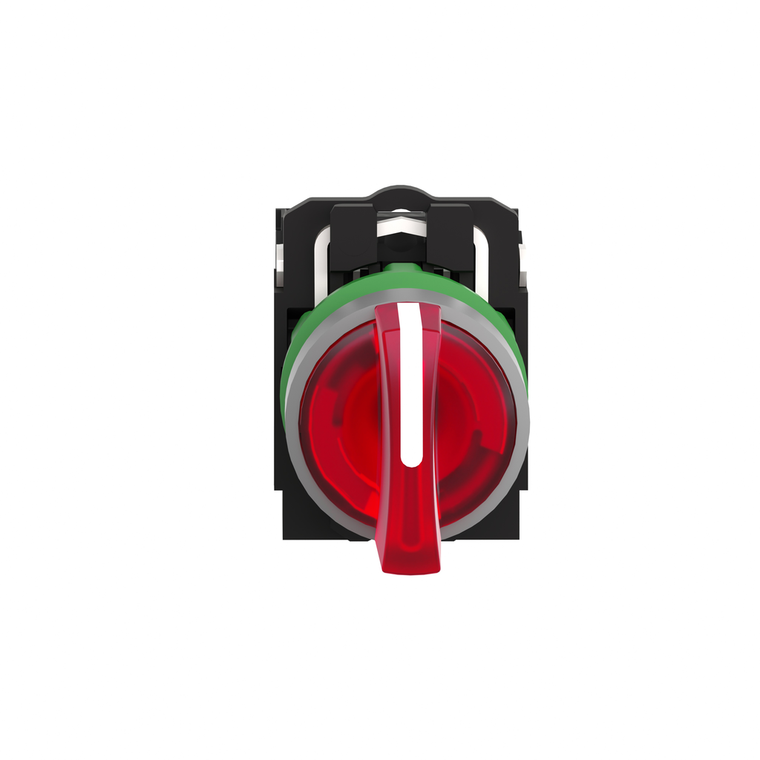

Schneider Electric XB5AK134M5C0 Illuminated Selector Switch 3 Stay Put

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric XB5AK134M5C0 Illuminated Selector Switch 3 Stay Put

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

XB5AK134M5C0

UPC:

3606489758752

MPN:

Condition:

New

Service Life:

100000 h at rated voltage and 25 °C

Product Or Component Type:

illuminated selector switch

Mechanical Durability:

500000 cycles

Shape Of Screw Head:

cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm

Tightening Torque:

0.8-1.2 N.m IEC 60947-1

Resistance To Electrostatic Discharge:

6 kV on contact (on metal parts) IEC 61000-4-2 || 8 kV in free air (in insulating parts) IEC 61000-4-2

Protective Treatment:

TH

Net Weight:

0.516 kg

Resistance To Fast Transients:

2 kV IEC 61000-4-4

Ik Degree Of Protection:

IK05 IEC 50102

[Ie] Rated Operational Current:

3 A 240 V, AC-15, A600 IEC 60947-5-1 || 6 A 120 V, AC-15, A600 IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 IEC 60947-5-1

Bulb Base:

integral LED

Mounting Diameter:

22 mm

Ip Degree Of Protection:

IP66 IEC 60529 || IP67 IEC 60529

Electromagnetic Emission:

class B IEC 55011

Light Source:

universal LED

Operating Torque:

0.14 N.m NO changing electrical state

Bezel Material:

plastic colour plated grey

Standards:

IEC 60947-5-4 || IEC 60947-5-1 || CSA C22.2 No 14 || IEC 60947-1 || JIS C8201-5-1 || UL 508 || JIS C8201-1

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Type Of Operator:

stay put

Operator Profile:

red standard handle

[Uimp] Rated Impulse Withstand Voltage:

6 kV IEC 60947-1

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Head Type:

standard

Contacts Usage:

standard contacts

[Ith] Conventional Free Air Thermal Current:

10 A IEC 60947-5-1

Sale Per Indivisible Quantity:

1

Rohs Exemption Information:

Yes

Short-Circuit Protection:

10 A cartridge fuse gG IEC 60947-5-1

Current Consumption:

14 mA

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Resistance To Electromagnetic Fields:

10 V/m IEC 61000-4-3

Connections - Terminals:

screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1

Mercury Free:

Yes

Terminals Description Iso N°1:

(13-14)NO || (11-12)NC

Surge Withstand:

1 kV IEC 61000-4-5

Vibration Resistance:

5 gn 2-500 Hz)IEC 60068-2-6

China Rohs Regulation:

X

Height:

42 mm

Shape Of Signaling Unit Head:

round

Operator Position Information:

3 positions +/- 45°

Range Of Product:

Harmony XB5

Ambient Air Temperature For Storage:

-40-70 °C

Resistance To High Pressure Washer:

7000000 Pa 55 °C 0.1 m

Device Presentation:

complete product

Contacts Type And Composition:

1 NO + 1 NC

[Ui] Rated Insulation Voltage:

600 V 3)IEC 60947-1

Contacts Material:

silver alloy (Ag/Ni)

Electrical Reliability:

λ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4 || λ < 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4

Contact Operation:

slow-break

Nema Degree Of Protection:

NEMA 13 || NEMA 4X

[Us] Rated Supply Voltage:

230...240 V AC 50/60 Hz

Supply Voltage Limits:

195-264 V AC

Width:

30 mm

Depth:

70 mm

Product Certifications:

LROS (Lloyds register of shipping) || GL || UL || DNV || BV || CSA

Electrical Durability:

1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, DC-13,

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Device Short Name:

XB5

Ambient Air Temperature For Operation:

-40-70 °C

Signalling Type:

steady

Electrical Shock Protection Class:

class II IEC 60536

Positive Opening:

with IEC 60947-5-1 appendix K

Shock Resistance:

30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Important Message:

A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
