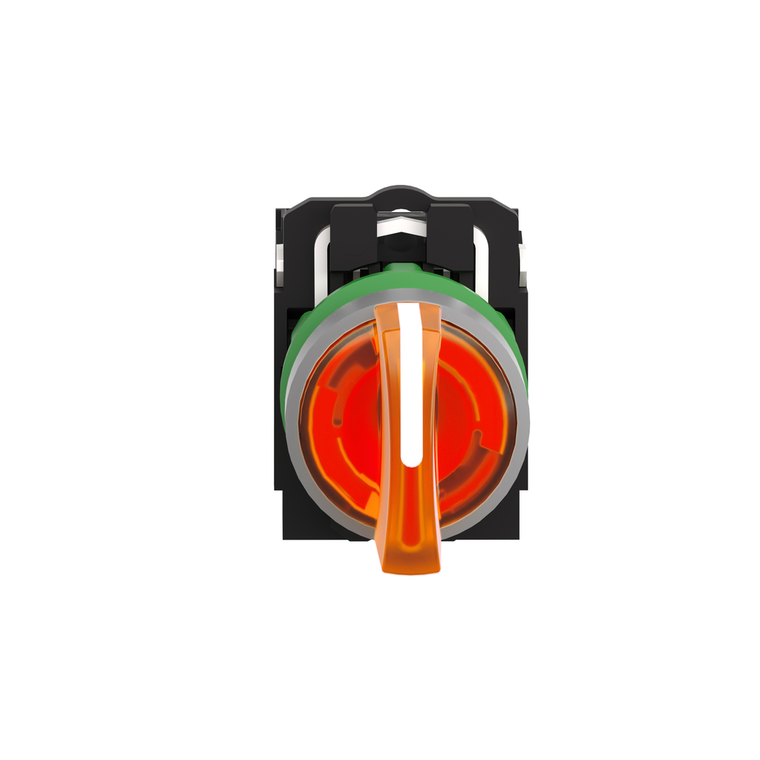

Schneider Electric XB5AK135B5C0 Illuminated Selector Switch 3 Stay Put

Schneider Electric XB5AK135B5C0 Illuminated Selector Switch 3 Stay Put

Schneider Electric
SKU:
XB5AK135B5C0
|
UPC:
3606489758776
$68.99
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description
This illuminated selector switch provides a versatile and highly visible interface for controlling your machines. It is easily installed into standard 22mm cut-outs and connected to your control circuits with simple screw-clamp connections. It provides a clear help to set up your machines in various operating modes, even in darker rooms with clear visual feedback.
Additional Information
Bezel Material:
plastic colour plated grey
Resistance To High Pressure Washer:
7000000 Pa 55 °C 0.1 m
Ambient Air Temperature For Operation:
-40-70 °C
Vibration Resistance:
5 gn 2-500 Hz)IEC 60068-2-6
Short-Circuit Protection:
10 A cartridge fuse gG IEC 60947-5-1
Supply Voltage Limits:
19.2-30 V DC || 21.6-26.4 V AC
Ik Degree Of Protection:
IK05 IEC 50102
Height:
42 mm
Nema Degree Of Protection:
NEMA 13 || NEMA 4X
Resistance To Fast Transients:
2 kV IEC 61000-4-4
Terminals Description Iso N°1:
(13-14)NO || (11-12)NC
Depth:
70 mm
China Rohs Regulation:
X
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Width:
30 mm
Contact Operation:
slow-break
[Us] Rated Supply Voltage:
24 V AC/DC 50/60 Hz
Contacts Usage:
standard contacts
Device Presentation:
complete product
Contacts Material:
silver alloy (Ag/Ni)
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Rohs Exemption Information:
Yes
Product Certifications:
CSA || BV || GL || LROS (Lloyds register of shipping) || DNV || UL
Electrical Shock Protection Class:
class II IEC 60536
Service Life:
100000 h at rated voltage and 25 °C
[Ith] Conventional Free Air Thermal Current:
10 A IEC 60947-5-1
Light Source:
universal LED
Operator Profile:
orange standard handle
Shock Resistance:
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Electromagnetic Emission:
class B IEC 55011
Operator Position Information:
3 positions +/- 45°
Resistance To Electrostatic Discharge:
6 kV on contact (on metal parts) IEC 61000-4-2 || 8 kV in free air (in insulating parts) IEC 61000-4-2
Signalling Type:
steady
Contacts Type And Composition:
1 NO + 1 NC
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Protective Treatment:
TH
Surge Withstand:
1 kV IEC 61000-4-5
Product Or Component Type:
illuminated selector switch
Electrical Reliability:
λ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4 || λ < 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4
Head Type:
standard
Type Of Operator:
stay put
Mercury Free:
Yes
[Uimp] Rated Impulse Withstand Voltage:
6 kV IEC 60947-1
Shape Of Signaling Unit Head:
round
Resistance To Electromagnetic Fields:
10 V/m IEC 61000-4-3
Ambient Air Temperature For Storage:
-40-70 °C
Range Of Product:
Harmony XB5
Connections - Terminals:
screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1
Device Short Name:
XB5
Sale Per Indivisible Quantity:
1
Operating Torque:
0.14 N.m NO changing electrical state
Ip Degree Of Protection:
IP66 IEC 60529 || IP67 IEC 60529
Tightening Torque:
0.8-1.2 N.m IEC 60947-1
[Ie] Rated Operational Current:
3 A 240 V, AC-15, A600 IEC 60947-5-1 || 6 A 120 V, AC-15, A600 IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
[Ui] Rated Insulation Voltage:
600 V 3)IEC 60947-1
Positive Opening:
with IEC 60947-5-1 appendix K
Important Message:
A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
Electrical Durability:
1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, DC-13,
Current Consumption:
18 mA
Mounting Diameter:
22 mm
Bulb Base:
integral LED
Shape Of Screw Head:
cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm
Standards:
UL 508 || IEC 60947-1 || JIS C8201-5-1 || IEC 60947-5-4 || CSA C22.2 No 14 || IEC 60947-5-1 || JIS C8201-1
Net Weight:
0.516 kg
Mechanical Durability:
500000 cycles
Datasheet:
View
