Schneider Electric XB5AK135M5C0 Illuminated Selector Switch 3 Stay Put

(No reviews yet) Write a Review

Write a Review

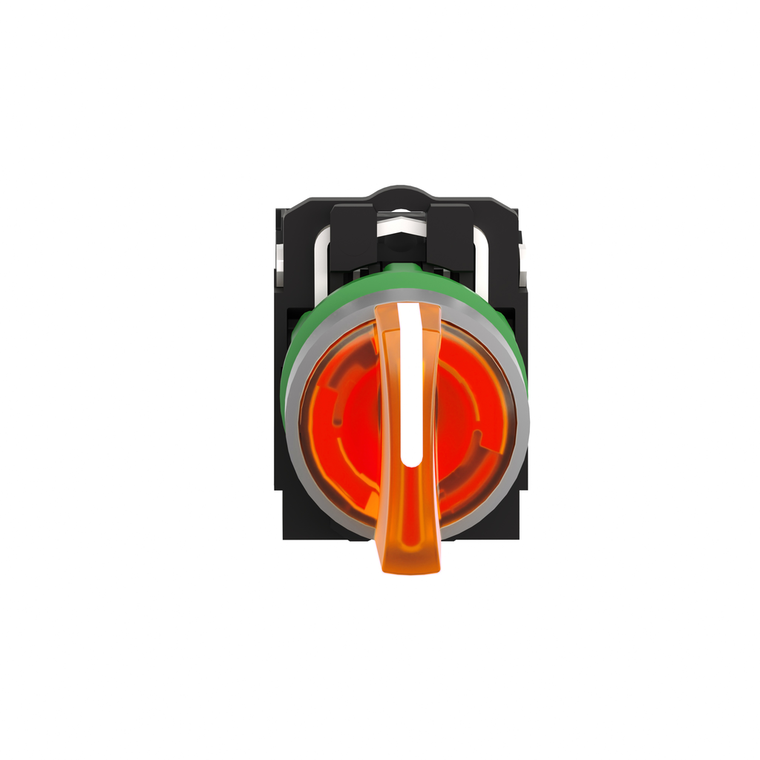

Schneider Electric XB5AK135M5C0 Illuminated Selector Switch 3 Stay Put

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

XB5AK135M5C0

UPC:

3606489758813

MPN:

Condition:

New

Resistance To Electrostatic Discharge:

6 kV on contact (on metal parts) IEC 61000-4-2 || 8 kV in free air (in insulating parts) IEC 61000-4-2

Resistance To High Pressure Washer:

7000000 Pa 55 °C 0.1 m

Height:

42 mm

Ambient Air Temperature For Operation:

-40-70 °C

Nema Degree Of Protection:

NEMA 13 || NEMA 4X

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Type Of Operator:

stay put

Ambient Air Temperature For Storage:

-40-70 °C

Bulb Base:

integral LED

Contact Operation:

slow-break

Resistance To Fast Transients:

2 kV IEC 61000-4-4

Important Message:

A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks

Shape Of Screw Head:

cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm

Rohs Exemption Information:

Yes

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Ip Degree Of Protection:

IP66 IEC 60529 || IP67 IEC 60529

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Short-Circuit Protection:

10 A cartridge fuse gG EN/IEC 60947-5-1

Shock Resistance:

30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Operator Position Information:

3 positions +/- 45°

[Ui] Rated Insulation Voltage:

600 V 3)EN 60947-1

Device Short Name:

XB5

Electromagnetic Emission:

class B IEC 55011

Width:

30 mm

Positive Opening:

with EN/IEC 60947-5-1 appendix K

Product Certifications:

GL || UL || BV || CSA || DNV || LROS (Lloyds register of shipping)

Standards:

EN/IEC 60947-1 || EN/IEC 60947-5-4 || CSA C22.2 No 14 || UL 508 || JIS C8201-5-1 || EN/IEC 60947-5-1 || JIS C8201-1

Depth:

70 mm

Terminals Description Iso N°1:

(11-12)NC || (13-14)NO

Contacts Type And Composition:

1 NO + 1 NC

Connections - Terminals:

screw clamp terminals, <= 2 x 1.5 mm² with cable end EN/IEC 60947-1 || screw clamp terminals, >= 1 x 0.22 mm² without cable end EN/IEC 60947-1

Range Of Product:

Harmony XB5

Electrical Shock Protection Class:

class II IEC 60536

Electrical Durability:

1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles

Device Presentation:

complete product

Surge Withstand:

1 kV IEC 61000-4-5

Bezel Material:

plastic colour plated grey

China Rohs Regulation:

X

Operator Profile:

orange standard handle

Head Type:

standard

Mechanical Durability:

500000 cycles

Contacts Material:

silver alloy (Ag/Ni)

Shape Of Signaling Unit Head:

round

Vibration Resistance:

5 gn 2-500 Hz)IEC 60068-2-6

Electrical Reliability:

λ < 10exp(-6) 5 V 1 mA in clean environment EN/IEC 60947-5-4 || λ < 10exp(-8) 17 V 5 mA in clean environment EN/IEC 60947-5-4

Resistance To Electromagnetic Fields:

10 V/m IEC 61000-4-3

Contacts Usage:

standard contacts

Signalling Type:

steady

Supply Voltage Limits:

195-264 V AC

Current Consumption:

14 mA

Product Or Component Type:

illuminated selector switch

Sale Per Indivisible Quantity:

1

Light Source:

universal LED

Service Life:

100000 h at rated voltage and 25 °C

Mounting Diameter:

22 mm

Protective Treatment:

TH

Net Weight:

0.516 kg

Operating Torque:

0.14 N.m NO changing electrical state

Ik Degree Of Protection:

IK05 IEC 50102

Mercury Free:

Yes

[Ie] Rated Operational Current:

3 A 240 V, AC-15, A600 EN/IEC 60947-5-1 || 6 A 120 V, AC-15, A600 EN/IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 EN/IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 EN

[Us] Rated Supply Voltage:

230...240 V AC 50/60 Hz

Tightening Torque:

0.8-1.2 N.m EN 60947-1

[Uimp] Rated Impulse Withstand Voltage:

6 kV EN 60947-1

[Ith] Conventional Free Air Thermal Current:

10 A EN/IEC 60947-5-1
