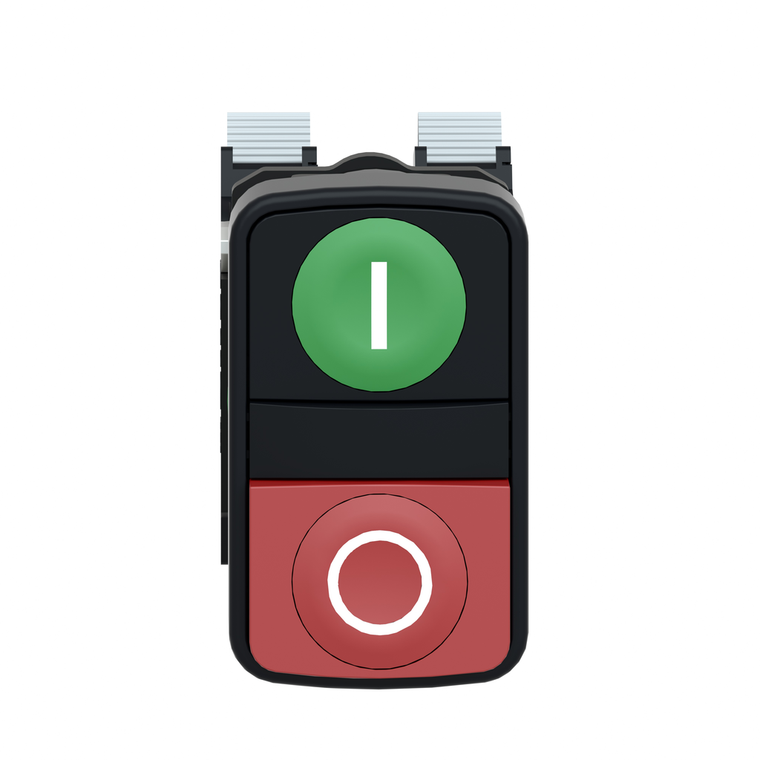

Schneider Electric XB5AL734155 Blk And Red Dble Pushbutt Spr Clamp Cont

Schneider Electric XB5AL734155 Blk And Red Dble Pushbutt Spr Clamp Cont

Schneider Electric
SKU:
XB5AL734155
|
UPC:
3389119607896
$95.00
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description
This double-headed push-button provides a complete 2 button interface to your machines with a single panel cut-out It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP67 / IP69 / IP69K, making it ideal for operation in harsh environments It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections High performance International standards & certifications (Marine ABS certification, IP66, Type 1, 2, 3, 3R, 4, 12 and 13)
Additional Information
Width:
30 mm
Operators Description:
black ''I'' - red ''O''
Rohs Exemption Information:
Yes
Device Presentation:
complete product
Protective Treatment:
TH
[Ith] Conventional Free Air Thermal Current:
10 A IEC 60947-5-1
Operating Force:
3.5 N NC changing electrical state || 3.8 N NO changing electrical state
Colour Of Marking:
white marking when green, red or black caps || black marking when white caps
Ambient Air Temperature For Operation:
-25-70 °C
Shock Resistance:
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Mounting Diameter:
22 mm
Type Of Operator:
spring return
[Ui] Rated Insulation Voltage:
600 V 3)IEC 60947-1
Terminals Description Iso N°1:
(13-14)NO || (21-22)NC
Operator Profile:
1 flush - 1 projecting push-buttons
Operating Travel:
1.5 mm NC changing electrical state) || 2.6 mm NO changing electrical state) || 4.3 mm total travel)
Device Short Name:
XB5
Positive Opening:
with IEC 60947-5-1 appendix K
Range Of Product:
Harmony XB5
[Uimp] Rated Impulse Withstand Voltage:
6 kV IEC 60947-1
Bezel Material:
dark grey plastic
Net Weight:
0.053 kg
Resistance To High Pressure Washer:
7000000 Pa 55 °C 0.1 m
Overvoltage Category:
class II IEC 60536
Product Certifications:
UL Listed || LROS (Lloyds register of shipping) || GL || DNV || BV || CSA
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Connections - Terminals:
screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1
Ik Degree Of Protection:
IK03 IEC 50102
Nema Degree Of Protection:
NEMA 13 || NEMA 4X
Ambient Air Temperature For Storage:
-40-70 °C
Contacts Material:
silver alloy (Ag/Ni)
Product Or Component Type:
double-headed push-button
Shape Of Screw Head:
cross JIS No 1
Fixing Collar Material:
plastic
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Contact Operation:
slow-break
Contacts Type And Composition:
1 NO + 1 NC
Ip Degree Of Protection:
IP67 IEC 60529 || IP69 || IP69K
Contacts Usage:
standard contacts
[Ie] Rated Operational Current:
3 A 240 V, AC-15, A600 IEC 60947-5-1 || 6 A 120 V, AC-15, A600 IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
Standards:
IEC 60947-5-4 || UL 508 || JIS C8201-5-1 || IEC 60947-5-1 || IEC 60947-1 || CSA C22.2 No 14 || JIS C8201-1
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Depth:
59 mm
Operator Profile:
red projecting, O white) || black flush, I white)
China Rohs Regulation:
X
Short-Circuit Protection:
10 A cartridge fuse gG IEC 60947-5-1
Shape Of Signaling Unit Head:
rectangular
Sustainable Offer Status:
Green Premium product
Mercury Free:
Yes
Mechanical Durability:
1000000 cycles
Environmental Disclosure:
ENVPEP1710010EN
Head Type:
standard
Vibration Resistance:
5 gn 2-500 Hz)IEC 60068-2-6
Electrical Reliability:
λ < 10exp(-6) 5 V, 1 mA in clean environment IEC 60947-5-4 || λ < 10exp(-8) 17 V, 5 mA in clean environment IEC 60947-5-4
Electrical Durability:
1000000 cycles AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles DC-13, 0.2
Warranty:
18 months
Height:
50 mm
Circularity Profile:
ENVEOLI1710010EN
Brochure:
View
Datasheet:
View
