Schneider Electric XB5AS9442 D40 Emergency Stop Kr 455E

Schneider Electric XB5AS9442 D40 Emergency Stop Kr 455E

Schneider Electric
SKU:
XB5AS9442
|
UPC:
3606480623677
Availability:
Contact us to confirm availability and lead times.
$147.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description

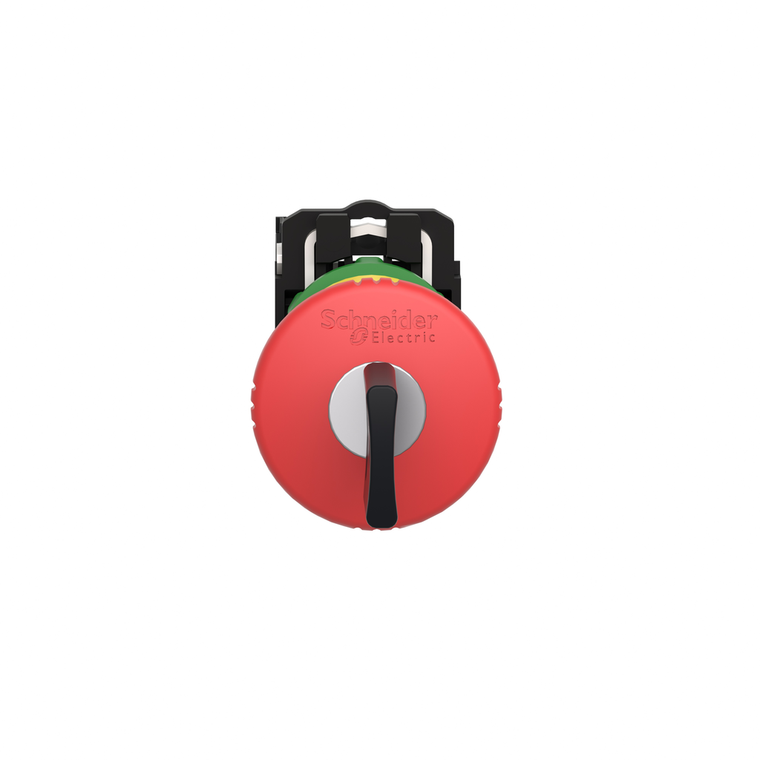

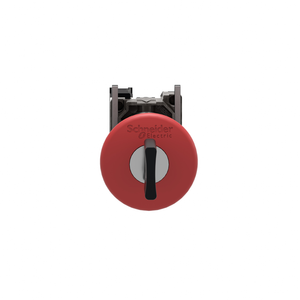

This Harmony XB5, emergency stop / shutdown 40mm mushroom head modular red push button operates with a latched key release (key no.455) mechanism and uses screw-clamp terminals. This emergency stop / shutdown button, also called EMS (Emergency Machine Stop) and EMO (Emergency Off) is easily installed into a standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance thanks to a clear color and a prominent 40mm mushroom shape. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Its plastic bezel makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation.
Additional Information
Contacts Material:
silver alloy (Ag/Ni)
Key Withdrawal Position:
center
Nema Degree Of Protection:
NEMA 13 || NEMA 4X
Device Presentation:
complete product
Ip Degree Of Protection:
IP66 IEC 60529 || IP67 || IP69 || IP69K
Rohs Exemption Information:
Yes
Device Short Name:
XB5
Depth:
100 mm
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Mounting Diameter:
22 mm
Environmental Disclosure:
ENVPEP1710010EN
[Ie] Rated Operational Current:
3 A 240 V, AC-15, A600 IEC 60947-5-1 || 6 A 120 V, AC-15, A600 IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
Vibration Resistance:
5 gn 2-500 Hz)IEC 60068-2-6
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Shape Of Signaling Unit Head:
round
Width:
40 mm
Product Or Component Type:
emergency stop push-button || emergency switching off push-button
Protective Treatment:
TH
Connections - Terminals:
screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1
Mechanical Durability:
300000 cycles
Positive Opening:
with IEC 60947-5-1 appendix K
Sustainable Offer Status:
Green Premium product
Electrical Reliability:
λ < 10exp(-6) 5 V, 1 mA in clean environment IEC 60947-5-4 || λ < 10exp(-8) 17 V, 5 mA in clean environment IEC 60947-5-4
Standards:
JIS C8201-5-1 || IEC 60947-5-5 || IEC 60947-1 || IEC 60947-5-1 || CSA C22.2 No 14 || ISO 13850 || IEC 60204-1 || UL 508 || IEC 60364-5-53 || IEC 60947-5-4 || JIS C8201-1
Short-Circuit Protection:
10 A cartridge fuse gG IEC 60947-5-1
Operator Profile:
red mushroom Ø 40 mm, unmarked
Reset:
key release
Mercury Free:
Yes
China Rohs Regulation:
X
Product Certifications:
DNV || CSA || UL Listed || LROS (Lloyds register of shipping) || BV || GL
Ambient Air Temperature For Operation:
-40-70 °C
Tightening Torque:
0.8-1.2 N.m IEC 60947-1
Bezel Material:
dark grey plastic
Shock Resistance:
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Ik Degree Of Protection:
IK03 IEC 50102
Type Of Operator:
trigger action and mechanical latching
Range Of Product:
Harmony XB5
[Ui] Rated Insulation Voltage:
600 V 3)IEC 60947-1
Height:
43 mm
Electrical Durability:
1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, DC-13,
Operating Travel:
1.5 mm NC changing electrical state) || 4.3 mm total travel)
Contact Operation:
slow-break
Net Weight:
0.075 kg
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Circularity Profile:
ENVEOLI1710010EN
Contacts Usage:
standard contacts
Type Of Keylock:
key 455
Overvoltage Category:
class II IEC 60536
[Uimp] Rated Impulse Withstand Voltage:
6 kV IEC 60947-1
Head Type:
standard
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Terminals Description Iso N°1:
(11-12)NC
Resistance To High Pressure Washer:
7000000 Pa 55 °C 0.1 m
Sale Per Indivisible Quantity:
1
Shape Of Screw Head:
cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm
Ambient Air Temperature For Storage:
-40-70 °C
[Ith] Conventional Free Air Thermal Current:
10 A IEC 60947-5-1
Fixing Collar Material:
plastic
