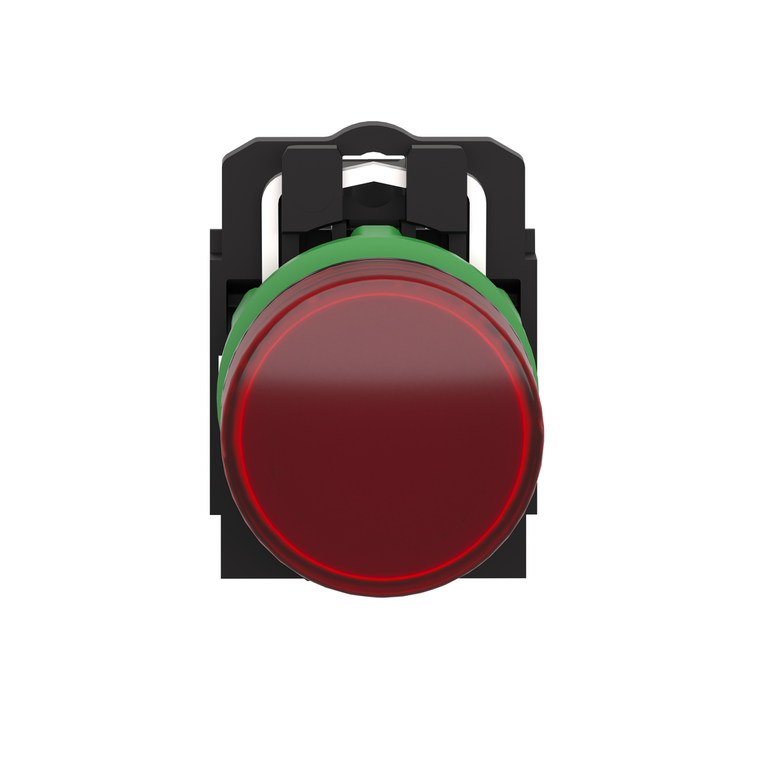

Schneider Electric XB5AV64 Direct Supply Pilot Light

(No reviews yet) Write a Review

Write a Review

Schneider Electric XB5AV64 Direct Supply Pilot Light

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

XB5AV64

UPC:

3389110903980

MPN:

Condition:

New

Ambient Air Temperature For Operation:

-40-55 °C

Cap/Operator Or Lens Colour:

red

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Device Short Name:

XB5

Protective Treatment:

TH

Ik Degree Of Protection:

IK05 IEC 50102

Terminals Description Iso N°1:

(X1-X2)PL

Mounting Diameter:

22 mm

Range Of Product:

Harmony XB5

Circularity Profile:

ENVEOLI1710010EN

Connections - Terminals:

screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1

Standards:

IEC 60947-1 || UL 508 || IEC 60947-5-4 || JIS C8201-5-1 || CSA C22.2 No 14 || IEC 60947-5-1 || JIS C8201-1

Sustainable Offer Status:

Green Premium product

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Ambient Air Temperature For Storage:

-40-70 °C

Vibration Resistance:

5 gn 12-500 Hz)IEC 60068-2-6

Electrical Shock Protection Class:

class II IEC 60536

China Rohs Regulation:

X

Net Weight:

0.037 kg

Fixing Collar Material:

plastic

Light Block Supply:

direct <2.4 W

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Environmental Disclosure:

ENVPEP1710010EN

Overvoltage Category:

class II IEC 60536

Light Source:

bulb not included

Shape Of Signaling Unit Head:

round

[Us] Rated Supply Voltage:

<= 250 V

Ip Degree Of Protection:

IP66 IEC 60529 || IP67 IEC 60529 || IP69 IEC 60529 || IP69K ISO 20653

Width:

30 mm

Nema Degree Of Protection:

NEMA 13 || NEMA 4X

Signalling Type:

steady

Product Certifications:

CSA || UL Listed

Bulb Base:

BA 9s

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Sale Per Indivisible Quantity:

1

[Ui] Rated Insulation Voltage:

250 V 3)IEC 60947-1

Warranty:

18 months

Light Source Colour:

red

Device Presentation:

complete product

Rohs Exemption Information:

Yes

Product Or Component Type:

pilot light

Operator Additional Information:

with plain lens

Height:

42 mm

Shock Resistance:

30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Mercury Free:

Yes

Bezel Material:

dark grey plastic

Head Type:

standard

Depth:

55 mm

Resistance To High Pressure Washer:

7000000 Pa 55 °C 0.1 m

[Uimp] Rated Impulse Withstand Voltage:

4 kV IEC 60947-1

Catalog:

View

Datasheet:

View
