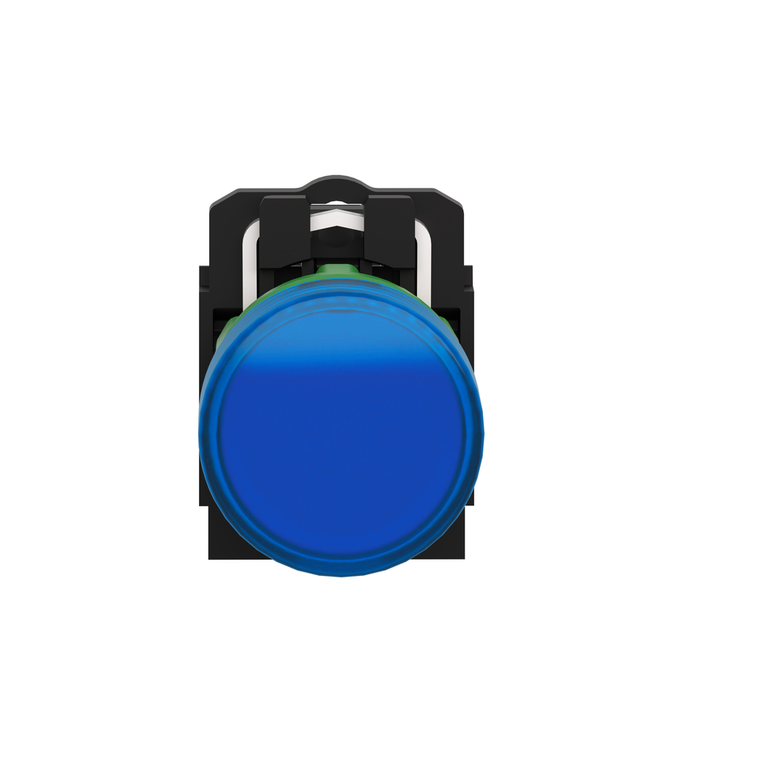

Schneider Electric XB5AVB6 Pilot Light, Complete, 24V, Blue

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric XB5AVB6 Pilot Light, Complete, 24V, Blue

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

XB5AVB6

UPC:

3389110136906

MPN:

Condition:

New

Sale Per Indivisible Quantity:

1

Resistance To Fast Transients:

2 kV IEC 61000-4-4

Product Or Component Type:

pilot light

Mercury Free:

Yes

Device Short Name:

XB5

Ip Degree Of Protection:

IP66 IEC 60529 || IP67 IEC 60529 || IP69 IEC 60529 || IP69K ISO 20653

Bezel Material:

dark grey plastic

Height:

42 mm

Supply Voltage Limits:

19.2-30 V DC || 21.6-26.4 V AC

Head Type:

standard

[Us] Rated Supply Voltage:

24 V AC/DC 50/60 Hz

Operator Additional Information:

with plain lens

Signalling Type:

steady

Service Life:

100000 h at rated voltage and 25 °C

Ambient Air Temperature For Operation:

-40-70 °C

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Ik Degree Of Protection:

IK05 IEC 50102

[Uimp] Rated Impulse Withstand Voltage:

4 kV IEC 60947-1

Rohs Exemption Information:

Yes

Sustainable Offer Status:

Green Premium product

Shock Resistance:

50 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 30 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Light Source:

universal LED

Fixing Collar Material:

plastic

Light Source Colour:

blue

Bulb Base:

integral LED

Connections - Terminals:

screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Cap/Operator Or Lens Colour:

blue

Nema Degree Of Protection:

NEMA 13 || NEMA 4X

Standards:

JIS C8201-5-1 || IEC 60947-1 || UL 508 || CSA C22.2 No 14 || IEC 60947-5-1 || IEC 60947-5-4 || JIS C8201-1

Product Certifications:

CSA || UL Listed

Electromagnetic Emission:

class B IEC 55011

Protective Treatment:

TH

Resistance To Electrostatic Discharge:

6 kV on contact (on metal parts) IEC 61000-4-2 || 8 kV in free air (in insulating parts) IEC 61000-4-2

Resistance To High Pressure Washer:

7000000 Pa 55 °C 0.1 m

Current Consumption:

18 mA

[Ui] Rated Insulation Voltage:

250 V 3)IEC 60947-1

Surge Withstand:

1 kV IEC 61000-4-5

Width:

30 mm

Compatibility Code:

XB5

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Shape Of Signaling Unit Head:

round

Warranty:

18 months

Terminals Description Iso N°1:

(X1-X2)PL

Vibration Resistance:

5 gn 12-500 Hz)IEC 60068-2-6

Ambient Air Temperature For Storage:

-40-70 °C

Circularity Profile:

ENVEOLI1710010EN

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Electromagnetic Compatibility:

electrostatic discharge - test level: 6 kV (on contact (on metal parts)) conforming to IEC 61000-4-2 || electrostatic discharge - test level: 8 kV (in free air (in insulating parts)) conforming to IEC 61000-4-2 || electromagnetic emission class B con

Range Of Product:

Harmony XB5

China Rohs Regulation:

X

Resistance To Electromagnetic Fields:

10 V/m IEC 61000-4-3

Gcr Bridge:

XB5AVCUST03

Depth:

54 mm

Environmental Disclosure:

ENVPEP1710010EN

Net Weight:

0.038 kg

Device Presentation:

complete product

Important Message:

A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks

Overvoltage Category:

class II IEC 60536

Mounting Diameter:

22 mm
