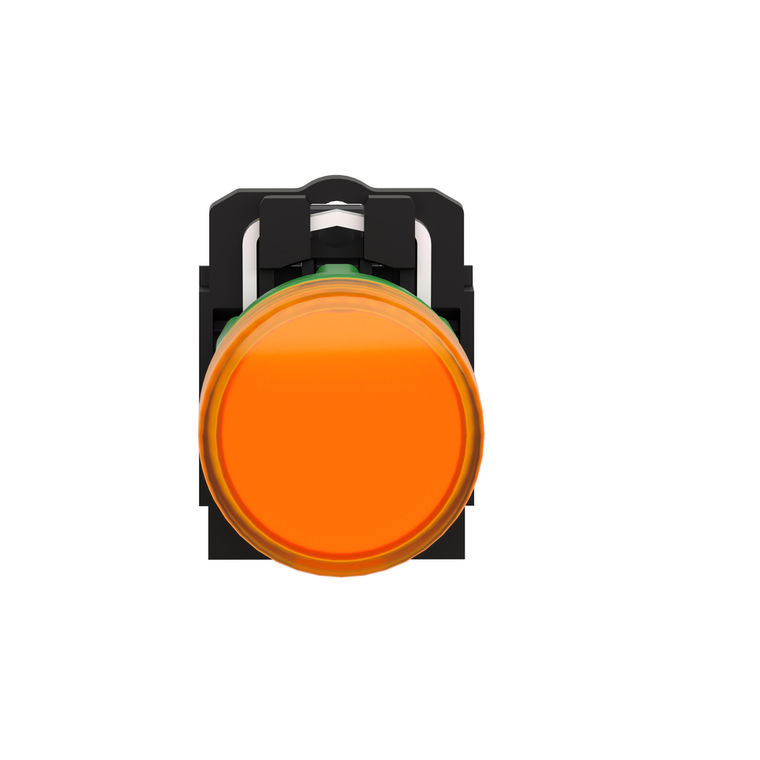

Schneider Electric XB5AVG5 Pilot Light, Complete, 110-120V, Orange

(No reviews yet) Write a Review

Write a Review

Schneider Electric XB5AVG5 Pilot Light, Complete, 110-120V, Orange

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

XB5AVG5

UPC:

3389110903836

MPN:

Condition:

New

Light Source Colour:

orange

Light Source:

universal LED

Bezel Material:

dark grey plastic

Surge Withstand:

1 kV IEC 61000-4-5

Device Short Name:

XB5

Resistance To High Pressure Washer:

7000000 Pa 55 °C 0.1 m

Width:

30 mm

Supply Voltage Limits:

100-132 V AC

Environmental Disclosure:

ENVPEP1710010EN

Sustainable Offer Status:

Green Premium product

Ik Degree Of Protection:

IK05 IEC 50102

Bulb Base:

integral LED

Circularity Profile:

ENVEOLI1710010EN

Range Of Product:

Harmony XB5

Shock Resistance:

50 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 30 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Resistance To Electrostatic Discharge:

6 kV on contact (on metal parts) IEC 61000-4-2 || 8 kV in free air (in insulating parts) IEC 61000-4-2

Depth:

54 mm

[Uimp] Rated Impulse Withstand Voltage:

4 kV IEC 60947-1

Head Type:

standard

Standards:

CSA C22.2 No 14 || UL 508 || IEC 60947-5-1 || JIS C8201-5-1 || IEC 60947-1 || IEC 60947-5-4 || JIS C8201-1

Overvoltage Category:

class II IEC 60536

Terminals Description Iso N°1:

(X1-X2)PL

[Ui] Rated Insulation Voltage:

250 V 3)IEC 60947-1

Shape Of Signaling Unit Head:

round

Resistance To Electromagnetic Fields:

10 V/m IEC 61000-4-3

Gcr Bridge:

XB5AVCUST04

Net Weight:

0.038 kg

[Us] Rated Supply Voltage:

110...120 V AC 50/60 Hz

Warranty:

18 months

Service Life:

100000 h at rated voltage and 25 °C

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Ip Degree Of Protection:

IP66 IEC 60529 || IP67 IEC 60529 || IP69 IEC 60529 || IP69K ISO 20653

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Nema Degree Of Protection:

NEMA 13 || NEMA 4X

Current Consumption:

14 mA

Connections - Terminals:

screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1

Electromagnetic Emission:

class B IEC 55011

Electromagnetic Compatibility:

electrostatic discharge - test level: 6 kV (on contact (on metal parts)) conforming to IEC 61000-4-2 || electrostatic discharge - test level: 8 kV (in free air (in insulating parts)) conforming to IEC 61000-4-2 || electromagnetic emission class B con

Important Message:

A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks

Mercury Free:

Yes

Rohs Exemption Information:

Yes

Fixing Collar Material:

plastic

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Ambient Air Temperature For Storage:

-40-70 °C

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Resistance To Fast Transients:

2 kV IEC 61000-4-4

Ambient Air Temperature For Operation:

-40-70 °C

Compatibility Code:

XB5

Vibration Resistance:

5 gn 12-500 Hz)IEC 60068-2-6

Height:

42 mm

Sale Per Indivisible Quantity:

1

China Rohs Regulation:

X

Product Or Component Type:

pilot light

Device Presentation:

complete product

Mounting Diameter:

22 mm

Operator Additional Information:

with plain lens

Protective Treatment:

TH

Product Certifications:

CSA || UL Listed

Signalling Type:

steady

Cap/Operator Or Lens Colour:

orange
