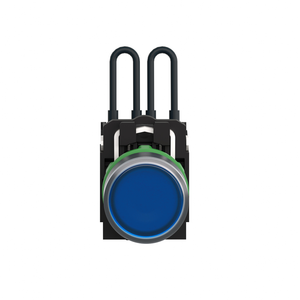

Schneider Electric XB5AW21B5 Plastic Push-To-Test Pilot Light 24V Whi

Schneider Electric XB5AW21B5 Plastic Push-To-Test Pilot Light 24V Whi

Schneider Electric
SKU:
XB5AW21B5
|
UPC:
3606489420680
Availability:
Contact us to confirm availability and lead times.
$178.50
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
This Harmony XB5, push-to-test pilot light white is supplied with 24V AC/DC. Under normal conditions, the push-to-test pilot light is providing a best-in-class illumination to service your panel signalisation functions. During maintenance, one push on the head is enough to test the lamp and to confirm its good health. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.
Additional Information
Service Life:
1.5 year(s)
Eu Rohs Directive:
Under investigation
Net Weight:
0.047 kg
Ip Degree Of Protection:
IP66 IEC 60529 || IP67 || IP69 || IP69K
Ambient Air Temperature For Operation:
-40-70 °C
Vibration Resistance:
5 gn 12-500 Hz)IEC 60068-2-6
[Ui] Rated Insulation Voltage:
600 V 3)EN 60947-1
Light Source:
universal LED
Overvoltage Category:
class II IEC 60536
Ik Degree Of Protection:
IK05 IEC 50102
Shock Resistance:
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Current Consumption:
18 mA
Protective Treatment:
TH
Important Message:
A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
Ambient Air Temperature For Storage:
-40-70 °C
Range Of Product:
Harmony XB5
Depth:
55 mm
Fixing Collar Material:
plastic
Resistance To High Pressure Washer:
7000000 Pa 55 °C 0.1 m
Mounting Diameter:
22 mm
Product Or Component Type:
push-to-test pilot light
Width:
30 mm
Light Source Colour:
white
Bezel Material:
plastic
[Uimp] Rated Impulse Withstand Voltage:
6 kV EN 60947-1
Shape Of Signaling Unit Head:
round
Electrical Shock Protection Class:
class II IEC 60536
Product Certifications:
GL || DNV || LROS (Lloyds register of shipping) || CSA || UL Listed || BV
Standards:
EN/IEC 60947-5-4 || UL 508 || GB 14048.5 || EN/IEC 60947-5-1 || JIS C8201-5-1 || CSA C22.2 No 14 || EN/IEC 60947-1 || JIS C8201-1
Connections - Terminals:
screw clamp terminals, <= 2 x 1.5 mm² with cable end EN/IEC 60947-1 || screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end EN/IEC 60947-1
Cap/Operator Or Lens Colour:
white
Device Short Name:
XB5
Tightening Torque:
0.8-1.2 N.m
Height:
42 mm
Signalling Type:
steady
[Us] Rated Supply Voltage:
24 V AC/DC 50/60 Hz
Embedding Depth:
46 mm
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Nema Degree Of Protection:
NEMA 13 || NEMA 4X
Sale Per Indivisible Quantity:
1
Surge Withstand:
1 kV
