Schneider Electric

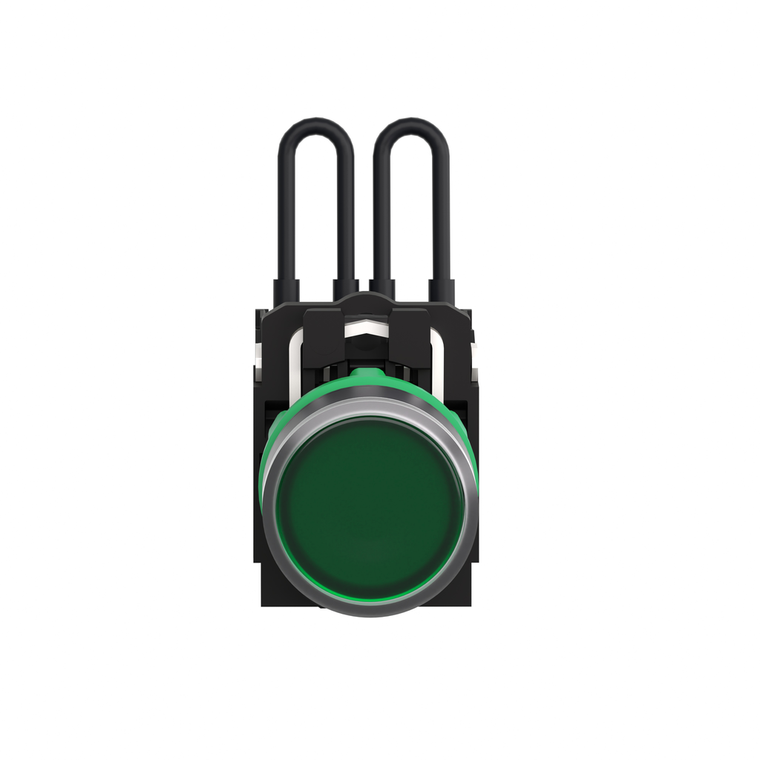

Schneider Electric XB5AW23B5 Plastic Push-To-Test Pilot Light 24V Gre

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric XB5AW23B5 Plastic Push-To-Test Pilot Light 24V Gre

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

XB5AW23B5

UPC:

3606489420697

MPN:

Condition:

New

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Light Source:

universal LED

Tightening Torque:

0.8-1.2 N.m

Ambient Air Temperature For Operation:

-40-70 °C

Surge Withstand:

1 kV

Embedding Depth:

46 mm

Mounting Diameter:

22 mm

Connections - Terminals:

screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1

[Us] Rated Supply Voltage:

24 V AC/DC 50/60 Hz

Resistance To High Pressure Washer:

7000000 Pa 55 °C 0.1 m

Protective Treatment:

TH

Signalling Type:

steady

Shape Of Signaling Unit Head:

round

Eu Rohs Directive:

Under investigation

Electrical Shock Protection Class:

class II IEC 60536

Service Life:

1.5 year(s)

Product Certifications:

LROS (Lloyds register of shipping) || BV || GL || DNV || UL Listed || CSA

Sale Per Indivisible Quantity:

1

[Uimp] Rated Impulse Withstand Voltage:

6 kV IEC 60947-1

[Ui] Rated Insulation Voltage:

600 V 3)IEC 60947-1

Device Short Name:

XB5

Shock Resistance:

30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Overvoltage Category:

class II IEC 60536

Nema Degree Of Protection:

NEMA 13 || NEMA 4X

Bezel Material:

plastic

Depth:

55 mm

Fixing Collar Material:

plastic

Product Or Component Type:

push-to-test pilot light

Range Of Product:

Harmony XB5

Net Weight:

0.047 kg

Light Source Colour:

green

Width:

30 mm

Ip Degree Of Protection:

IP66 IEC 60529 || IP67 || IP69 || IP69K

Standards:

IEC 60947-5-4 || UL 508 || GB 14048.5 || IEC 60947-5-1 || JIS C8201-5-1 || CSA C22.2 No 14 || IEC 60947-1 || JIS C8201-1

Current Consumption:

14 mA || 18 mA

Important Message:

A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks

Ambient Air Temperature For Storage:

-40-70 °C

Ik Degree Of Protection:

IK05 IEC 50102

Cap/Operator Or Lens Colour:

green

Height:

42 mm

Vibration Resistance:

5 gn 12-500 Hz)IEC 60068-2-6

Datasheet:

View
