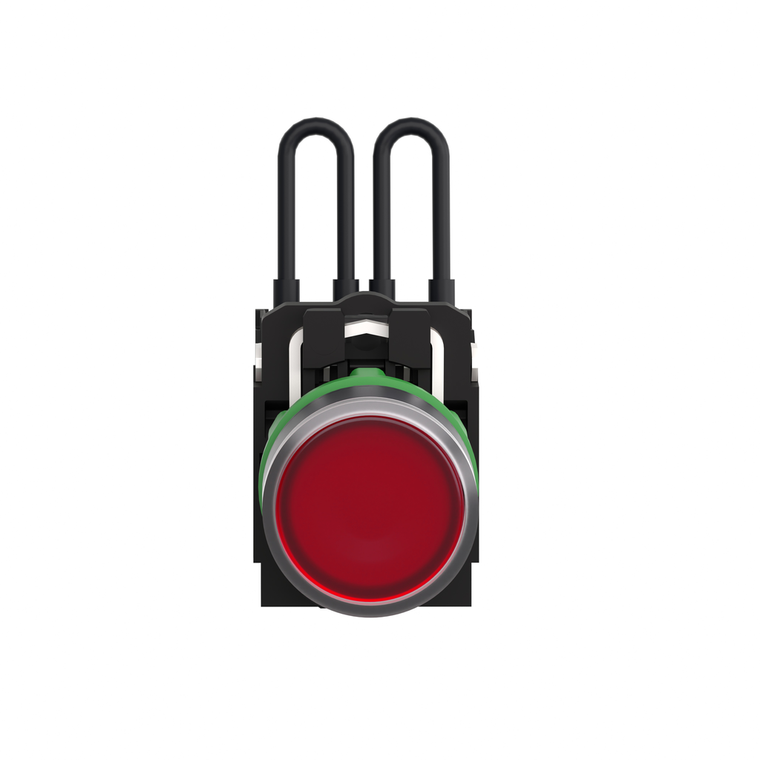

Schneider Electric XB5AW24G5 Plastic Push-To-Test Pilot Light 110 120

Schneider Electric XB5AW24G5 Plastic Push-To-Test Pilot Light 110 120

Schneider Electric
SKU:
XB5AW24G5
|
UPC:
3606489420765
$119.00
(No reviews yet) Write a Review
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
This Harmony XB5, push-to-test pilot light red is supplied with 110V to 120V AC. Under normal conditions, the push-to-test pilot light is providing a best-in-class illumination to service your panel signalisation functions. During maintenance, one push on the head is enough to test the lamp and to confirm its good health. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.
Additional Information
Resistance To High Pressure Washer:
7000000 Pa 55 °C 0.1 m
Important Message:
A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
Mounting Diameter:
22 mm
Net Weight:
0.047 kg
Fixing Collar Material:
plastic
Ip Degree Of Protection:
IP66 IEC 60529 || IP67 || IP69 || IP69K
Device Short Name:
XB5
Height:
42 mm
Product Certifications:
UL Listed || CSA || GL || BV || DNV || LROS (Lloyds register of shipping)
Standards:
JIS C8201-5-1 || GB 14048.5 || UL 508 || IEC 60947-5-1 || CSA C22.2 No 14 || IEC 60947-1 || IEC 60947-5-4 || JIS C8201-1
Shape Of Signaling Unit Head:
round
Cap/Operator Or Lens Colour:
red
Width:
30 mm
Connections - Terminals:
screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1
Shock Resistance:
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Bezel Material:
plastic
Product Or Component Type:
push-to-test pilot light
Nema Degree Of Protection:
NEMA 13 || NEMA 4X
[Ui] Rated Insulation Voltage:
600 V 3)IEC 60947-1
[Us] Rated Supply Voltage:
110...120 V AC 50/60 Hz
Light Source:
universal LED
Eu Rohs Directive:
Under investigation
Signalling Type:
steady
Embedding Depth:
46 mm
[Uimp] Rated Impulse Withstand Voltage:
6 kV IEC 60947-1
Service Life:
1.5 year(s)
Sale Per Indivisible Quantity:
1
Protective Treatment:
TH
Ambient Air Temperature For Operation:
-40-70 °C
Light Source Colour:
red
Ambient Air Temperature For Storage:
-40-70 °C
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Surge Withstand:
1 kV
Ik Degree Of Protection:
IK05 IEC 50102
Tightening Torque:
0.8-1.2 N.m
Vibration Resistance:
5 gn 12-500 Hz)IEC 60068-2-6
Electrical Shock Protection Class:
class II IEC 60536
Range Of Product:
Harmony XB5
Current Consumption:
14 mA
Overvoltage Category:
class II IEC 60536
Depth:
55 mm
