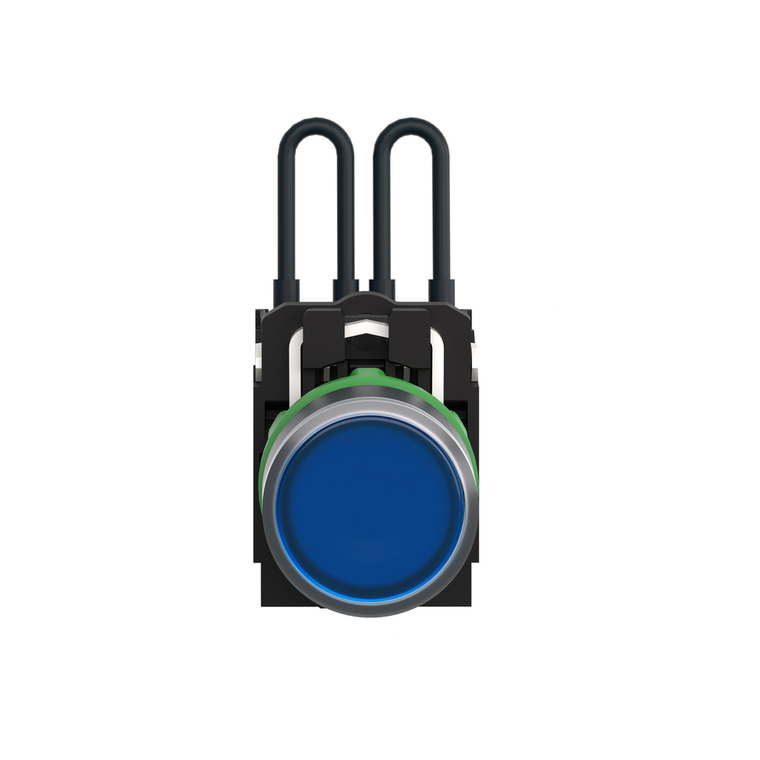

Schneider Electric XB5AW26B5 Plastic Push-To-Test Pilot Light 24V Blu

(No reviews yet) Write a Review

Write a Review

Schneider Electric XB5AW26B5 Plastic Push-To-Test Pilot Light 24V Blu

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

XB5AW26B5

UPC:

3606489420727

MPN:

Condition:

New

Ik Degree Of Protection:

IK05 IEC 50102

Electrical Shock Protection Class:

class II IEC 60536

Ambient Air Temperature For Operation:

-40-70 °C

Standards:

UL 508 || IEC 60947-5-4 || IEC 60947-1 || JIS C8201-5-1 || CSA C22.2 No 14 || IEC 60947-5-1 || GB 14048.5 || JIS C8201-1

Current Consumption:

18 mA

[Uimp] Rated Impulse Withstand Voltage:

6 kV IEC 60947-1

Connections - Terminals:

screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1

Net Weight:

0.047 kg

[Us] Rated Supply Voltage:

24 V AC/DC 50/60 Hz

Bezel Material:

plastic

Nema Degree Of Protection:

NEMA 13 || NEMA 4X

Width:

30 mm

Service Life:

1.5 year(s)

Cap/Operator Or Lens Colour:

blue

Surge Withstand:

1 kV

Product Certifications:

BV || GL || CSA || UL Listed || LROS (Lloyds register of shipping) || DNV

Signalling Type:

steady

Height:

42 mm

Sale Per Indivisible Quantity:

1

Depth:

55 mm

Overvoltage Category:

class II IEC 60536

Tightening Torque:

0.8-1.2 N.m

Shock Resistance:

30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Vibration Resistance:

5 gn 12-500 Hz)IEC 60068-2-6

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Ip Degree Of Protection:

IP66 IEC 60529 || IP67 || IP69 || IP69K

Product Or Component Type:

push-to-test pilot light

Range Of Product:

Harmony XB5

Eu Rohs Directive:

Under investigation

Mounting Diameter:

22 mm

Shape Of Signaling Unit Head:

round

[Ui] Rated Insulation Voltage:

600 V 3)IEC 60947-1

Device Short Name:

XB5

Important Message:

A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks

Resistance To High Pressure Washer:

7000000 Pa 55 °C 0.1 m

Embedding Depth:

46 mm

Protective Treatment:

TH

Light Source:

universal LED

Light Source Colour:

blue

Fixing Collar Material:

plastic

Ambient Air Temperature For Storage:

-40-70 °C

Datasheet:

View
