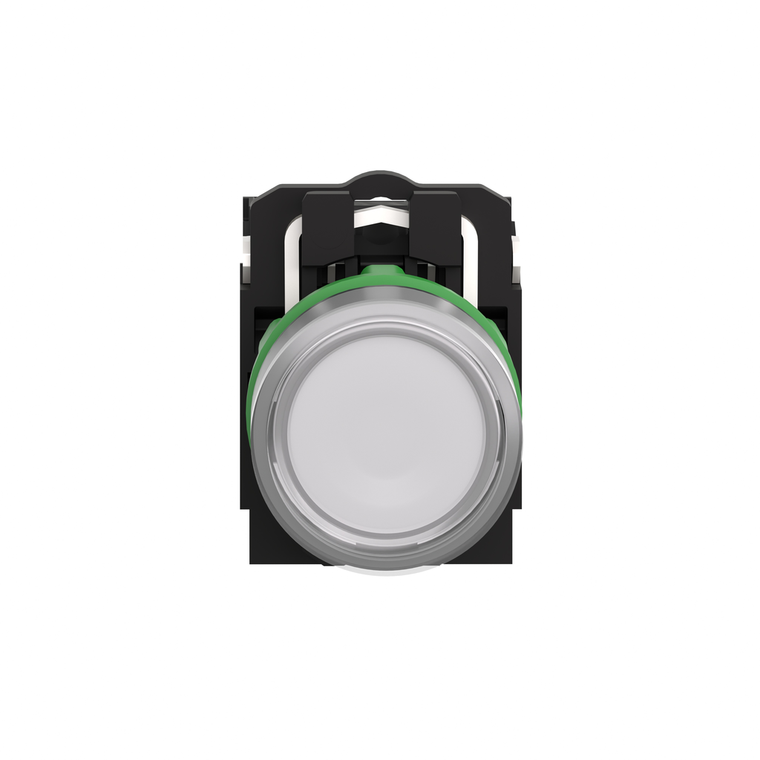

Schneider Electric XB5AW31G5C0 Illuminated Pushbutton

(No reviews yet) Write a Review

Write a Review

Schneider Electric XB5AW31G5C0 Illuminated Pushbutton

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

XB5AW31G5C0

UPC:

3606489759810

MPN:

Condition:

New

Protective Treatment:

TH

Electrical Durability:

1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, DC-13,

Net Weight:

0.056 kg

Device Short Name:

XB5

Rohs Exemption Information:

Yes

Product Certifications:

GL || UL Listed || BV || DNV || LROS (Lloyds register of shipping) || CSA

Vibration Resistance:

5 gn 2-500 Hz)IEC 60068-2-6

Overvoltage Category:

class II IEC 60536

Fixing Collar Material:

plastic

Nema Degree Of Protection:

NEMA 13 || NEMA 4X

Operator Profile:

white flush, unmarked

Height:

42 mm

[Ui] Rated Insulation Voltage:

600 V 3)IEC 60947-1

Sale Per Indivisible Quantity:

1

Mechanical Durability:

10000000 cycles

Supply Voltage Limits:

100-132 V AC

Signalling Type:

steady

Ip Degree Of Protection:

IP66 IEC 60529 || IP67

Shape Of Screw Head:

cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm

Type Of Operator:

spring return

Device Presentation:

complete product

Resistance To Fast Transients:

2 kV IEC 61000-4-4

[Us] Rated Supply Voltage:

110...120 V AC 50/60 Hz

Contact Operation:

slow-break

Important Message:

A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks

Shape Of Signaling Unit Head:

round

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Ik Degree Of Protection:

IK05 IEC 50102

Positive Opening:

with IEC 60947-5-1 appendix K

Standards:

JIS C8201-5-1 || UL 508 || IEC 60947-5-4 || IEC 60947-5-1 || CSA C22.2 No 14 || IEC 60947-1 || JIS C8201-1

Contacts Type And Composition:

1 NO + 1 NC

Short-Circuit Protection:

10 A cartridge fuse gG IEC 60947-5-1

Ambient Air Temperature For Operation:

-40-70 °C

Range Of Product:

Harmony XB5

[Ie] Rated Operational Current:

3 A 240 V, AC-15, A600 IEC 60947-5-1 || 6 A 120 V, AC-15, A600 IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 IEC 60947-5-1

Electromagnetic Emission:

class B IEC 55011

Operating Force:

3.5 N NC changing electrical state || 3.8 N

China Rohs Regulation:

X

Resistance To High Pressure Washer:

7000000 Pa 55 °C 0.1 m

Head Type:

standard

Contacts Usage:

standard contacts

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Bezel Material:

plastic colour plated grey

Connections - Terminals:

screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1

Surge Withstand:

1 kV IEC 61000-4-5

Service Life:

100000 h at rated voltage and 25 °C

Resistance To Electrostatic Discharge:

6 kV on contact (on metal parts) IEC 61000-4-2 || 8 kV in free air (in insulating parts) IEC 61000-4-2

Electrical Reliability:

λ < 10exp(-6) 5 V, 1 mA in clean environment IEC 60947-5-4 || λ < 10exp(-8) 17 V, 5 mA in clean environment IEC 60947-5-4

[Ith] Conventional Free Air Thermal Current:

10 A IEC 60947-5-1

Cap/Operator Or Lens Colour:

white

[Uimp] Rated Impulse Withstand Voltage:

6 kV IEC 60947-1

Resistance To Electromagnetic Fields:

10 V/m IEC 61000-4-3

Light Source:

universal LED

Width:

30 mm

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Current Consumption:

14 mA

Product Or Component Type:

illuminated push-button

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Tightening Torque:

0.8-1.2 N.m IEC 60947-1

Contacts Material:

silver alloy (Ag/Ni)

Operator Additional Information:

with plain lens

Depth:

57 mm

Operating Travel:

1.5 mm NC changing electrical state) || 2.6 mm NO changing electrical state) || 4.3 mm total travel)

Terminals Description Iso N°1:

(13-14)NO || (21-22)NC

Shock Resistance:

30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Mounting Diameter:

22 mm

Mercury Free:

Yes

Ambient Air Temperature For Storage:

-40-70 °C

Bulb Base:

integral LED
