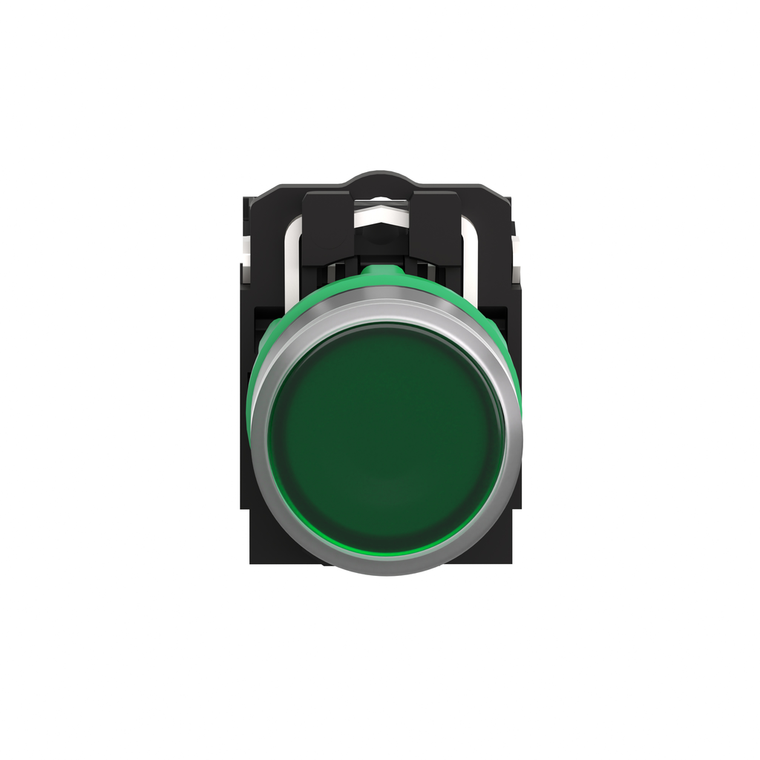

Schneider Electric XB5AW33G5C0 Illuminated Pushbutton

(No reviews yet) Write a Review

Write a Review

Schneider Electric XB5AW33G5C0 Illuminated Pushbutton

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

XB5AW33G5C0

UPC:

3606489759933

MPN:

Condition:

New

Positive Opening:

with IEC 60947-5-1 appendix K

Contacts Type And Composition:

1 NO + 1 NC

Ik Degree Of Protection:

IK05 IEC 50102

Mechanical Durability:

10000000 cycles

Terminals Description Iso N°1:

(13-14)NO || (21-22)NC

Mercury Free:

Yes

Range Of Product:

Harmony XB5

[Uimp] Rated Impulse Withstand Voltage:

6 kV IEC 60947-1

Vibration Resistance:

5 gn 2-500 Hz)IEC 60068-2-6

Protective Treatment:

TH

Type Of Operator:

spring return

Resistance To Fast Transients:

2 kV IEC 61000-4-4

China Rohs Regulation:

X

Cap/Operator Or Lens Colour:

green

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Device Presentation:

complete product

Nema Degree Of Protection:

NEMA 13 || NEMA 4X

Ambient Air Temperature For Storage:

-40-70 °C

Signalling Type:

steady

Electromagnetic Emission:

class B IEC 55011

Connections - Terminals:

screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1

Rohs Exemption Information:

Yes

Ip Degree Of Protection:

IP66 IEC 60529 || IP67

Shock Resistance:

30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Standards:

IEC 60947-5-1 || IEC 60947-1 || IEC 60947-5-4 || UL 508 || JIS C8201-5-1 || CSA C22.2 No 14 || JIS C8201-1

Height:

42 mm

[Us] Rated Supply Voltage:

110...120 V AC 50/60 Hz

Electrical Reliability:

λ < 10exp(-6) 5 V, 1 mA in clean environment IEC 60947-5-4 || λ < 10exp(-8) 17 V, 5 mA in clean environment IEC 60947-5-4

Device Short Name:

XB5

Depth:

57 mm

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Bezel Material:

plastic colour plated grey

Service Life:

100000 h at rated voltage and 25 °C

Operating Travel:

1.5 mm NC changing electrical state) || 2.6 mm NO changing electrical state) || 4.3 mm total travel)

Product Certifications:

DNV || CSA || GL || LROS (Lloyds register of shipping) || UL Listed || BV

Short-Circuit Protection:

10 A cartridge fuse gG IEC 60947-5-1

Shape Of Signaling Unit Head:

round

Width:

30 mm

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Resistance To Electrostatic Discharge:

6 kV on contact (on metal parts) IEC 61000-4-2 || 8 kV in free air (in insulating parts) IEC 61000-4-2

Tightening Torque:

0.8-1.2 N.m IEC 60947-1

Surge Withstand:

1 kV IEC 61000-4-5

Current Consumption:

14 mA

Ambient Air Temperature For Operation:

-40-70 °C

Product Or Component Type:

illuminated push-button

Shape Of Screw Head:

cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm

[Ui] Rated Insulation Voltage:

600 V 3)IEC 60947-1

Sale Per Indivisible Quantity:

1

Bulb Base:

integral LED

Net Weight:

0.056 kg

Light Source:

universal LED

[Ith] Conventional Free Air Thermal Current:

10 A IEC 60947-5-1

Overvoltage Category:

class II IEC 60536

Head Type:

standard

Operator Additional Information:

with plain lens

Operator Profile:

green flush, unmarked

Contacts Material:

silver alloy (Ag/Ni)

Resistance To Electromagnetic Fields:

10 V/m IEC 61000-4-3

Contacts Usage:

standard contacts

Contact Operation:

slow-break

Important Message:

A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Operating Force:

3.5 N NC changing electrical state || 3.8 N

[Ie] Rated Operational Current:

3 A 240 V, AC-15, A600 IEC 60947-5-1 || 6 A 120 V, AC-15, A600 IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 IEC 60947-5-1

Electrical Durability:

1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, DC-13,

Fixing Collar Material:

plastic

Supply Voltage Limits:

100-132 V AC

Resistance To High Pressure Washer:

7000000 Pa 55 °C 0.1 m

Mounting Diameter:

22 mm
